RUGGEDCOM RX1500
Installation Manual, 10/2021, C79000-G8976-1053-21
Remove the CF card access panel.
2
3
Ejector Button
1
CompactFlash Card
2
Access Panel
3

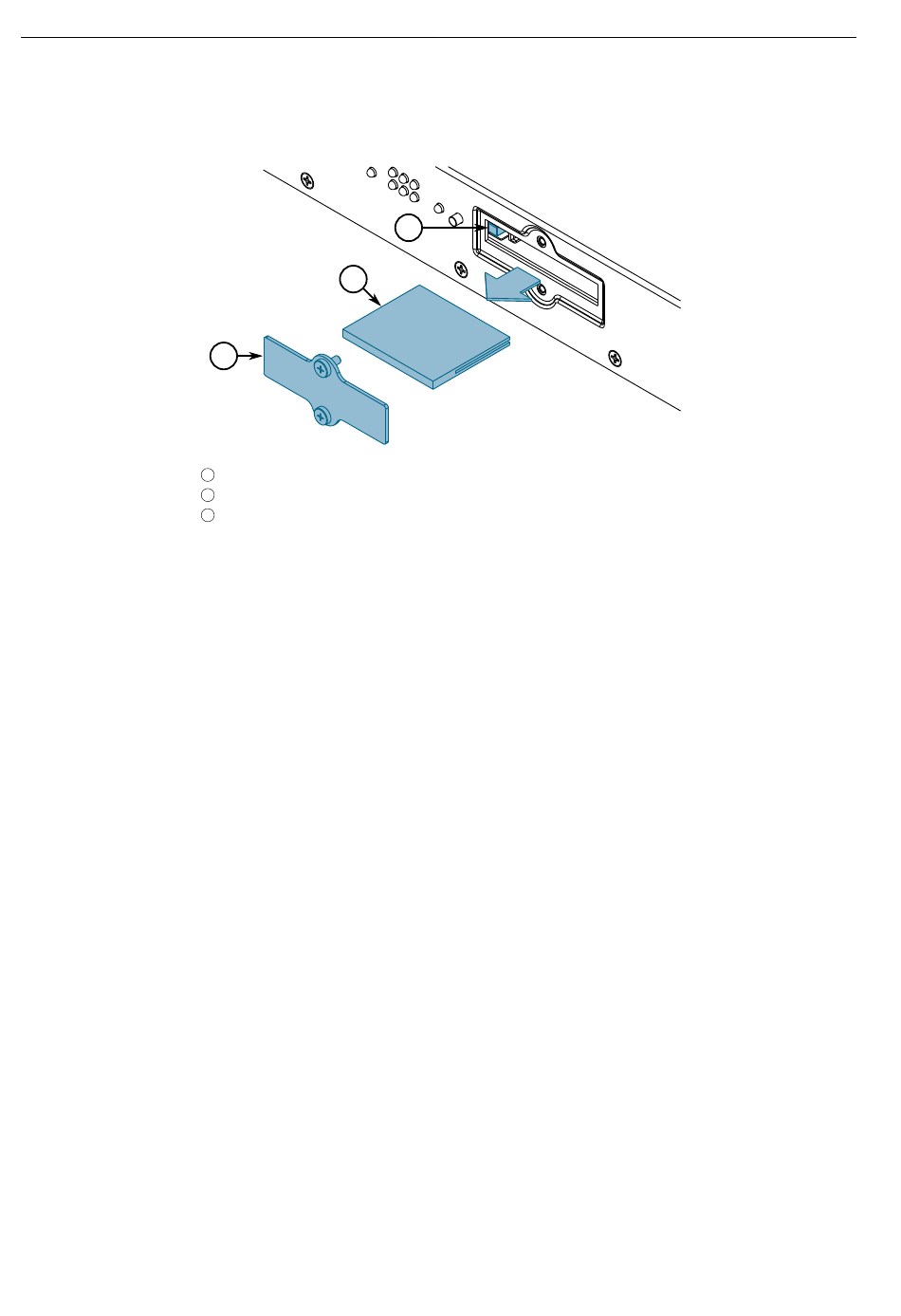

Figure 3.4
Removing the CF Card
Press the ejector button to the left of the CF card and then pull the card out.
Secure the CF card access panel to the chassis.
3.3 Accessing the CompactFlash Card
1
