4.4 Installing/Removing Power Modules
3.
Insert the new module into the slot.
Figure 4.3
4.
Tighten the screws to secure the module.
5.
[Optional] If necessary, install the device in the rack.
4.4
Installing/Removing Power Modules
The RUGGEDCOM RX1510 supports dual redundant power supply modules.
1
42
All manuals and user guides at all-guides.com

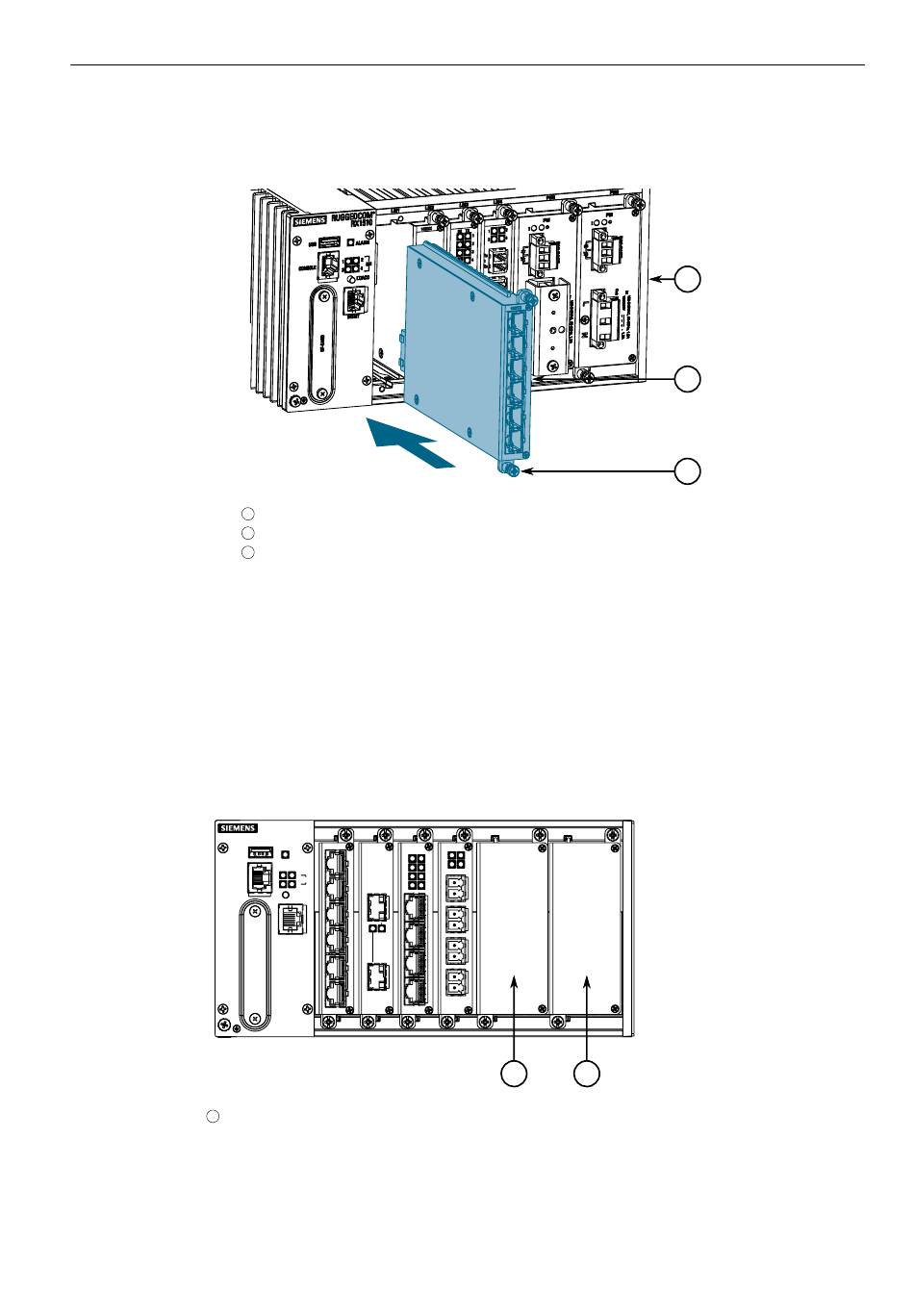

Module
1
Chassis
2
Screw
3
Installing a Module
Slot PS1
1
2
Installation Manual, 04/2021, C79000-G8976-1055-20
1
2
3
