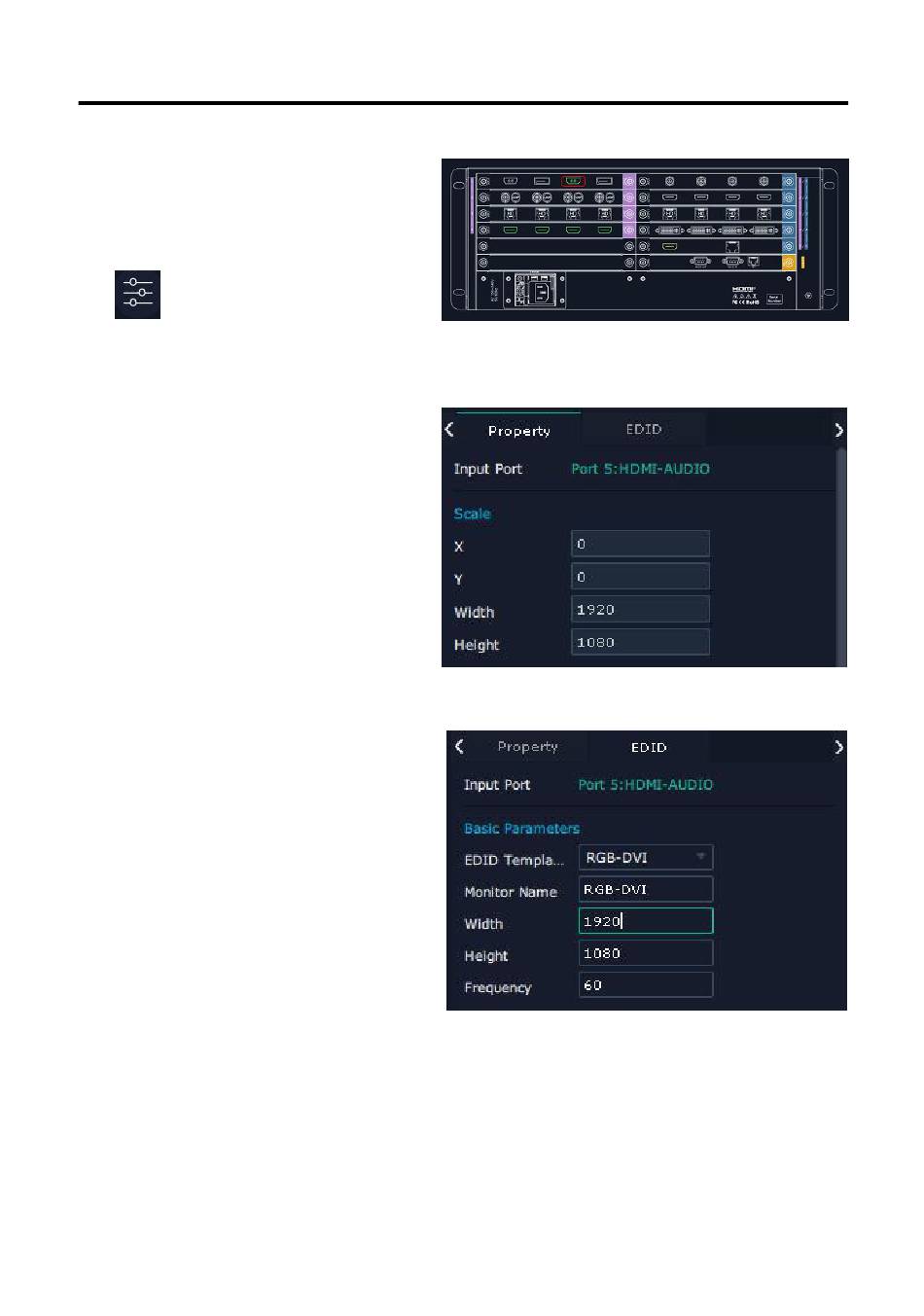

Input Setting
Click any input port in purple area, the board where
the port locates is selected. Users can do settings to
the board now. A red rectangle flashes around the
chosen port when it is clicked.
Click to open <Property>and<EDID>
Property Setting
Input Port：chosen port
Scale:
X/Y：the starting horizontal and vertical position
Width/Height : the horizontal and vertical size of
scale
EDID
Input Port：chosen port
Basic Parameters:
EDID Template：RGB-DVI or RGB-HDMI
Monitor Name：type the monitor name
Width/Height/Frequency： type in custom parameters
to meet your needs.
Q2's modules which support EDID are as follows:
● HDMI Input Module (with video)
● HDMI Input Module
● DVI-M Input Module
● DVI-I Input Module
● 4K@60 Input Mdule
● 4K@30 Input Module
Order Codes of module refer to 4.2
