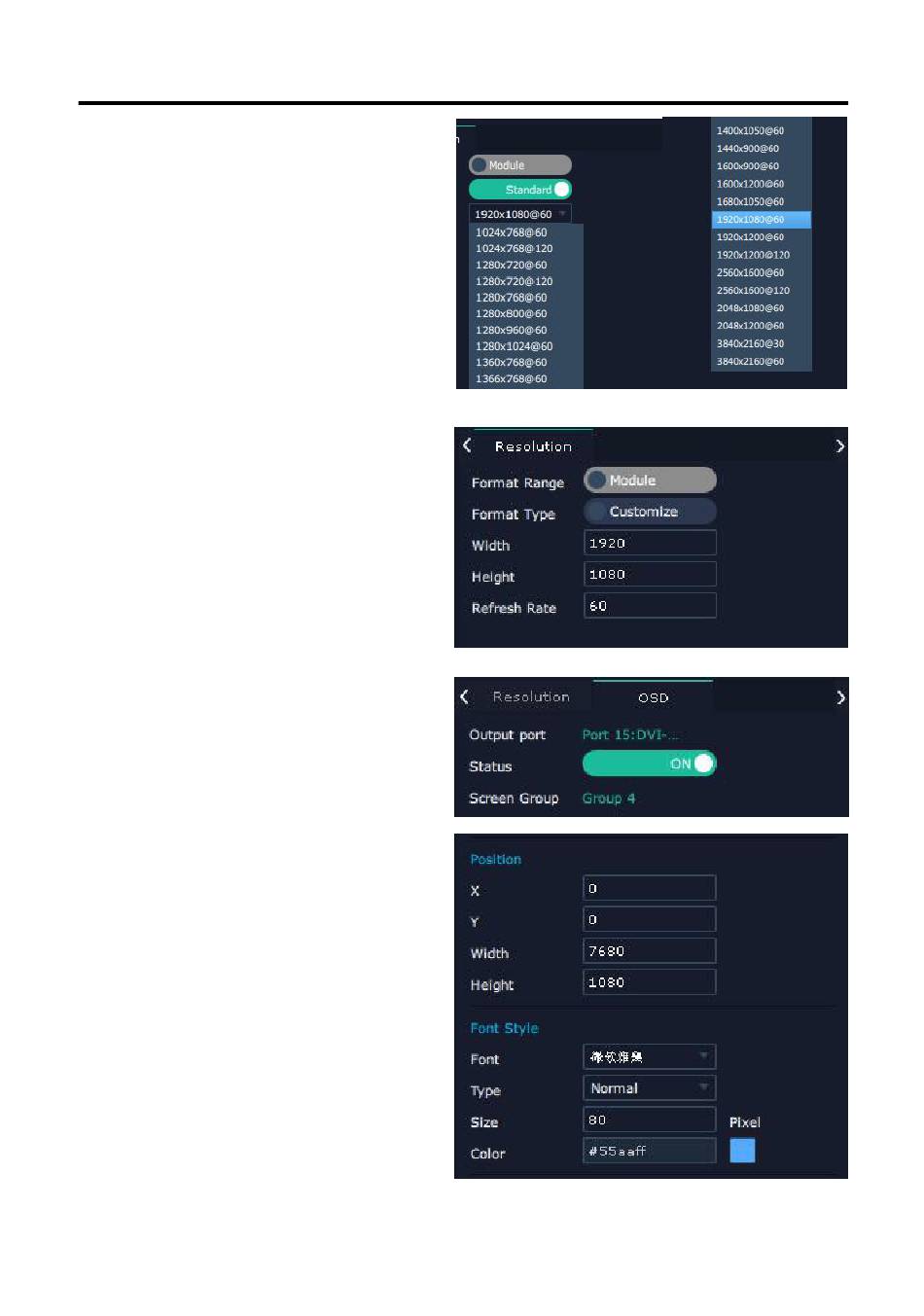

Standard Resolutions can be chosen as shown in the
right figure.
Customize Resolution
Q2 supports to customize output resolutions.
Click any output port and type in width,Height and
Refresh Rate.
OSD:
Q2 module which supports OSD as shown below:
● 2K DVI Output Module （ With OSD and background）
● 2K HDMI Output Module(with OSD and
background）
Order Codes refer to 4.2
Output port : current output port
Status : ON/OFF OSD
Screen Group : current group
X/Y：the starting horizontal and vertical position
Width/Height : the horizontal and vertical size of the
text
Font: font of the text,all fonts installed in the
computer is available
Font Type : Normal,Italic,Bold,Bold Italic
Font size : 0-300 pixels
Color：font color
