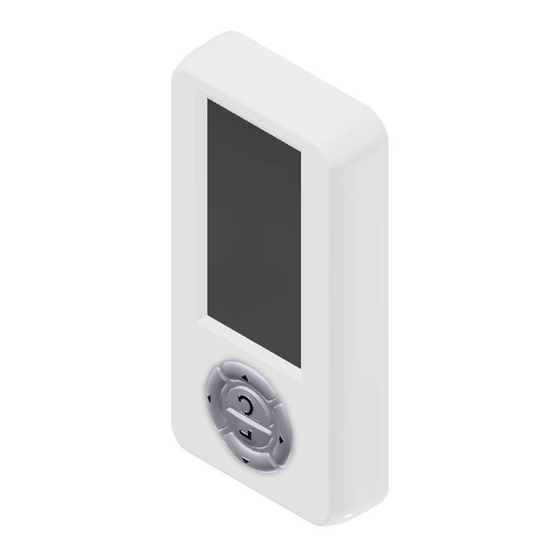

  • Page 1 Sesamo - Digidor Digidor (CONTENTS)

  • Page 2: Table Of Contents

    Sesamo - Digidor CONTENTS CONTENTS ..................................... 2 GENERAL INFO - INSTALLATION WIRING AND ........................3 NAVIGATION MODE MENU ..............................5 FIRST SET UP ..................................6 SCREEN ....................................7 SELECTION MENU’: LOGIC – SETTINGS - DIAGNOSTIC ......................8 SETTINGS ..................................... 10 DIAGNOSTIC ..................................

  • Page 3: General Info - Installation Wiring And

    GENERAL INFO - INSTALLATION WIRING AND “DIGIDOR” programmer has been designed to work with all models of SESAMO operators, designed to be used from the end user to set the different logic of operation of the automatic door, either from the installer for the setting and commissioning, maintenance and securing the automatic door.
  • Page 4 Cod. PF37.32 Sesamo - Digidor Use suitable tools and do not press too much to avoid damages- EN (CONTENTS)

  • Page 5: Navigation Mode Menu

    Sesamo - Digidor NAVIGATION MODE MENU ICON FUNCTION ENTER Confirmation Exit from the menu / cancel Scroll up DOWN Scroll down RIGHT Scroll right LEFT Scroll left Pressing at the same time OPENING Right and Left Key will send COMMAND...

  • Page 6: First Set Up

    Sesamo - Digidor FIRST SET UP Scroll up Language selection Scroll down Push buttons: NAVIGATION MODE MENU (CONTENTS)

  • Page 7: Screen

    Sesamo - Digidor SCREEN Icon service: SIGNAL TABLE SIGNAL TABLE Icon connection: Timing DATE AND TIMINGS Logic selected and active SELECTION MENU’: LOGIC – SETTINGS - SELECTION DIAGNOSTIC MENU’: LOGIC – SETTINGS - DIAGNOSTIC Icon peripheral connection: SIGNAL TABLE By pressing any key to enter: SELECTION MENU’: LOGIC –...

  • Page 8: Selection Menu': Logic - Settings - Diagnostic

    Sesamo - Digidor SELECTION MENU’: LOGIC – SETTINGS - DIAGNOSTIC Selected icon If present it indicates that the function has been set: REDUCED LOGICS Scroll up SCREEN Back to Setting: ▪ logic ▪ menu Scroll down Key selection: NAVIGATION MODE MENU...
  • Page 9 Menu SETTINGS Partial opening Automatic Partial opening Menu DIAGNOSTIC Stop open Manual DIGIDOR PROGRAMMER IS SELF-SETTING Partial opening ACCORDING TO THE TYPE OF OPERATOR Manual CONNECTED (SWING / SLIDING). IT DOES NOT REQUIRE ANY SPECIAL SETTING OR FIRMWARE DIFFERENT FROM THE...

  • Page 10: Settings

    Sesamo - Digidor SETTINGS To enter the setting menu enter a password (refer to PARAMETERS SETTING The are two menus: • IT IS RECCOMENDED TO CHANGE THE DEFAULT Menu for installer – default password: 1234 • PASSWORD WITH YOUR OWN PASSWORD!!!!!!!!! Menu for end user –...
  • Page 11 Sesamo - Digidor List of icons of the menu ONLY for the installer: ICONS DESCRIPTION PARAMETERS SETTING PASSWORD DATE AND TIMINGS CALENDAR SETTING REDUCED LOGICS START-UP MAINTENANCE LANGUAGE SELECTION END USER MENU is without: • Start-up • Maintenance • Parameters adjustment – only setting partial opening (winter mode)

  • Page 12: Diagnostic

    Sesamo - Digidor DIAGNOSTIC Icon selected Scroll up Back to SCREEN Available menu: • CHECK-UP Scroll down • INFO • RESET Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 13: Check-Up

    Sesamo - Digidor CHECK-UP Icon selected Scroll up Back to DIAGNOSTI Available menu: • SENSORS’ STATUS – I/O Scorro verso il basso • SYSTEM DIGNOSTIC • POWER SUPPLY DIAGNOSTIC Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 14: Sensors' Status - I/O

    Sesamo - Digidor SENSORS’ STATUS – I/O Three diagnostic screens on sensor status – I/O Contact Contact Contact Screen 1 di 3 Screen 2 di 3 Screen 3di 3 selected selected selected Selection of contact Back to menu CHECK-UP Screen scroll...
  • Page 15 Sesamo - Digidor Messages chart screen 1 DI 3 – OPENING SENSORS: ACTION REQUIRED STATUS MESSAGE ENTER / ESC to go back ENTER / ESC to go back (CONTENTS)
  • Page 16 Sesamo - Digidor Messages chart screen 2 DI 3 – SAFETY SENSORS: ACTION REQUIRED STATUS MESSAGE ENTER / ESC to go back ENTER / ESC to go back ENTER / ESC to go back (CONTENTS)
  • Page 17 Sesamo - Digidor Messages chart screen 3 DI 3 – INPUT AUX-OUPUT: ACTION REQUIRED STATUS MESSAGE ENTER / ESC to go back ENTER / ESC to go back (CONTENTS)

  • Page 18: System Dignostic

    Sesamo - Digidor SYSTEM DIGNOSTIC Two diagnostic screens: Screen 1/2 Screen 2/2 Info 1 Info 4 Info 2 Info 5 Info 6 Info 3 Back to meu CHECK-UP Scroll screens Scroll screens Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 19: Power Supply Diagnostic

    Sesamo - Digidor POWER SUPPLY DIAGNOSTIC Two diagnostic screens: Screen 1/2 Screen 2/2 Info 3 Info 1 Info 4 Info 2 Back to menu CHECK-UP Scroll screen Scroll screens Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 20: Info

    Sesamo - Digidor INFO Four system information screens: Screen 1 di 4 Screen 2 di 4 Screen 3di 4 Screen 4 di 4 Back to menu CHECK-UP Scroll screens Scroll screens Key selectionNAVIGATION MODE MENU (CONTENTS)

  • Page 21: Reset

    Sesamo - Digidor RESET Back to menu CHECK-UP Start RESET NOTE: pressing key “ESC” during reset allows to go back to “First main scren”, but if the procedure is not finished, on the display will NOT appears the logic selected until the procedure has been executed.

  • Page 22: Parameters Setting

    Sesamo - Digidor PARAMETERS SETTING On the menu “Parameters setting” it is possible to find the complete list of parameters useful to adjust the operator according to the norms and own preferences. There are three setting mode: Setting A ID parameter...
  • Page 23 Sesamo - Digidor Setting B ID parameter Number of parameter - refers to “parameters chart” available in the installation manual. Available function Scroll available Back to menu SETTINGS functions Following parameter Previous parameter (WITHOUT SAVING) (WITHOUT SAVING) Confirm the adjustment and automatic step to the next parameter.
  • Page 24 Sesamo - Digidor Setting C ID parameter Number of parameter - refers to “parameters chart” available in the installation manual. Setting contact N/O – 1 - NC Back to menu SETTINGS Following parameter Previous parameter (WITHOUT SAVING) (WITHOUT SAVING) Confirm the adjustment and automatic step to the next parameter.

  • Page 25: Password

    Sesamo - Digidor PASSWORD There are two passwords: 1.Password for installer Default password: 1234 2.Password for end user Default password: 1111 IT IS Icon selected RECCOMENDED TO CHANGE THE DEFAULT PASSWORD WITH YOUR OWN PASSWORD!!!!!!!! ! ONLY INSTALLER HAS THE...

  • Page 26: Modify Password

    Sesamo - Digidor MODIFY PASSWORD 1 - INSTALLER Password view set Scroll increasing Back to menu SETTINGS numbers Scroll right number Scroll left number Confirm each single number and proceed to the following, once all numbers are confirmed you will pass...
  • Page 27 Sesamo - Digidor 2 – END USER Password view set Scroll increasing Back to menu SETTINGS numbers Scroll right number Scroll left number Confirm each single number and proceed to the following, once all numbers are confirmed you will go...

  • Page 28: Password To Lock The Keyboard

    Sesamo - Digidor PASSWORD TO LOCK THE KEYBOARD Default value: 0000 It means keybord unlocked. Scroll increasing Back to menu SETTINGS numbers Scroll right number Scroll left number Confirm each single number and proceed to the following, once all numbers are confirmed I set the...

  • Page 29: Date And Timings

    Sesamo - Digidor DATE AND TIMINGS Date set Timing set Scroll increasing Back to menu SETTINGS numbers Scroll right / at the Scroll left / at the end of the string in end of the string in automatic. automatic. Confirm and back to menu...

  • Page 30: Calendar Setting

    Sesamo - Digidor CALENDAR SETTING Step 1: Step 2: Select Day of the Week Select time slots to set – N.4 timings for each day of the week Scroll up Back to previous screen Select - Set Scroll down Confirm and go to following Confirm and go to following screen.
  • Page 31 Sesamo - Digidor At this point the time slot will be set BUT NOT ACTIVE!!!!! When pressed the "ESC" button, it will come a new screen that will ask to confirm. If confirmed, at that point the function will be activated otherwise it will remain set and t can be activated later.

  • Page 32: Reduced Logics

    Sesamo - Digidor REDUCED LOGICS It will appear on the logic selection screen to indicate a reduction. Logic cancelled See : SELECTION MENU’: LOGIC – SETTINGS - DIAGNOSTIC Scroll up Back to menu SETTINGS Active / Not Active the logic...

  • Page 33: Start-Up

    Sesamo - Digidor START-UP Scroll selection up Back to menu SETTINGS I scroll through the I scroll through the next previous screens screens Confirm and move to the next screen THE BROWSING MODE AND Scroll selection down FUNCTIONALITY OF THE KEYS IS...
  • Page 34 Sesamo - Digidor NOTE: The selected factory settings comply with the EN16005 Commissioning consists of a series of wizards specified below: 1° Operator’ series 2° Set safety in closing of 3° Set the test for safety detection, operator the internal sensor S2.
  • Page 35 Sesamo - Digidor 7° Set the test for safety 8° Set safety in opening 9° Set the test for safety in opening of the right of the left sensor S4. in opening of the left S4. sensor S3. Confirm with ENTER...
  • Page 36 Sesamo - Digidor 13° If present Set type of 14° if present Set the 15° If fitted set the kit electromechanical lock recharging power battery kit elastic CO48 . (OPTIONAL). (OPTIONAL). Confirm with ENTER Confirm with ENTER Confirm with ENTER 16°...

  • Page 37: Maintenance

    Sesamo - Digidor MAINTENANCE Icon selected Scroll up Back to menu SETTINGS Menus available: ▪ FIRMWARE UPDATE Scroll down ▪ SET A DEFAULT Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 38: Firmware Update

    Sesamo - Digidor FIRMWARE UPDATE By using an adapter cable Micro USB / USB (PF37.30), through a normal USB stick, it is possible to upgrade the firmware of the selector and main control boards. Update type (selector / main control board)

  • Page 39: Set A Default

    Sesamo - Digidor SET A DEFAULT Back to menu MAINTENANCE Start SD NOTE: SET A DEFAULT returns the main control board to factory settings and parameters, permanently losing all settings and learning stored. Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 40: Language Selection

    Sesamo - Digidor LANGUAGE SELECTION Indicates the language set Scroll up Back to menu SETTINGS Imposto lingua Scroll down Key selection: NAVIGATION MODE MENU (CONTENTS)

  • Page 41: Signal Table

    PC or an other Digidor. Indicates that a USB stick has been connected to the selector A USB stick is connected, indicating that it is looking for the connection Indicates an error/lack of connection between the Digidor and the connected device (CONTENTS)
  • Page 42 Sesamo - Digidor WARNING! This product falls within the scope of the Directive 2012/19 / EU concerning the management of waste for electrical and electronic equipment. (RAEE). The appliance must not be disposed of with domestic waste as it is made of different materials that can be recycled to suitable structures.
  • Page 43 Sesamo - Digidor C187540_05_MAN_DG_E_08_03_21 SESAMO srl Str. Gabannone, 8/10 15030 Terruggia (AL) Italy Tel: +39 0142 403223 Fax: +39 0142 403256 www.sesamo.eu e-mail: info@sesamo.eu (CONTENTS)
