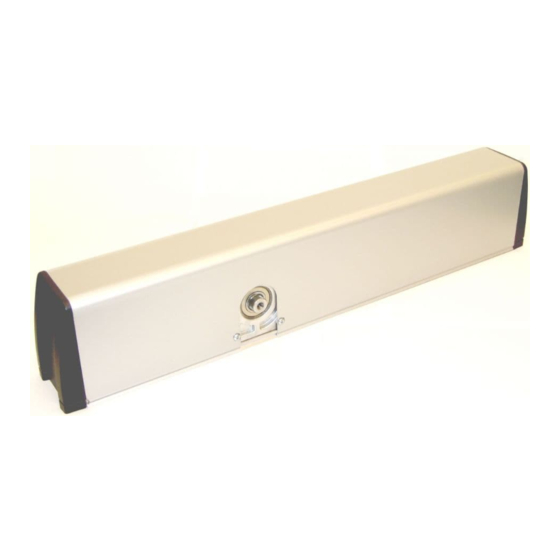

Automatic operator for swinging doors
Hide thumbs Also See for PROSWING:
Table of Contents

Advertisement

Quick Links

(m)
PROSWING
Automatic Operator for swinging doors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROSWING and is the answer not in the manual?

Questions and answers

Related Manuals for Sesamo PROSWING

Summary of Contents for Sesamo PROSWING

  • Page 1 PROSWING Automatic Operator for swinging doors...
  • Page 2 PROSWING (M) Operating instruction...

  • Page 3: Table Of Contents

    Pull arm installation ......................pag. Push arm installation ...................... pag. Preliminary checking ...................... pag. Wiring power supply ...................... pag. Control board Proswing (M) ..................pag. Wiring ..........................pag. External peripherals connectors-Input ................pag. External peripherals connectors-Output ................ pag. Dip-switches setting ......................pag.
  • Page 4 Inter lock wiring and use ....................pag. Installation batteries (OPTIONAL) .................. pag. Logic switch ........................pag. Connector for PC-Unit connections................pag. Delivery modality ......................pag. SESAMO reserves the right to change the technical specifications of the products, even without notice.
  • Page 5 - the person authorized to compile the relevant technical manager with the use manual and all the information requi- documentation is: SESAMO SRL, Strada Gabannone, 8/10 - red for correct use in automatic and manual modes (even for 15030 Terruggia (AL) - Italy electronic locking) and in the event of emergency.

  • Page 6: Technical Specifications

    In the diagram there is the max door weights related with the door widths: Function LOW-ENERGY PROSWING (M) can be set in the order to meet requirements of Low-Energy application according DIN 18650 or BS 7036- In Low-Energy mode safety is ensured by: - low speed;...

  • Page 7: Warnings For The Installer And General Safety

    6) Do not install the product in explosive enviroment: the presence of flamabel gases or fumes is a serious safety hazard. 7) SESAMO is not responsible for the failure to comply with the Good Technical construction procedure of the door to be auto- mated, as well as deformations that may occur to the door when using the same.

  • Page 8: Intended Use

    To each type of arm correspond a different type of jamb dimension: do not exceed this value (see Paragraph “arm installa- tion”). This device is intended only for swinging pedestrian door, dry and inside use. SESAMO shall not be held liable for any other use contrary to the use foreseen. RIGID PULL ARM ARTICULATED PUSH ARM +100 0 ÷...

  • Page 9: Types Of Arms

    PROSWING (M) Operating instruction Types of arm ATTENTION: For proper positionning, please refer to the paragraph “Arm Installation”. PULL ARM The pulling arm can be fitted: PULL (it is used when the automatism is installed on the same side of the door opening).

  • Page 10: Arm Extensions

    PROSWING (M) Operating instruction Arm extensions ATTENTION: For a correct positionning refer to “arm installation” paragraph. Fig. 4 L=30 mm L=50 mm L=70 mm L=90 mm (standard) Dimensions Fig. 5...

  • Page 11: Preliminary Checks

    PROSWING (M) Operating instruction Preliminary checks Before installing the automatism please check: verify the installation does not create dangerous situations; prearrange proper pipes and counduits for the wires, granting the protection of the same against mechanical dama- ges; the surface where fixing the automatism has to be resistant. Use screws, bolts, etc. adequate to the type of surface;...
  • Page 12 PROSWING (M) Operating instruction To fix automatism proceed as follows: 1- remove cover (Fig.6 part.B); 2- disconnect all wiring (encoder, switches, transformer, motor) on control board; 3- unscrew the 2 screws (Fig.6 part.C) and remove control board with its support (screws remain between control board and support);...

  • Page 13: Aluminum Base Holes Positioning

    PROSWING (M) Operating instruction Aluminum base holes positioning hinge axis Fig. 8 hinge axis Fig. 9 Drilling holes according to the type of screws chosen and fix the base only after verifying the “Positioning dimensions” listed in the paragraph concerning the type of arm selected.

  • Page 14: Pull Arm Installation

    PROSWING (M) Operating instruction Pull arm installation Pull arm positioning Pull arm has to be used when automatism is installed on the same side of door opening. ATTENTION: For a correct positionning always refer to the hinge axis and gear motor axis, as shown in Fig.10 e 11.
  • Page 15 PROSWING (M) Operating instruction ATTENTION: final tightening of the screws must be performed only after checking that vertical Gear motor axis positioning of the automatism allow a good parallelism between hinge axis and gear motor axis. Therefore, after fixing the pulling...
  • Page 16 PROSWING (M) Operating instruction Sliding guide installation 1- Unthread profile (Fig.13 Part.I) and drill 4 holes on the “V” mark on guide profile. 2- Fix guide profile horizontally to the door following dimensions shown in Fig.12. Fig. 13 4- Insert washer (Fig.14 part.B) and screw (Fig.14 part.C) into arm extension (Fig.14 part.A).
  • Page 17 PROSWING (M) Operating instruction 6- Insert arm extension (Fig.14 part.A) on the shaft and tight screw (Fig.14 part.C) until arm extension is well fixed to gear motor shaft. 7- Insert skid (Fig.15 part.G) inside the guide (Fig.15 part.O) and slightly open door.

  • Page 18: Push Arm Installation

    PROSWING(M) Operating instruction Push arm installation Push arm is used when automatism is installed on the opposite side of door opening. ATTENTION: For a correct positionning always refer to the hinge axis and gear motor axis, as shown in Fig.17 e 18.
  • Page 19 PROSWING(M) Operating instruction Door bracket 272.5 Fig. 19 ATTENTION: final tightening of the screws must be perfored only after checking arm can easily rotate under door jamb (Fig.20). Motor axis Push arm Door bracket OPENING DIRECTION Jamb depth=0÷300 mm Fig. 20 Increasing jamb depth, maximum opening angle is proportionally reduced.
  • Page 20 PROSWING(M) Operating instruction Fix PUSH ARM to the door Fig. 21 For PUSH ARM proceed as follows: 1- Insert washer (Fig.21 part.B) and screw (Fig.21 part.C) into arm extension (Fig.21 part.A). 2- Insert arm (Fig.21 part.D) in the arm extension slot, as show in Fig. 21 and tighten screws (Fig.24 part.E).

  • Page 21: Preliminary Checking

    PROSWING(M) Operating instruction Preliminary checking Before electrical wiring, check as follows: • Remove carefully dust or any other residual of the installation • Verify automatism being well fixed • Verify all screws well tighten • Verify all wiring well fixed and not near moving parts...

  • Page 22: Wiring Power Supply

    Power suppply must be isolatable from the general panel with a bi-polar switch with minimum contact opening equal Fig. 23 to 3 mm (not supplied). 230V AC Control board PROSWING (M) Fig. 24 shows the main electronic components connection of the control board: Power supply Expansion External peripherals...

  • Page 23: Wiring

    PROSWING(M) Operating instruction Wiring Connect the following terminal boards: - logic switch [Fig. 25 part.A]; - ON-OFF switch [Fig. 25 part.B]; - transformer [Fig. 25 part.C]; - motor [Fig. 26 part.D]; - encoder [Fig. 26 part.E]. Fig. 26 Fig. 25...

  • Page 24: External Peripherals Connectors-Input

    PROSWING(M) Operating instruction External peripherals connectors - Input TYPE SIGNAL DESCRIPTION FUNCTION DEFAULT* Lock contact. Lock devices can be If the contact opens the unit sends a complete closing connected such as electronic key, cycle command (from any position) From this moment key selector, proximity reader, etc.
  • Page 25 PROSWING(M) Operating instruction External periphericals connectors-Output SIGNAL TYPE DESCRIPTION FUNCTION DEFAULT* AUX OUT 1 e 2 Auxiliary output contact that can be set as follows: It monitorins safety sensors. Monitoring sensors To be connected to the input interlock of the other automa- Inter lock tism, to obtain interlock logic.

  • Page 26: Dip-Switches Setting

    PROSWING(M) Operating instruction Dip-switches setting On the control board there is a dip-switch 8 positions to adjust functionality and basic options. Changing of setting is considered only after automatism RESET. Factory DipSwitch Parameter Setting setting ARM SELECTION: OFF=push arm, ON=Pull arm...

  • Page 27: Parameters Adjustment-Display

    PROSWING(M) Operating instruction Parameters adjustment-display It is possible to adjust several functionning parameters through two displays and relevant four push buttons(see Fig. 39). Fig. 39 Procede as follows: 1. Select parameter thorough push buttom [+] and [-]; press [ENT] to enter in the adjustment procedure.
  • Page 28 PROSWING(M) Operating instruction ID of the- DEFAULT Description Adjustment parameter setting Lock closing force RANGE: 0(min) ÷ 9(max) 0 = Single 1 = Double Master Conditions Single/Double 2 = Double Slave 0 = DDA opening 1 = One Radar Block by motor on closed door according...
  • Page 29 PROSWING(M) Operating instruction ID of the- DEFAULT Description Adjustment parameter setting 0 = NO (Normally Open) Polarity output Aux Out 1 1 = NC (Normaly Close) 0 = NO (Normally Open) Polarity output Aux Out 2 1 = NC (Normaly Close) RANGE: 0÷9...

  • Page 30: Start Up

    PROSWING(M) Operating instruction Start up 1- Switch in “OFF” (position 0). Fig. 29 Check again DipSwitch, expecially Dip n° 1 e 5. DipSwitch Parameter Setting ARM SELECTION: OFF=push arm, ON=Pull arm Check again that KEY and SAFE CLOSE are regulary connected or, if not used, connected to COM.

  • Page 31: Message Or Errors Code

    PROSWING(M) Operating instruction Fig. 32 6. Press push buttons [+] e [-] until appears; press [ENT] until [--] appears; press again[ENT] for 5 seconds; when disappears [--] release push button [ENT]. 7. Door will start learning cycle, opening direction. ATTENTION: when door reaches desired opening position, stops door in that position: this position will be memori- zed as max opening.

  • Page 32: Operating Logics

    PROSWING(M) Operating instruction Operating logics Operation Description In all operative procedures (except Stop Close) it is possible a motor opening with a reduced speed (Low Energy speed) and higher idle time (idle time for disabled people) using the ope- LOW-ENERGY...

  • Page 33: Electric Lock Selection And Setting

    PROSWING(M) Operating instruction Electric lock selection and setting It is possible to feed 12 or 24 Vdc. Looks max power is 15W. [set through parameter (paragraph “Parameter adjustment display”)] If the electric lock has a feedback contact it is possible to use it to enable door opening. If the feedback dos not arrive the door, after a certain time, will try to open anyway.
  • Page 34 PROSWING(M) Operating instruction FAIL SAFE LOCK (Parameter 10=3) command (Parameter 11) MOTORIZED LOCK (Parameter 10=4) command (Parameter 11) IMPULSIVE LOCK WITH RESTTORE AT POWER CUT OFF (Pameter 10=5) 100÷1000 (Parameter 11) LEGEND = BACK HIT = START CLOSING = DOOR CLOSED...
  • Page 35 PROSWING(M) Operating instruction Selectors terminal board Use the four conductors in the shielded wire for connections, observing the correspondences indicated by the markings on the terminal board and multi-logic selector. Do not connect the shield of the wire used. For further information on multi-logic selector use, see the instructions for use.
  • Page 36 SOLUTION 2 The two Proswing, through a wiring on the selector terminal board, can exchange information in order to rightly drive the two doors. It is needed to set one control door as a Master and one as a Slave. The Slave acts only the Master command.
  • Page 37 PROSWING(M) Operating instruction Fig. 34 Fig. 35 For both solutions, we must follow the following instructions to configure the electronic boards: 1- To define Master and Slave use parameter 13: • MASTER (parameter 13 =1); • SLAVE (parameter 13 =2);...
  • Page 38 PROSWING(M) Operating instruction 2- In case of door with overlapping it is necessary to set displacement movement. Usually in opening a slight displacement is enough, but in closing, where it is important to be sure to close on the right overlapping, an higher delay between the two doors is needed.
  • Page 39 Inter lock wiring and use Proswing control board can work in inter lock with another pro swing board. Inter lock means that it is possible to open/close only one door at a time. To connect two boards proceed as follow (Fig. 37): •...
  • Page 40 PROSWING(M) Operating instruction Power kit (OPTIONAL) To install power kit batteries proceed as follows: 1- Fix the sponge (A) as shown in Fig. 39, using as reference the aluminum base profile bottom line; 2- Insert the two batteries (C) in the supporting metallic bracket (B) and fix the whole assembling through screw M6x10 (D);...
  • Page 41 PROSWING(M) Operating instruction 4- Pass cables through springs (E) , then under the control board until the part of control board where is located the transformer Fig. 41. Fix cables as shown in Fig . 41 (F) and (G). Fig. 41 5- Connect the batteries cables terminal board to control board Fig.
  • Page 42 Connector for PC - unit connections PC connection board Fig. 46 For PC connection board (optional) is required to connect the PROSWING unit to a Personal Computer. The following is pos- sible with MILLENNIUM WARE software: • Advanced adjustments of some operating parameter •...
  • Page 43 PROSWING SESAMO srl Str. Gabannone, 8/10 • 15030 Terruggia (AL) • Italy Tel: +39 0142 403223 • Fax: +39 0142 403256 www.sesamo.eu • E-mail: info@sesamo.eu...
