Sesamo LIGHT MILLENIUM Installation Instruction

Automatisms for sliding doors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Automatisms for sliding doors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHT MILLENIUM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sesamo LIGHT MILLENIUM

Summary of Contents for Sesamo LIGHT MILLENIUM

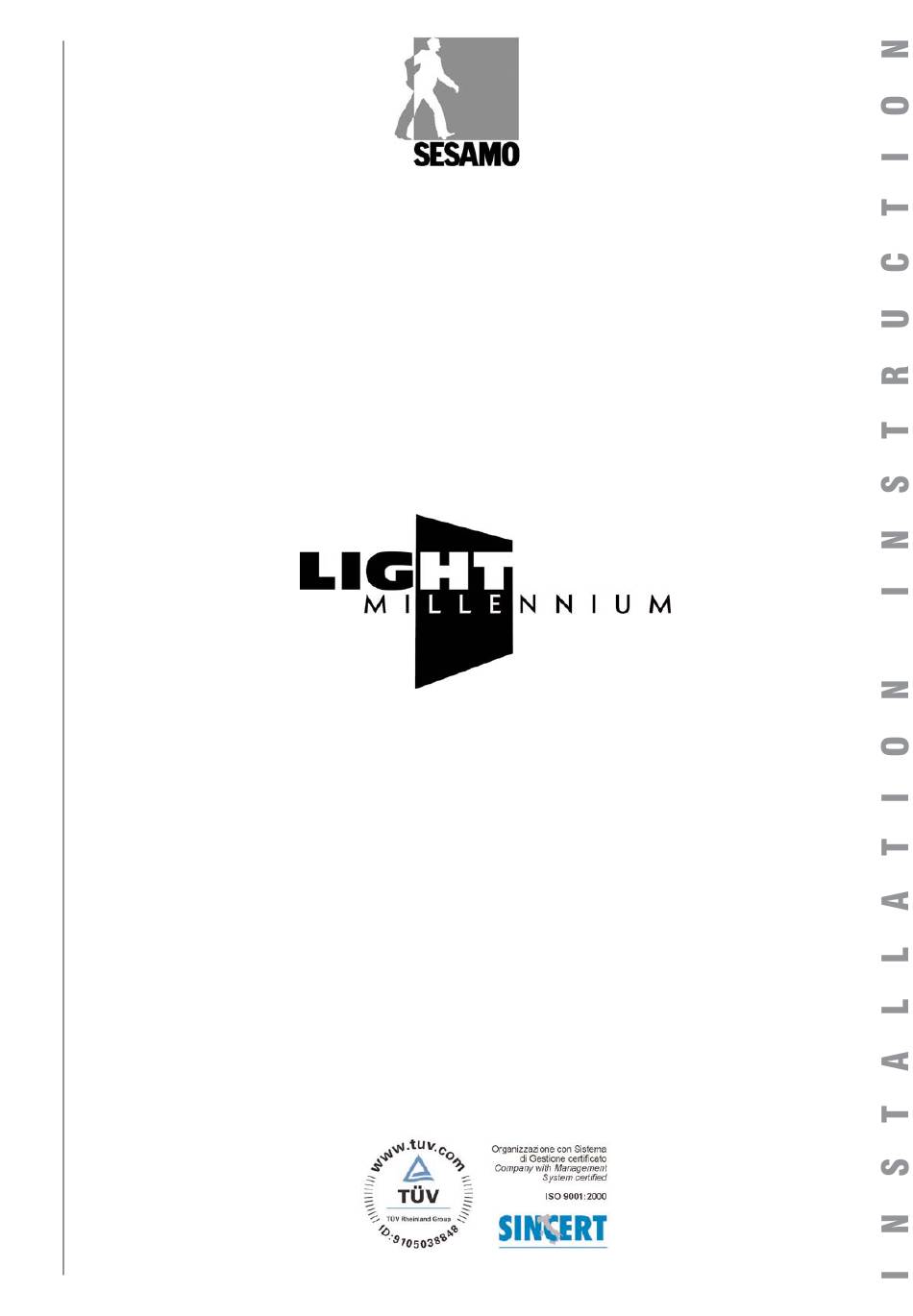

  • Page 1 Automatisms for sliding doors...

  • Page 3: Table Of Contents

    Semi-automatic mode ..................page Battery mode ...................... page Jumpers ......................page Start up ........................ page Inter lock connection and use ................page Error Message Table.................... page SESAMO reserves the right to change the technical specifications of the products, even without notice.
  • Page 4 Installation Instruction Machine directive Thank you for choosing this product. For best automatism performance, Sesamo recommends you carefully read and The installer who motorised a door becomes the automatic follow the installation and use instructions found in this man- door machine manufacturer according to directive 98/37/CE ual.

  • Page 5: Technical Specifications

    LIGHT MILLENNIUM Installation Instruction Technical specifications Power supply 230V ac 50 Hz Nominal power 180 W External device power 12Vdc – 6W Emergency battery 24 V 1.2 Ah for about 100 manoeuvres in the event of power failure Opening speed Adjustable up to 70 cm/sec.

  • Page 6: Automatism Girder Assembly

    LIGHT MILLENNIUM Installation Instruction The integrated movement control module (Fig. 3) is essentially made up of: A. Base support plate B. Encoder unit with belt adjustment device C. Electronic control panel D. Transformer E. Mains connection terminal board (230Vac) F. Emergency battery (optional) G.
  • Page 7 Fig.6 if standard wing profiles are used; Fig.7 if Sesamo mod. SMALL wing profiles are used; Fig.8 if Sesamo mod. MAGNUM wing profiles are used. For the abbreviations found in Fig.6, Fig.7 and Fig.8 refer...
  • Page 8 LIGHT MILLENNIUM Installation Instruction Automatism component removal and movement Unscrew the cover fastening screws A (if pres- ent) and remove as indicated in the sequence in Fig.9. Remove the carriages as follows: • Disconnect the belt fastening rod from the carriage using the fastening screws B (Fig.10) •...
  • Page 9 LIGHT MILLENNIUM Installation Instruction According to the type of support, all or only some of the slots on the box are used (Fig.13). To prevent vibrations or noise during use, make sure that there is a solid fixture every 600 mm and that the box is fas- tened with the slots closest to the two heads.

  • Page 10: Wing Assembly And Adjustment

    LIGHT MILLENNIUM Installation Instruction Wing assembly and adjustment Carriage assembly Fasten the carriages to the wings according to the quotas found in the following diagram (Fig.15). Fig. 15 The quotas indicated in Fig.15 A and B are applied to wings seen from the inspection side (cover) of automatism.
  • Page 11 Horizontal adjustment (Pt axis) Its purpose is to adjust the meeting point of the two wings. Sesamo automatisms are designed positioning components to obtain the correct meeting of the wings at the centre of the space. If the meeting point requires adjustment during installa- tion, proceed as follows: •...
  • Page 12 LIGHT MILLENNIUM Installation Instruction Belt tensioning Proceed as follows for correct belt tensioning: • Make sure the motor unit is positioned and fixed as per factory settings and is a position that guarantees belt centring to the sliding area • Loosen the fastening nuts on the encoder pulley unit A (Fig.21) •...
  • Page 13 LIGHT MILLENNIUM Installation Instruction Wing limit stop adjustment 2 wing Automatism: on of the two limits is found on the left end of the girder (Fig. 23 part. A) and the other near the centre of the right wing (Fig. 23 part.B). 1 wing Automatism: the two limits are found on the ends of the left (Fig.

  • Page 14: Final Operations

    LIGHT MILLENNIUM Installation Instruction Electronic lock adjustment • Make sure the limit block runner is evenly positioned on the carriage observing automatism configuration (Fig.23, 24, 25 part. F). (Hole ø=9mm) • Move the wing(s) to the totally closed position. • Slide the electronic lock until the bar is near the limit block (Fig.26) (distance ~2 mm.) and tighten the screws.

  • Page 15: Power Connections

    LIGHT MILLENNIUM Installation Instruction Power connections WARNING Before performing the following operations make sure the mains are disconnected. Before powering the equipment, perform the controls foreseen in paragraph “Start up”. Place the power cord in the automatism paying careful attention not to damage the cord against any metallic edges. Connect mains and grounding wires on the terminal board (Fig.

  • Page 16: Electrical Connections

    LIGHT MILLENNIUM Installation Instruction Electrical connections WARNING All board or peripheral connections on the terminal board must be performed with the power disconnected to prevent irreparable damage to the electronic equipment. Connectors must be inserted as in Fig. 29 WARNING Any repairs or replacements must be performed by professionally qualified personnel and original spare parts must be used in repairs.

  • Page 17: Right Side Electronic Board Connections

    LIGHT MILLENNIUM Installation Instruction Right Side Electronic Board Connections Fig. 31 A. Photocell amplifier board connector (optional) Insert the amplifier module observing the assembly direction shown in Fig. 29 WARNING Select the Jumper for single or double beam and check the red led JUMPER BEAM OFF Closed towards B2...
  • Page 18 LIGHT MILLENNIUM Installation Instruction D. Multi-logic selector connector ADVANCED SELECTOR Shielded cable with 4 wires 0,22 mm. Fig. 34 (Do not connect the shield of the wire used) BASE SELECTOR Fig. 35 Use the four conductors in the shielded wire for connections, observing the correspondences indicated by the markings on the terminal board and multi-logic selector.
  • Page 19 LIGHT MILLENNIUM Installation Instruction SIGNAL TYPE* DESCRIPTION FUNCTION Common electrical signal. SAFE CLOSE Signal for the connection of an external If the door is closing and the contact opens, the unit sends and photocell or safety control device for immediate motion inversion command. Closing will only recom- wing closing mence after the contact closes.

  • Page 20: Led Functions

    LIGHT MILLENNIUM Installation Instruction LED Functions ON indicates 12V external ON indicates mains Factory use only voltage present peripheral power supply indicates encoder signal presence Fig. 38 ON indicates electronic lock power Diagnostics Led External peripheral ON indicates motor (see Error Message Table) signal presence led.

  • Page 21: Jumpers

    LIGHT MILLENNIUM Installation Instruction Jumpers J1: activates motor power supply in completely closed position to generate continual drive even in the wings stopped and closed position. J2: not used J3: cyclic opening generator to test door operations; J4: KEY signal operating type selection (see external peripheral connector description): mono-stable (Activation time 500 ms) or bi-stable Jumpers OFF (Default)

  • Page 22: Inter Lock Connection And Use

    Before to end the automatism’s installation, remember to stick the labels on the sliding wings. Hand the guarantee and test certificate over filled according to the instructions shown in the certificate. The certificates must be sent to SESAMO in 8 days from the positive test date. Hand the technical documentations over to the client.
  • Page 24 SESAMO srl Str. Gabannone, 8/10 • 15030 Terruggia (AL) • Italy Tel: +39 0142 403223 • Fax: +39 0142 403256 www.sesamo.eu • E-mail: info@sesamo.eu...
