Summary of Contents for Elma Instruments 593R

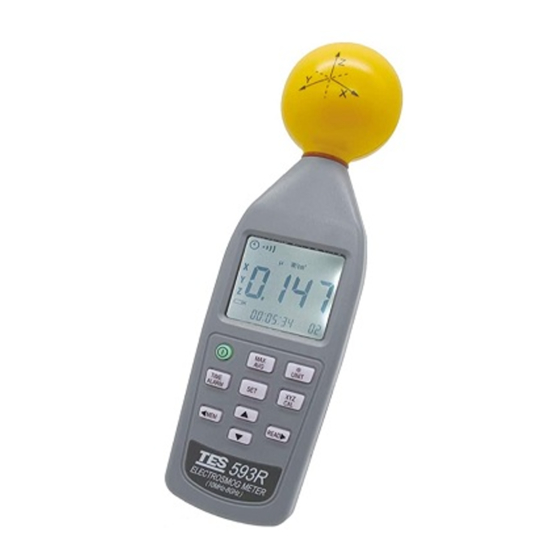

- Page 1 Manual Elma 593R ELECTROSMOG METER EAN: 5706445340330...
-
Page 2: Table Of Contents
4.6 Making measurements ..............15 4.7 Manual data memory storing individual measured values ....16 4.8 Setting current data and time ............18 4.9 LCD backlight function ..............18 BATTERY CHARGING ................18 ※ Copyright © 2020 Elma Instruments. All rights reserved. -
Page 3: Safety Information
Elma 593R SAFETY INFORMATION CAUTION • When first use the meter or prolonged storage the meter, please charge the meter at least 10 minutes then use the meter. • Before making a measurement, check if the low battery symbol ( ) is shown on the display as soon as the meter is switched on or the battery remained capacity indicate “... -
Page 4: Introduction
Elma 593R INTRODUCTION 2.1 Fundamentals ❑ Electromagnetic pollution: This Meter used to indicate electromagnetic pollution generated artificially. Wherever there is a voltage or a current, the electric (E) and magnetic (H) fields arise. All types of radio broadcasting and TV transmitters produce electromagnetic fields, and they also arise in industry, business and the home, where they affect us even if our sense organs perceive nothing. -
Page 5: Application
Elma 593R 2.2 Application Quite often routine operation, maintenance and service work has to be done in areas where active electromagnetic fields are present, e.g., in broadcasting stations, etc. Additionally, other employees may be exposed to electromagnetic radiation. In such cases, it is essential that personnel are not exposed to dangerous levels of electromagnetic radiation, such as: ❑... -
Page 6: Specifications
Elma 593R SPECIFICATIONS 3.1 General specifications • Measurement method: Digital, triaxial measurement. • Directional characteristic: Isotropic, triaxial. • Measurement range selection: One continuous range. • Display resolution: 0.1mV/m, 0.1A/m, 0.1W/m , 0.001W/cm • Setting time: Typically, 1s (0 to 90% of measurement value). -
Page 7: Operation
Elma 593R OPERATION 4.1 Front panel controls description E-field sensor. LCD display. key: Press this key to turn the meter on or off. key: Press this key to change sequential: “Instantaneous”→ “Max. instantaneous” → “Max. average”. key: Press this key to change unit’s selector: “mV/m or V/m”... - Page 8 Elma 593R key: Press this key to switch to display date and time. Press and hold this key while turning the meter on to the alarm setting mode, press key two times to exit this mode. Press this key for 3 seconds to switch the alarm function on or off.
-
Page 9: Lcd Display Description
Elma 593R 4.2 LCD display description Auto power off function on / off. Displayed: Audible sound function on / off. 3. MAX: Maximum measured value displayed. 4. MAX AVG: Maximum average value displayed. Low battery indication. 6. Units: mV/m and V/m : Electric field strength. -
Page 10: Use E-Field Sensor
Elma 593R 4.3 Use E-field sensor The actual 3-channel sensor is located in the head part of the meter. The three voltages generated by the sensor are fed back to the meter. In far-fields, an E-field sensor is preferable due to the greater bandwidth. - Page 11 Elma 593R 4.4.3 Calibration factor (CAL) The calibration factor CAL serves to calibrate the result display. The field strength value measured internally is multiplied by the value of CAL that has been entered and the resulting value is displayed. The CAL setting range is from 0.20 to 25.00.
-
Page 12: Setting The Meter
Elma 593R 4.5 Setting the meter 4.5.1 Setting the units of measurement With the key as follows. Units Mannal data memory number (a). Electric field strength (V/m). (b). Computed magnetic field strength (mA/m). (c). Computed power density (mW/m (d). Computed power density (W/cm... - Page 13 Elma 593R 4.5.2 Setting the result mode Instantaneous result mode is automatically set when the meter is turned on. With the key as followings: Instantaneous Max. Instantaneous Max. average...
- Page 14 Elma 593R 4.5.3 Setting the alarm limit value (ALARM) Power off Hold-on When the meter is normally turned on, the alarm set limit value will display for 2 seconds. 1. Press key to turn off the meter. 2. Press and hold on...
- Page 15 Elma 593R 4.5.4 Setting the calibration factor (CAL) When the meter is normally turned on, the calibration factor set value will display for 2 seconds. 1. Press key to turn off the meter. 2. Press and hold on key, then press key to turn on the meter to enter the calibration factor setting mode, the “CAL SEt”...
-
Page 16: Making Measurements
Elma 593R 4.5.6 Setting the audible sound function off When the meter is normally turned on, the audible sound function is on. 1. Press key to turn off the meter. 2. Press and hold key and turn on the meter again to disable the audible sound, then the “... -
Page 17: Manual Data Memory Storing Individual Measured Values
Elma 593R 4.6.1 Short-term measurements Application: Use either the “Instantaneous” or the “Max. instantaneous” mode, if the characteristics and orientation of the field are unknown when entering an area exposed to electromagnetic radiation. Procedure 1. Hold the meter at arm’s length. - Page 18 Elma 593R 4.7.2 Reading individual measured values Entry Reading mode indicate Reading memory location Exit key, the display then shows “ ” (reading mode). 1. Press 2. Press or key to select the desired memory location. 3. Press key to select the desired reading units.
-
Page 19: Setting Current Data And Time
Elma 593R 4.8 Setting current data and time key to enter this mode, the “SEt” mark is displayed. 1. Press 2. Press or key to move flashing two digit to desired setting position “hh:mm:ss” or “YY/MM/DD”. 3. Press or keys to set the current time “hh:mm:ss” and current date “YY/MM/DD”. - Page 20 v.210823 23-08-2021 14:34:31...
