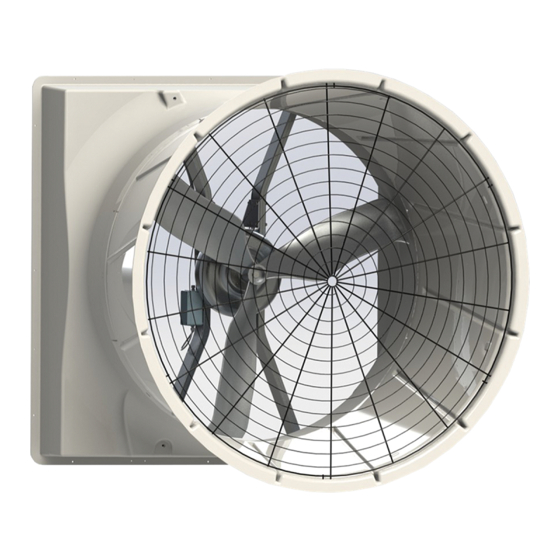

- Page 1 Aerotech VX36 & VX48 with RC cone and Munters Drive* Instruction Manual Instruction Manual *Patents Pending VX36 and VX48 with Munters Drive 36” and 48” Exhaust Fan Models: VX36DFxxCP-Hx • VX48DFxxCP-Hx © Munters Corporation, August 2017 QM1227r4...
-
Page 2: Warranty
Please Note: To achieve maximum performance and insure long life from your Munters product it is essential that it be installed and maintained properly. Please read all instructions carefully before beginning installation. - Page 3 PZ Style Shutter 3. Electrical Wiring Recommended Wire Routing Electrical Wiring Recommended Wiring 4. Operation and Maintenance Operation Maintenance 5. Troubleshooting 6. Winterizing Winterizing Winter Weather Protection 7. Exploded View and Parts List 23-24 © Munters Corporation, August 2017 QM1227r4...
-
Page 4: Unpacking The Equipment
Unpacking the Equipment 1.1 Parts List Each Fan includes: 1 - Munters Drive Fan 1 - Cone 1 - Guard 1 - Shutter 1 - Hardware Package (HP1167) HP1167 – 36”/48” Fan, One Piece Cone Qty. Cat. No. Description KS2105 #14 x 1.5”... -
Page 5: Installation Instructions
DIMENSION 43” W. x 43” H. 36” 36RC 12” recommended; 8”minimum 51” Minimum 48” 48RC 55” W. x 55” H. 12” recommended; 9” minimum 64” Minimum Figure 1A Frame Construction Figure 1B Post Construction © Munters Corporation, August 2017 QM1227r4... - Page 6 Top and Sides building then frame fan as shown in Figure 3 . Top and sides require 4" minimum and bottom requires 2" minimum. 2" Minimum Framing for fan, Bottom Wall Framing Figure 3 © Munters Corporation, August 2017 QM1227r4...
- Page 7 5B. Finger tighten nuts only at this time. Top Cone Tab Flange Nut Hole at 10 O'clock Cone Washer [C] 36/48RC Cone (outside) Fan Outlet (inside) Truss Head Bolt [B] Figure 5B Figure 5A © Munters Corporation, August 2017 QM1227r4...
- Page 8 Step 7. Step 7 The snap-in guard has a slight conical shape to it so, when installed the center of the guard should protrude out slightly. See Figure 7. Guard Cone Figure 7 © Munters Corporation, August 2017 QM1227r4...
- Page 9 Line up each eyelet with a hole in the guard pads. Secure guard to cone using (8) existing Bolts and Nuts. See Figure 8A and 8B . Tighten all nuts at this time. Guard Mounting Pad Fan Outlet Bolt Guard Guard Mounting Figure 8A Guard eyelet Figure 8B © Munters Corporation, August 2017 QM1227r4...
- Page 10 ” from back of fan. Step 11 Fasten shutter in place by rotating the side and top shutter clips over the shutter flanges. See Figure 10. Installation is now complete, proceed to Electrical Wiring Section. Figure 10 © Munters Corporation, August 2017 QM1227r4...
- Page 11 See Figure 11B. Installation is now complete, proceed to electrical wiring section. PZ Shutter Fixed Bottom Shut- ter Clip Figure 11A Figure 11B © Munters Corporation, August 2017 QM1227r4...
-
Page 12: Electrical Wiring
3.1 Recommended Wire Routing The Munters Drive Fan comes with a coil of electrical cable that is pre-wired to motor. Find the end of the cable and route it outside the fan and connect it to the incoming power supply and/or the safety cut-off switch. (Safety cut-off switch by others). - Page 13 For electrical connection requirements, refer to diagram on motor nameplate and to information enclosed with the environmental control to be used. High Voltage, disconnect Single Phase and Three Phase Munters Drives: Power supply for fans to have Circuit power before servicing.
-
Page 14: Recommended Wiring
3.3 Recommended Wiring The Munters Drive fan ships configured for simple ON/OFF operation. When electrical power is applied to the main cable and the ‘RUN’ Switch is in the ‘ON’ Position, the fan will start and run at full speed. - Page 15 1 watertight fitting, they must be sealed on both sides of Munters Drive Box wall to prevent water infiltration. If you are going to run the Munters Drive with a signal from a control, carefully remove 6 screws and the cover and save to reinstall later.
- Page 16 Munters Drive Box, to the ‘OFF’ position. Now wire an ‘ON’ command from the ‘COMMON’ terminal to the input relay in the control and from the output of the control relay to the ‘RUN’ terminal in the Munters Drive Box.
- Page 17 Munters Drive Box, to the ‘OFF’ position. Now wire an ‘ON’ command from the ‘COMMOM’ terminal to the input relay in the control and from the output of the relay to the ‘RUN’ terminal in the Munters Drive Box.
- Page 18 Chapter 3 Electrical Wiring To Operate the Munters Drive variable with a 10-0V Signal, slide the ‘RUN’ switch, located on the circuit board in the Munters Drive Box, to the ‘ON’ position. Connect wires from the ‘0-10V IN’ and ‘0-10V COMMON’...
- Page 19 Chapter 3 Electrical Wiring To operate the Munters Drive Off/Variable with a 10-0V Signal, slide the ‘RUN’ switch, located on the circuit board in the Munters Drive Box, to the ‘OFF’ position. Now wire an ‘ON’ command from the ‘COMMON’...
-
Page 20: Operation And Maintenance
TEMPERATURE ADJUSTMENTS: Set the fan control to the temperature Moving parts, disconnect power before servicing. shown on your Munters ventilation system drawing, or to a value which will provide the desired environmental conditions. WARNING 4.2 Maintenance The following inspection and cleaning procedures should be performed... -
Page 21: Troubleshooting
3. Verify Prop turns freely an 'On' command is present. a. If not contact Munters Product Support b. If it turns freely go to next step 4. Turn AC power back on to fan a. -
Page 22: Winter Weather Protection
Munters Product and System manufacturers recommendations. The supplier listing above is given Warranties do not cover cone or fan as a reference only. Munters does not endorse any specific snow guard product and no performance warranty is implied. damage from external sources. -
Page 23: Exploded View
Exploded view © Munters Corporation, August 2017 QM1227r4... - Page 24 VX36 & VX48 Munters Drive Fan is developed and produced by Munters Corporation, Lansing Michigan U.S.A. 1-800-227-2376 Munters Europe AB, Isafjordsgatan 1, P.O. Box 1150, SE-164 26 Kista, Sweden. Phone +46 08 626 63 00, Fax +46 8 754 56 66.
