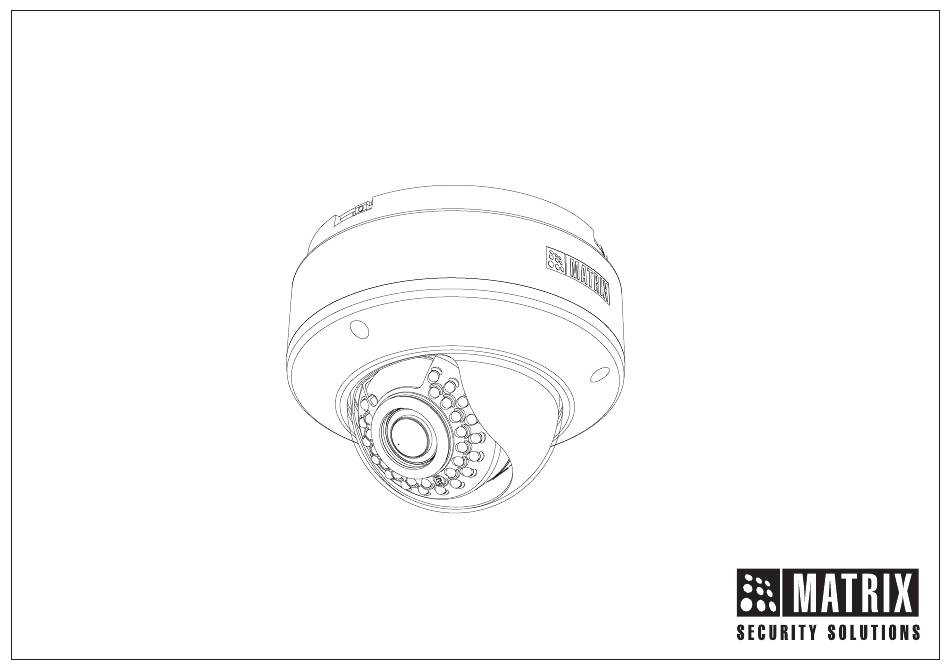

- Page 1 SATATYA Project Dome IP-Camera The Persistent Vision...
- Page 2 Consignes de sécurité Safety Instructions These instructions are intended to ensure that the user can Ces instructions ont pour but de garantir que l'utilisateur peut Utilisez use the product correctly to avoid danger or property loss. le produit correctement pour éviter tout danger ou perte de propriété. Cautions Précautions •...
-
Page 3: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to The Standard variant consists of 2 connectors: Power Connector and make changes in product design and specifications without prior notice. -
Page 4: What Your Package Contains
What your Package Contains You can capture near and broader view with lens of 2.8mm and 4.0 mm focal length. For example it can be used in ATM and Ÿ SATATYA Dome IP Camera Unit Elevators. Ÿ Wall Mounting Template Ÿ... -
Page 5: Installation
Installation Instruction Installation Before you start: 1. This product is intended to be supplied by a UL listed power supply unit marked “Class 2” or “LPS” or “PS2” and rated 12VDC, Please make sure, 2A min. Ÿ The device in the package is in good condition and all the assembly parts are included. -
Page 6: Installing Mounting Template
Step 3: Installing Mounting Template Step 4: Mounting the Camera • Stick the Mounting Template on the desired installation surface. A. On Wall/Ceiling • Drill three 7.5mm diameter holes through the markings of the • To avoid cable damage, take the Power, Ethernet, Audio IN, Mounting Template on Wall or Ceiling. - Page 7 Figure 4 • Insert the Ceiling Support Plate through the 50mm diameter hole as shown in Figure 6. Mounting ring Figure 6 Slit Base Plate Figure 5 Grove Grub screws False Ceiling Ceiling Support Plate • Place the Ceiling support plate over the false ceiling with keeping the clinching nuts towards the holes on mounting template.
-
Page 8: Ip66 Protection Accessory Installation
Step 3: IP66 Protection Accessory Installation Figure 8 1. By default your camera contains the LAN connector fitted by IP66 protection accessory. Mounting Ring Power cable Screws Figure 9 IP66 protection accessory 2. The IP66 protection assembly consist of tail end, middle part, “IO”... - Page 9 6. Insert male RJ45 connector into female connector part. Then tighten the middle part by rotating in clockwise direction. IP66 accessory LAN Connector Do not remove the “O” ring from its place. 4. Loosen the tail end of the IP66 accessory by rotating it in anticlockwise direction.
-
Page 10: Adjusting The Camera Angle
Adjusting Camera Angle Figure 11 Step1: Opening Lens cover • Use the Allen Key to loosen the Retainer screws on 3 sides of camera body. • The retainer screws will still remain loosely connected. • Open the lens casing body. •... -
Page 11: Powering The Camera
Figure 12 Powering the Camera • Connect the Ethernet cable to LAN port and Power cable to the 12V DC power supply. Power over Ethernet (PoE) The IP camera is PoE- compliant, allowing transmission of power and data via a single Ethernet cable connected to PoE switch. In Premium, Professional and Enterprise variants;... - Page 12 Accessing Reset Switch and SD card slot If you forget the IP address or login credentials of camera then the camera can be reset to factory default settings using the reset switch. Alarm Out To access the Reset switch Audio IN 1.
-
Page 13: Adjusting Focus And Zoom In Varifocal Cameras
Adjusting Focus and Zoom in Varifocal Cameras Network Configuration To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then install the software to configure the IP address. Steps to get the IP address: •... -
Page 14: Accessing Via Web Browser
System. respectively. • Click on Login. In Internet Explorer you can access the camera with Matrix ActiveX plugin. In other browsers you need to install Quicktime or VLC plugin. Steps: •... - Page 15 Ÿ Install the Camera software by clicking on Install. Ÿ The ActiveX control will get installed on your PC. Ÿ Now you can Run the plugin. Ÿ The home page of the camera will be opened and the live view will be displayed. 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M a a a a a 3 9 3 9...
-
Page 16: Technical Specification
5 to 95% RH Physical Missing Object, Suspicious Object, Object Counting and Loitering Detection events 158mm x 134mm Dimensions will work only in CIDR50MVL12CWP variants of Matrix IP Camera. 1.4 kg Weight Use BIS, CE, ROHS and FCC approved Adapters. - Page 17 Ÿ Consult the dealer or an experienced radio/TV technician for help. recyclers. If you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department.
- Page 18 MATRIX COMSEC Head Office 394-GIDC, Makarpura, Vadodara - 390010, India Ph: (+91)1800-258-7747 Email: Support@MatrixComSec.com www.matrixvideosurveillance.com...
