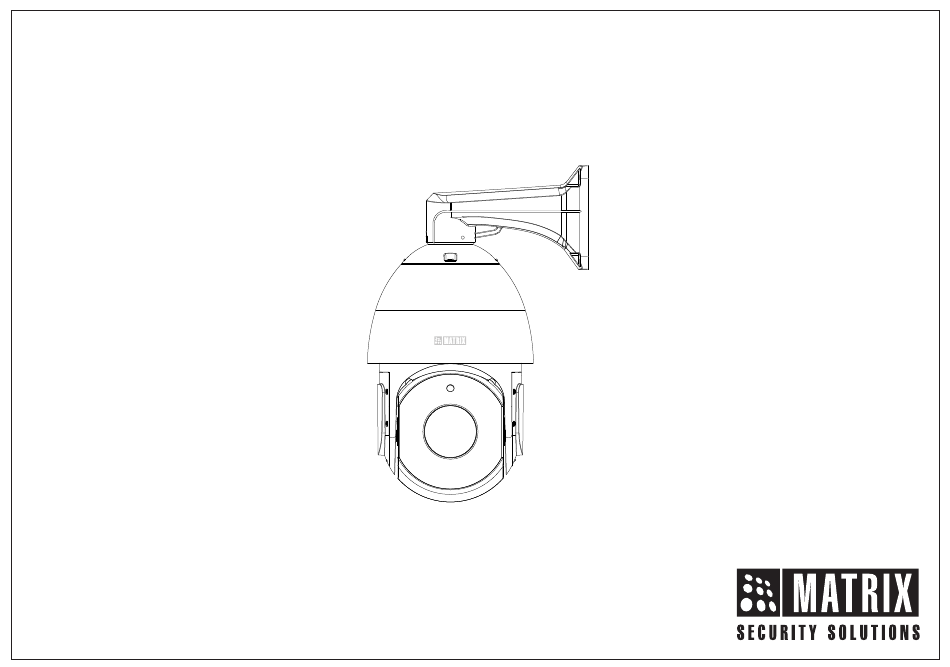

- Page 1 SATATYA PTZ IP-Camera The Persistent Vision...
-
Page 2: Safety Instructions
Safety Instructions Warning These instructions are intended to ensure that the user can In the use of the product, you must be in strict compliance with the • use the product correctly to avoid danger or property loss. electrical safety regulations of the region and nation. Cautions If smoke, odour or noise rise from the device, turn off the power at •... -
Page 3: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to make changes in product design and specifications without prior 1. -
Page 4: What Your Package Contains
What your Package Contains Camera Dimensions* • SATATYA PTZ2040P IP Camera Unit with Cable Assembly connected • Ingress Protection Accessories (4 parts) • Wire Rope with Hooks • Wall Mount Unit • Wall Mounting Template • Screw Pack for Wall Mount •... -
Page 5: Installation Instructions
Installation Instruction Step 3: Installing Mounting Template • Stick the Mounting Template at the exact location of camera The wired LAN hub providing Power over the Ethernet (PoE+) in installation. accordance with IEEE 802-3at shall be a UL listed device with the •... - Page 6 For Concealed Cabling Step 5: Mounting the camera • Wall Mount Pass the cables through the Wall Mount Unit and then pass it though the hole drilled in the wall . See Figure 3b. • Align the camera body with the Wall Mount Unit and match the camera screw holes with that of the Wall Mount Unit holes.
- Page 7 Figure 6b Ceiling Mount • You can mount the camera on the ceiling using the Ceiling Mount Unit (not provided by Matrix). • Mark the holes on the using the Ceiling Mount Unit and then drill the holes. See Figure 6a.
- Page 8 Figure 6c Tilt Step 6: PAN and Tilt The camera supports automatic adjustment of PAN and Tilt.
-
Page 9: Connecting Cables
Connecting the Cables Alarm IN Cable: To detect alarm events you can connect a sensor device to the Alarm IN cable of the camera. Alarm OUT Cable: To get alerts on alarm you can connect the alarm sounding device such as Hooter or Siren to the Alarm OUT cable of the camera. -
Page 10: Ingress Protection Accessory Installation
Ingress Protection Accessory Installation 4. Affix the O-Ring on the Ethernet Port Connector. 1. You need to connected the Ingress Protection Accessory to the Ethernet Port. Ethernet Port Connector O-Ring 2. The Ingress Protection Accessory comprises of the following: Holder, Rubber, Cap and O-Ring. 4. -
Page 11: Powering The Camera
Male Jack POE+ Ethernet Switch You can connect a 24V AC Adapter (not provided by Matrix) or 24V DC Adapter (provided by Matrix). The 24V DC Adapter has a Male Jack connector on one end and 3 PIN slot on the other end. The cable for the Adapter has a 3 PIN Plug at one end and a 3 PIN connector on the other end. -
Page 12: Accessing Reset Switch & Sd Card
Accessing Reset Switch & SD Card Slot LED: CLASS1 (Category RS1) If you forget the IP Address or Login credentials then the camera can be reset to factory default settings using the Reset Switch. Never look at the transmit laser while the power is on. Never look directly at the fiber ports and the fiber cable ends when •... -
Page 13: Network Configuration
System. your PC. Then install the software to configure the IP address. In Internet Explorer you can access the camera with Matrix Steps to get the IP Address ActiveX plugin. In other browsers you need to install Quicktime or VLC plugin. - Page 14 • The Home page of the camera will open and the live view will be displayed. 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M a a a a a 3 9 3 9 •...
-
Page 15: Technical Specification
-30 C to +70 C Material Metal Humidity Less than 90% Colour Infinity White +50 C * With IR LEDs constantly on, the maximum temperature will be Physical 206.6mm x 329mm Dimensions (Diameter x Height) 5.1 Kg Weight (Approx.) * Not provided by Matrix. -
Page 16: Fcc Compliance
If you are unable to dispose-off the products or unable to locate e-waste These limits are designed to provide reasonable protection against harmful recyclers, you may return the products to Matrix Return Material interference when the equipment is operated in a commercial environment. - Page 17 MATRIX COMSEC PVT LTD Head Office 394-GIDC, Makarpura, Vadodara, Gujarat, 390010, India Ph: (+91)1800-258-7747 Email: Tech.Support@MatrixComSec.com www.MatrixComSec.com...
