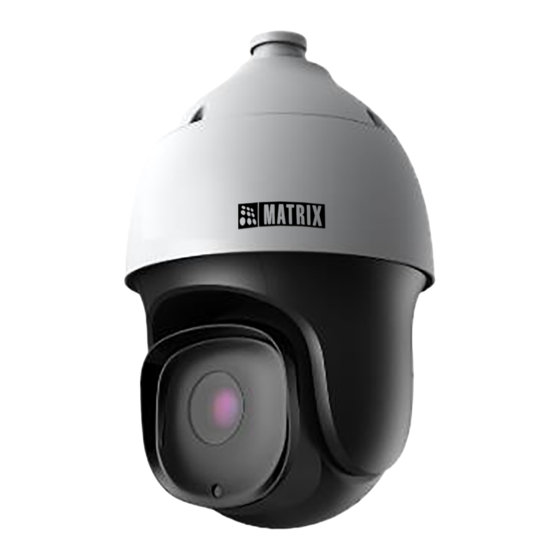

SATATYA PZCR20ML33CWP
System Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATATYA PZCR20ML33CWP and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix SATATYA PZCR20ML33CWP

Summary of Contents for Matrix SATATYA PZCR20ML33CWP

  • Page 1 SATATYA PZCR20ML33CWP System Manual...
  • Page 2 Neither Matrix Comsec nor its affiliates shall be liable to the buyer of this product or third parties for damages, losses, costs or expenses incurred by the buyer or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec operating and maintenance instructions.
  • Page 3 Preface Thanks for your kind of using our network dome camera products. This IP monitoring product is a dome camera, developed specially for monitoring network videos, which adopt the high-performance, single SOC chip to form a media processor integrating audio and video collection, compression and transmission with standard H.264 and H.265 code algorithms ensuring a clearer and smoother video transmission.
  • Page 4 Statement This manual may have inaccuracies, inconsistencies in the operation and function of the product or misprint. • We will update the information of the manual based on the enhancement and changes of product functions, which will be shown in the latest version of the manual without further notice.

  • Page 5: Table Of Contents

    Contents Precautions ......................... - 1 - Product overview ......................- 4 - 2.1 Main functions and characteristics ..............- 4 - 2.2 Main application occasions ................- 6 - 3. Installation Instructions ....................- 7 - 3.1 Preparation for Installation ................- 7 - 3.2 Installation methods of dome cameras ............

  • Page 6: Precautions

    1. Precautions The purpose of this Manual is to ensure that users can operate the products properly, thus avoiding danger or property damage. Please read this Manual carefully and keep it properly for future reference before using the products. As shown below, the precautionary measures are divided into two parts: “Warning”...
  • Page 7 can be privately repaired by the user. Repair work can only be performed by maintenance staff authorized by our company and we will not be responsible for any problem caused by unauthorized modification or maintenance of the product. Note: 1. Please check whether the power supply is correct before the camera starts functioning.
  • Page 8 temperature (-under 20℃). 13. Please use the product under the requirement of working environment. Parameters Dome camera Ambient temperature -40℃～+70℃ Ambient humidity <95% (no condensation) Atmospheric pressure 86～106KPa Power supply AC 24V/3.0A Attention: make sure that the outdoor installation of the dome camera meets the waterproof requirements 14.

  • Page 9: Product Overview

    2. Product overview This is a high-definition network high-speed dome camera, which are embedded digital monitoring product integrating traditional analog camera and network video server. They adopt embedded Linux operation system and advanced hardware platform, with high dispatching efficiency, code solidified in Flash, small volume, Low power consumption, high stability and reliability.
  • Page 10 loss / blocking alarm, email alarm, alarm link output; Voice intercom: two-way voice intercom, one-way voice acquisition / • broadcast; • User management: multi user limits management modes. Senior administrator can create 4 sub-levels of users with different level of user's rights for high system security;...

  • Page 11: Main Application Occasions

    set through the application or IE browser. Alarm link can be achieved through network; • Remote management and maintenance can be achieved through remote network maintenance / upgrading. 2.2 Main application occasions It is applicable to all kinds of occasions requiring remote network monitoring, such as: •...

  • Page 12: Installation Instructions

    3. Installation Instructions 3.1 Preparation for Installation (1) Basic requirements Ensure that all electrical work must be conducted in accordance with the latest electrical regulations, fire regulations and related regulations; check whether the packaging is damaged, equipment and accessories are complete, and determine whether the application places and installation methods of PTZ product meet the requirements;...

  • Page 13: Installation Methods Of Dome Cameras

    of safety factor. Please keep all packaging materials of network camera After unpacking the network camera, please keep the original packaging materials of network camera properly, and pack the network camera product properly using the packaging materials of network camera and return it to the supplier for handling in case of any problem.
  • Page 14 2：Picture of ceiling-like installation and dimensions Ø45 Ø118 Ø90 Ø9 Fig.3.2.2 Picture of dimensions of ceiling installation arm 3：Picture of exterior wall angle installation and dimensions 139 164 Fig.3.2.3 Picture of dimensions of external wall angle installation arm - 9 -...

  • Page 15: Illustrations Of Dome Camera And Interface Dimensions

    4：Picture of column-like installation and dimensions 139 165 Fig.3.2.4 Picture of dimensions of column-like installation arm 3.3 Illustrations of dome camera and interface dimensions This series of dome cameras adopt the split design with the joints of each part are mainly round. In order to facilitate the installation, the dimensions and specifications of this product have been listed, as shown in the figure below.
  • Page 16 Fig.3.3.3 V3 HD infrared network high speed dome camera dimensions specification Users can choose the bracket sold by our company, or customized bracket to install this product. The product interface dimensions are shown as follows: Fig.3.3.4 Picture of dome camera and interface dimensions - 11 -...

  • Page 17: Installation Steps(Take Wall-Mounted Installation As An Example)

    3.4 Installation steps(take wall-mounted installation as an example) 1、 Drill holes according to the dimensions of the bracket positioning holes. 2、 Hook up the body of dome camera, tighten the bracket screw, fix the dome camera and bracket and lock the spring buckle. 3、...

  • Page 18: Illustration Of External Wiring

    Note: 1. The installation surface of the wall-mounted installation bracket must have the capacity to bear enough weight. 2. The outdoor installation shall be completely sealed and moisture-proof; the outgoing cable shall be laid close to the lower edge of the wall mounted installation bracket to avoid rain entering the interior of the dome camera along the cable.
  • Page 19 Port Description Connect AC24V. Lighting protection ground wire: connect to the ground ① Power Port to avoid the damage of the equipment by lighting strike. Cable socket connects to the computer host or other network equipment. When connecting the network cable, it is ②...

  • Page 20: Descriptions Of Functions

    4. Descriptions of functions 4.1 Basic function description This section describes the main functions the dome camera and the general principles of implementation, no specific operation methods involved. The specific operation method of different system platforms varies. Generally, the operation manual of the system manufacturer shall prevail. In some cases, there will be some special requirements and operation methods.
  • Page 21 automatically scrusing queue in required order through pre-programming. The operator can easily and quickly control the keyboard or equipment to allow the dome camera automatically scan in the specified time interval according to the preset position sequence. Each cruise track can store 32 preset positons.

  • Page 22: Web Client

    5. WEB client 5.1 Operating Environment It is recommended to run under the operating system environment of Win7 and later. In order to better operate and use the system, and fully reflect the performance and effects, please ensure that the following items are set or installed correctly after the system is successfully installed: •...
  • Page 23 segment: for example, set the IP address of the computer to 192.168.1.3 to access the device through IE browser. Open the IE browser, enter the IP address of the network video device in the address bar, and click "go" to log in to the device.
  • Page 24 Set the login password in the activating device window and click Save to enter the IE login interface. Fig.5.3.1.2 Prompt box for activating device Click [Confirm]. 5.3.2 IE login interface Fig.5.3.2.1 IE login interface Enter the User Name and Password you have set and click Login. If the equipment port number is modified, you need to enter the correct port number, and the default port number is 3000.
  • Page 25 interface needs to be closed during installation. Fig.5.3.2.2 Download the video plug-in After the video plug-in is installed successfully, enter the device IP again and log in the correct account password to enter the preview interface. Fig.5.3.2.3 preview interface of video After you log in to the system, the prompt box of "change password"...

  • Page 26: Audios And Videos Preview

    Fig. 5.3.2.4 Change password prompt box) Fig. 5.3.2.5 Change the password 5.4 Audios and videos preview After successful login, the system will display the [Live View] interface by default. In other interfaces, users can return to the video preview interface by clicking the [Live View] button at the top of the interface.
  • Page 27 Click 2nd Stream; the video window will display secondary code stream after selection. Click 3rd Stream; the video window will display third code stream after selection. Click Fixed Ratio; the video will be displayed at a fixed scale. Click Fit Window; the video will automatically adapt to the computer resolution display.
  • Page 28 Click Full Screen. Full screen preview video will appear. Double click left mouse button or press the [Esc] key of keyboard to exit full screen preview video status Caution • All icons are valid when pressed. When there is no video in the interface, the audio preview is invalid. •...
  • Page 29 The slider can adjust the rotation speed of the device. The closer the "-" end is, the slower the speed is, and the closer the "+" end is, the faster the speed is. Zoom control button, press "-" control device to perform zoom operation, the field angle becomes larger and the scenery becomes smaller;...
  • Page 30 adjusted can be selected through the area exposure function to make moderate light of the key monitoring area. Area focus button: when there’s a deep and large scale scene area of the monitoring scene, you can select the part of the scene that needs to be focused clearly through the area focus function.
  • Page 31 5.4.3 Preset Click the icon to display preset function setting interface. Fig. 5.4.3.1 Preset interface • The function of the presetting bit is that the camera can store the location parameters of the PTZ under the current status such as the level angle, angle of inclination and the lens focal length of the camera into the storage and the PTZ as well as the camera can be adjusted to this position through calling the these parameters if necessary.
  • Page 32 Fig.5.4.4.1 VCA Action • [Auto cruise]: Arrange some preset into the automatic cruise queue as per the requirements. Calling of this cruise can ensure the automatic cycle call of the equipment as per the set preset order as well as the stipulated interval.
  • Page 33 HD effect adjustment, adjust night image effect. The effect is divided into:： Outdoor、 Indoor、 WDR、 Motion、 Bright、Colorful、customized .etc. Button for WDR function. Click the button to turn on WDR function.(Some models support this function). Button for HLC function. Click the button to turn on HLC.(Some models support this function).

  • Page 34: Playback

    5.5 Playback Click [Playback] to enter the [Playback] interface. Fig.5.5 playback 5.5.1 Refer to the front-end video file In the playback interface, the user can view the video files of the specified date, and can also snapshot and clip the video. See the following table for basic operation: Icon Description...
  • Page 35 Browse button, select the video file to play. Playback snapshot button, saved by default in C:\Users\john\NetVideoBrowser\CapturePics\。 Playback clip button: Click to start the clip, and click again to finish the clip. The default saving location is C: \ users \ XYZ \ snapshotpictures \.
  • Page 36 Icon Description Set the type of file to be queried, such as [Record], [Picture], etc. Select the type of video file to be queried. (Supported by some models) Select the start time of the video query Select the end of the recording query Start downloading selected video files Stop the selected video file being downloaded.

  • Page 37: Log

    5.6 Log Click [Log] to enter the [Log] interface. Fig.5.6 Log Interface Log interface operation instructions • • Select the channel number to query from the [Channel No.] drop-down list. • Select the type of log you want to query from the [Log Type] drop-down list. Select the start date in the [Start Time] drop-down list, and enter the time in •...

  • Page 38: Configuration

    5.7 Configuration After login, [ Live View ] will be displayed by default. Click [Configuration] in the menu bar at the top of the page to enter the parameter configuration page, where you can set common settings, audio and video parameters, network settings, intelligent analysis, storage settings and system settings.
  • Page 39 • [DNS]: Set the DNS server address. [HTTP Port]: Enter [HTTP port number] in the input box on the page, restart • the device, and then modify the HTTP port number. • [RTSP Port]: Enter [RTSP port] in the input box on the page, restart the device, and then modify the RTSP port number.
  • Page 40 Basic Set - > Audio • [Audio Encoding]: Set the audio coding mode • [Audio Sample Rate]: Set the audio sampling rate [Volume value]: Can adjust the output sound, range is 100 ~ 0, The smaller • the value of the device output audio signal amplitude is smaller; The greater the number of devices output audio signal amplitude is greater.
  • Page 41 [Edit] In the user list, click [Edit] to open the password modification prompt box, input the old password, new password and confirm the password, and then click Modify. [Remove] In the user list, click [Remove] to open the prompt box and click OK Basic Set - >Other buttons •...

  • Page 42: Audio Video Set

    5.8 Audio Video Set 5.8.1 Stream Stream- > Stream Fig.5.8.1.1 Stream - Stream interface Related parameters of video configuration are illustrated as follows: Parameters Description The video related parameters of the main stream, the sub stream and the third stream can be modified. Select the corresponding Stream code stream of the family and modify the parameters of the corresponding code stream...
  • Page 43 Tip: select the required resolution from the [resolution] drop-down list, and the code stream can be switched to the specified [code rate]. When [compression method] is [constant rate], the [code rate] represents the actual code rate of the code stream; when [compression method] is [variable rate], the [code rate] represents the maximum allowed code rate of the code stream.
  • Page 44 some browsers or playback software do not support h.265. Switch S + on and off can be selected from the drop-down list. When S + is enabled, functions such as compression mode, video quality, I-frame frame rate and key area will not be available. According to the actual situation, user can select [On] or [Off] to Electronic Image optimize the picture quality and prevent shake.
  • Page 45 available), [Encrypt password] set the encryption password, and [password confirmation] input the encryption password again to ensure that the password entered twice is the same. Click [Save] to take effect. After setting, click Save to take effect. Click [Cancel] to discard the changes. Stream - >...
  • Page 46 • [ROI Upgrade Level]: According to actual needs, set image quality of key region, such as [Best], [Better], [Good], [Normal] and [Poor], etc. Note: After adjusting the resolution, video coding and other options, you need to adjust the code rate, compression coding and other parameters according to the actual image effect.
  • Page 47 The input sound size can be adjusted, and the adjustment range is 0-50. The smaller the value is, the smaller the input audio signal Audio Input amplitude of the device is; the larger the value is, the larger the input audio signal amplitude of the device.
  • Page 48 Fig.5.8.3.1 Image interface Image - Template Selection [N/P Mode]: Select the needed N/P Mode in drop-down list of [N/P Mode]. It • can be set as [PAL] or [NTSC]. • [Image Position:] Select the method to display image mirror in [Image Position].
  • Page 49 Image –Exposure Set Click the button next to [Exposure Set] to expand the [Exposure Set] setting interface. Parameters Description It is mainly used for infrared night vision model. When the overexposure scene appears in the picture, the camera will SmartIR automatically reduce the brightness if this function is turned on to avoid unclear objects due to overexposure.
  • Page 50 Adjusting the maximum gain value can compensate the picture of brightness under low illumination. The larger the Max Gain Set gain value is, the higher the brightness will be, but the greater the noise will be Fig. Brightness Set up the desired Brightness value.
  • Page 51 Image –Back Light Set Click the button next to [Backlight] to expand the [Backlight] setting interface. Parameters Description It is mainly used in road monitoring scenes. It can suppress the glare such as car headlights after being turned on, thus reducing the effect of glare. Select the option for WDR from the drop-down list.
  • Page 52 mode] and [expert mode]. Select [ordinary mode], display the [denoise level] slider, drag the slider to set the noise reduction level. Select [expert mode], and the sliders of[ space denoise level] and [time denoise level ]will pop up respectively. Drag the two sliders to set [airspace noise reduction level] and [time domain noise reduction level] respectively.
  • Page 53 Image settings - > Day/Night Fig.5.8.3.3 Day/Night setting interface Parameters Description It can be set as color, B/W, Schedule or Self-Adaptive. [Black and White]: The device video is always in black and white mode. [Color]: The device video is always in color mode. Color to B/W Type [Schedule]: In the timing mode, users can specify the dawn time and dark time.
  • Page 54 When it is set to Self-Adaptive template, you can set up the brightness point of black to color conversion. (when it DayRange is higher than the brightness value in the daytime, it turns to the daytime mode) When it is set to Self-Adaptive template, you can set up the brightness point of color to black conversion.
  • Page 55 Fig.5.8.4.1 OSD Interface [Stream]: Select the code stream to stack character information. [Channel Title] Select the [Channel Title] check box to overlay the channel name on the • screen. • Enter a name in the input box on the right to set the channel name. From the [Color] drop-down list, select the color you like for the •...
  • Page 56 [Show Week] check box. As required, the time can be displayed in 24-hour or 12-hour mode. Select • the corresponding option from the 2 buttons below. • From the [Color] drop-down list, select the color you like for the superimposed content. •...
  • Page 57 OSD->LOGO Fig.5.8.4.2 OSD-LOGO Enter the path of the image file in the [LOGO File] input box, or click the • [Browse] button to find the image file in the pop-up window. • After clicking the [Upload] button, the picture will be uploaded to the equipment, and the equipment will restart automatically after uploading the picture.

  • Page 58: Dome Set

    OSD- > Privacy Mask Fig.5.8.4.3 Privacy Mask setting interface According to the user's needs, Shelter area can be set up on the picture according to the user demand to protect key information from being seen. 24 shelter areas can be set up at most for each equipment. Draw up the area to be sheltered in the small preview window.
  • Page 59 5.9.1 Basic Set Basic Set ->Basic Information Fig.5.9.1.1Basic Information [Auto Flip Enable]: When the perpendicularity of the dome camera is 90°, • the dome camera will rotate horizontally by 180° if moving along the original direction continuously. • [Preset Freeze Enable]: During the calling of preset, the image will stop at the preset all the time without showing the image during the calling and will come back when reaching the calling preset.
  • Page 60 • [Enable Proportion Zooming]: It will adjust the operating speed automatically with the variable magnification figure after starting; if not, all zooming speed is the same, so it is better to start. • [Enable Scan Record]: After starting, it will record during scanning, and the video files will be stored in the front-end storage medium.
  • Page 61 such as preset 1, scanning 1, cruise 1 and mode 1. Click the save button to save setting after modifying the standby action. • [Standby time (s)]: Select the [Start] option button behind the standby action to set the standby time. The standby time includes 30, 60, 300, 600 and 1800.
  • Page 62 the scanning number range 1-8, the cruise number range 1-16, the mode path number range 1-8 and the regional instruction number range 1-8. • [Title Type]: Preset, Auto Scan, Auto cruise, Mode and Zone are optional. • [Title Name]: Set the title name. 5.9.2 Motion Set Motion Set->Motion Set Fig.5.9.2.1 Motion Set Interface...
  • Page 63 • [Focus Mode]: The focusing mode of the preset can be automatic and fixed. [Set]: The user can operate the dome camera and click [Set] to store it at • the current position when reaching to an expected position. • [Delete]: Click [Delete] to delete the preset of the corresponding number.
  • Page 64 store the current position as the scanning route left boundary after reaching the expected position. • [Border 2]: The user can operate the dome camera and click [Border 2] to store the current position as the scanning route right boundary after reaching the expected position.
  • Page 65 • [Delete]: Click [Delete] to delete the regional instruction of corresponding regional instruction numbers. Motion Set - Limit set • [Enable Limit]: After checking, the movement area of the dome camera will be controlled in the limit area. • [Set]: Clicking the set button, the left preview window will show the prompt information: Set the upper/lower/left/right limit according to the prompt information;...

  • Page 66: Network

    of the week. [Click Confirm]. 5.9.3 Remove Config Fig.5.9.3.1Remove Config In the configuration clear interface, including select all, clear all preset, all cruise route, all scanning, all location limitation settings, standby operations, all mode path, all regional instructions, select the items to be cleared, click the clear button to clear the corresponding PTZ configuration.
  • Page 67 Fig.5.10.1.1.1 IPv4 setting interface Fig.5.10.1.1.2 IPv6 setting interface - 62 -...
  • Page 68 Fig.5.10.1.1.3 other setting interface • [DHCP]: Set whether the DHCP server automatically assigns IP to the device. [IPv4 Address]: Set the IP address, subnet mask and gateway of the • device. • [IPv6 Address]: This device supports IPv6.The user can select IPv6 mode as router announcement / DHCP / Manual mode in IPv6 setting.
  • Page 69 • [RTSP Path]: Refer to the example path in the interface. Check enable intranet search to enable this function. • [Save]: Save the current settings. • [Cancel]: Restores the last saved parameter. Basic Set - > DDNS Fig.5.10.1.2 DDNS setting interface After checking [Enabled] DDNS, modify equipment [Server Domain], set [DDNS Domain], [User Name], [Password ]and [ ], and then...
  • Page 70 Only when port mapping is enabled, can the ports of network devices be opened normally. Port mapping methods include automatic and manual. • When "Auto" mode is selected and UPnP is enabled, users do not need to do port mapping on the router, only need to turn on the UPnP function on the router.
  • Page 71 Fig.6.3.2.1 IP Filter setting interface IP firewall, also known as black-and-white list, is provided for users to manage access rights more flexibly. • [Disable]: Select the[Disable] button to remove the restriction of the black and white list. All IP addresses can be accessed, not only the IP addresses in the list.
  • Page 72 list, and then click [Save] to make the blacklist effective. At this time, the login request from any IP in the list will be rejected, regardless of whether its user name and password are correct or not. Note: when adding the blacklist, please confirm whether the IP address of the current user is added.
  • Page 73 After the user enables mail, the alarm server will automatically send alarm mail to the mailbox address set by the user when an alarm occurs. • The email server address input format is smtp.xx.com, where XX represents the email server and is the login email of the account, for example, smtp.163.com.
  • Page 74 Advanced Set - > Multicast Fig.5.10.2.5 Multicast setting interface Input the multicast [IP Address] (range: 224.0.0.0-239.255.255.255), input the Port number (range: 1-65535), and click Save to restart the device. Advanced Set - > QoS settings Fig.5.10.2.6 QoS setting interface [Audio/Video DSCP] input the DSCP parameters in the input box, disconnect and reconnect the video stream parameters to take effect, and [Event DSCP]...
  • Page 75 Advanced Set - > 802.1x Allow users to choose [EAPO version] "802.1x-2001" or "802.1x-2004", set [user name], [password], [password confirmation]. [Current Status] displays the current connection status, click [Save] to save the parameters, [Cancel] to discard the changes. After the parameters are saved, the device can automatically connect;...
  • Page 76 • [Save]: Save the current settings. [Cancel]: Restores the last saved parameter. • Advanced Set - > Register Center Set [Server Name], [Server], [Port], [User Name], [Password] in • [Registration Center]. • Click [Save] to save the current settings. • Click [Cancel], to restore the parameters saved last time.

  • Page 77: Event Schedule

    • [HTTP authentication type]： Digest and Digest & Basic authentication types are supported. • [Save]: Save the current settings. • [Cancel]: Restores the last saved parameter. Advanced Set - >HTTPS Fig.5.10.2.10 HTTPS Interface • Import and install HTTPS certificates as needed. [Browse]：...
  • Page 78 Fig.5.11.1.1.1 Event input setting interface Set port event detection related parameters. • Select the input port, check the [Enable] check box to enable the port alarm detection function, and uncheck to turn off the port alarm detection function. Select the desired port from the list. •...
  • Page 79 Fig.5.11.1.1.2 Linkage Mode Setting Interface Click [Save] to save the corresponding parameter settings, and click [Copy • to…] copy the parameters of the current port number to other port numbers. Click [Cancel] to restore the last saved parameter. Event Management - > Event Output Fig.5.11.1.2 Event output setting interface •...
  • Page 80 state through [Delay Time(s)]. Click [Save] to save the corresponding parameter settings. • • Click [Cancel] to restore the last saved parameter. Event Management - > Motion Fig.5.11.1.3 Motion setting interface The user sets the mobile alarm area. When there is an object moving in the setting area, the video preview interface will prompt the video mobile alarm, and the corresponding alarm linkage will be carried out according to the setting.
  • Page 81 within the set date and time period. Set [Linkage Mode] to realize the alarm linkage after triggering the alarm, • such as [Alarm Output], [Linkage Snap], etc. • Click [Save] to save the corresponding parameter settings. Click [Cancel] to restore the last saved parameter. •...
  • Page 82 within the set date and time period. Set the [Linkage Mode] to realize the alarm linkage after triggering the • alarm, such as [Alarm Output], [Link Snap], etc. • Click [Save] to save the corresponding parameter settings. Click [Cancel] to restore the last saved parameter. •...

  • Page 83: Smart Surveillance

    5.12 Smart surveillance (VCA） 5.12.1 Create Rule Create Rule ->Event Set Fig.5.12.1.1 Event Set interface [Enabled]: Enables or disables the intelligent analysis function of the • current channel. When the AEW speed dome starts the intelligent analysis, the speed dome will scan the surrounding to revise the orientation automatically to promote the tracking accuracy.
  • Page 84 • [Event Type]: Displays the option you select in Event Selection. Arithmetic - Behavior Analysis [Behavior Analysis]: The algorithm includes tripwires, double tripwires, perimeter, items left over, items lost, wandering, running, heat map. Arithmetic - Behavior Analysis - Tripwire Fig.5.12.1.2 tripwire setting interface Select [Rule ID] that is the rule number and select [Specification Type] as •...
  • Page 85 Arithmetic - Behavior Analysis - Double Tripwire Fig.5.12.1.3 double tripwire setting interface Select [Rule ID] that is the rule number and select [Specification Type] as • Double Tripwire. • Draw two rule lines, the arrow of line means direction of prohibit crossing, 2 lines direction should be the same, it will alarm when target object cross 2 lines continuously within the specified time.
  • Page 86 Note: The alarm will occur when trip wire 1 and trip wire 2 are triggered continuously within the minimum and maximum time interval of line crossing. Arithmetic - Behavior Analysis - Perimeter Fig.5.12.1.4 perimeter setting interface • Select [Rule ID] that is the rule number and select [Specification Type] as Perimeter.
  • Page 87 • Select the check boxes of the desired options to be displayed -- alarm event count, alarm rules number and whether to display the target. • Click [Save] to save all the settings or click Cancel] to restore the last saved parameter.
  • Page 88 Note: The alarm will occur after the still target appears in the area and reaches the set event time. Arithmetic - Behavior Analysis - Missing Object Detection Fig.5.12.1.6 Missing Object Detection setting interface • Select [Rule ID] that is the rule number and select [Specification Type] as Missing Object Detection.
  • Page 89 Arithmetic Behavior Analysis Loiter Fig.5.12.1.7 Loiter setting interface • Select [Rule ID] that is the rule number and select [Specification Type] as Loiter. • Draw detection area on the image. • Set the [Event Time], that is the alarm time for which the object stays in detection area, it will trigger alarm when time exceeds the set time.
  • Page 90 Arithmetic Behavior Analysis Running – Fig.5.12.1.8 running setting interface Select [Rule ID] that is the rule number and select [Specification Type] as • Lioter. • Draw detection area on the image. • Setup [Min Area]. The alarm will trigger when the object’s running area is equal to or greater than this min area.
  • Page 91 Event Type - Behavior Analysis - Heatmap Fig.5.12.1.9 heat map setting interface Select [Rule ID] that is the rule number and select [Specification Type] as • Heatmap. • Draw detection area on the image. • Setup Minimum Area, alarm will be triggered when the object’s running area is equal to or greater than this minimum area.
  • Page 92 Event Type - Behavior Analysis - Parking Fig.5.12.1.9 heat map setting interface • Select [Rule ID] that is the rule number and select [Specification Type] as Parking. • Draw detection area on the image. Set the [Event Time], that is the alarm time for which the object stays in •...
  • Page 93 Behavior analysis Linkage Tracking Fig.5.12.1.10.1 Linkage tracking setting interface • Select [Screen No] and enter the [Screen Name], if required. • Select the Behavioral Analysis check box for [Event Selection]. • Select the Linkage Tracking check box for [Event Type]. •...
  • Page 94 Fig.5.12.1.10.2 tracking time setting interface • Select the Display Target check box if required. Click [Save] to save all the settings or click Cancel] to restore the last • saved parameter. Arithmetic Demographics – Fig.5.12.1.12 Demographice setting interface - 89 -...
  • Page 95 • Select [Screen No] and enter the [Screen Name], if required. • Select the Demographics check box as [Event Selection]. The [Mode] will be set as Statistics of staffs in the area. • Draw detection area on the image. • Setup [Max Target Size] and [Min Target Size], the size means target width compare to screen width.
  • Page 96 • Select [Screen No] and enter the [Screen Name], if required. • Select the Crowd Detection check box for [Event Selection]. The [Mode] will be set as Statistics of staffs in the area. • Draw the crowd gathering detection area on the image. Set the [Density Threshold].
  • Page 97 • Select [Screen No] and enter the [Screen Name], if required. • Select the On Duty Detection for [Event Selection]. • Draw the duty detection area. • Select the [On-duty Number]. • Set the Absences Alarm Time. This alarm will be raised when the person’s absence time exceeds the set time.
  • Page 98 • Select [Screen No] and enter the [Screen Name], if required. • Select the Safety Helmet Detection for [Event Selection]. • The [Event Type] will display Safety Helmet Detection. • Select the [Monitoring Area] as Gateway or Construction Area. Draw the monitoring area, entrance or exit or construction area according •...
  • Page 99 Arithmetic Video Detection Fig.5.12.1.17 Video Detection Setting Interface • Select [Screen No] and enter the [Screen Name], if required. • Select the Video Detection for [Event Selection]. [Event Type] will display Video Detection. • • Enable the [Lens Dignose] and/or [Scene Switch Dignose] check box. •...
  • Page 100 • Select the Audio Detection for [Event Selection]. • [Event Type] will display Audio Detection. • Select the [Signal Loss Detection] and/or [Signal Abnormal Detection] check box. • Set the [Sensitivity] the higher the value, the higher the sensitivity and the false detection will also increase.
  • Page 101 • Click [Set tracking], to set the needed tracking manually. Set the parameters as per your requirement. When tracking, it will track the target as per the set parameters. Click [Save]. • To display the target select the [Display Target] check box. Click [Save] to save all the settings or click Cancel] to restore the last •...
  • Page 102 To clear the selection for all the days, click Delete All. Click the green icon on the right to select the day of the week. Copy to.. Fig.5.12.1.21 Copy to interface Click [Save]. Click [Next] to enter [Linkage Mode] setting. - 97 -...
  • Page 103 Create Rule->[Linkage Mode] Fig.5.12.1.22 Linkage Mode setting interface Set the alarm linkage function when the alarm occurs. For example: [Alarm Output], [Link Rec], [Linkage Snap]. Click [Save] to save the parameter settings. Click [Cancel] to restore the last saved parameter. 5.12.2 Shield Area Fig.5.12.2 Shield Area setting interface - 98 -...
  • Page 104 Shield Area refers to reducing the false alarm rate by drawing the area in the scene and not using the target in the drawn area as the warning target. For example: lights, branches and so on. Support the blocking area settings of intelligent analysis scene and alert scene, select the corresponding scene, click [Enabled] check box and draw the area in the screen.
  • Page 105 Fig.5.12.3.2 Scheduled Cruise setting interface • The cruise mode is used to set the scene cruise of different intelligent analysis, and can be set to be timed cruise and cruise by time period (scheduled cruise). The cruise order can be adjusted through the up and down button on the interface.
  • Page 106 5.12.4 Advance Params Fig.5.12.4 Advance Params [Advance Params]: is only available for company engineer to setup. Upon the completion of the setting of the above parameters – Scene and Object, click [Save] to save and enable; Click [Cancel] to restore parameters saved last time.
  • Page 107 data in the local. 5.12.6 Online VCA Log Fig.5.12.6 Online VCA Log setting interface • [Scene No.]: check alarm information about the related scene. • [Event]: check certain or all VCA events alarm information. • [Rule ID]: check certain or all rule’s alarm information. •...

  • Page 108: Storage

    5.13 Storage 5.13.1 Schedule Recording Schedule Recording -> Schedule Recording Fig.5.14.1.1 Schedule Recording setting interface Switch the drop-down box to select the target video type, set the arming time, retention time (days), select the pre-recorded time, postpone the time. [Record Status]: Show the device recording status. [Record Beings]: Click to test beings switch to start recording and stop recording.
  • Page 109 [Offline Video Recording]: when the internet is disconnected, it will start timing recording into camera SD card. Click the [Save] button to save the settings .Click the [Copy to…] button to copy the setting to other ports. Click [reset] will cause the parameters to be restored.
  • Page 110 5.13.2 Picture Setting Fig.5.14.2 Picture Setting interface • Set the desired [Resolution]. • You can Enable/Disable [Timing Capture]. Select the desired option from the drop-down list. • [Interval]: Enter the desired time interval in the input box. You can enter the desired value and select the desired unit from the drop-down list (hourly, minutes, second).
  • Page 111 5.13.3 Disk Management Fig.5.14.3 Disk Management The interface can show the remaining capacity, total capacity of the current hard disk and virtual disk, as well as the disk use, with video, backup, redundancy and read-only four options Click [initialize Disk], to select a particular piece of disk from the list and •...

  • Page 112: System

    FTP setting interface • Set the [Server URL], [Port], [Path], [User Name] and [Password]. Click [Save], to set the FTP server information. • • Click [Cancel], to restore the last saved parameter. • Click [Test], to Test whether the settings are correct and effective. 5.14 System 5.14.1 System System - >Allocation of Resources...
  • Page 113 • [Smart surveillance]: Common monitoring mode includes intelligent algorithms such as behavior analysis, crowd gathering, video diagnosis, audio detection etc. System - > Time Fig.5.15.1.2 Time setting interface [Region]: Select the Region from the drop-down list. • • [Synchronization Time]: The synchronization equipment time is the same as the local time.
  • Page 114 • Click [Save] to save the currently set parameters. Click [Cancel] to restore the last saved parameter. System - > Serial Port Fig.5.15.1.3 Serial port setting interface • Serial Port settings are divided into [Serial Port Set] and [Protocol Set]. [Serial Port Set] you need to select [serial port number], [baud rate], [parity •...
  • Page 115 5.14.2 Users Users->users Fig.5.15.2.1 Users Fig.5.15.2.2 Add User - 110 -...
  • Page 116 Fig.5.15.2.3 Modity password [Add User] To add a new user, enter the user name, password, confirm password and set the permissions (authority). The user name and password can only be entered in English letters and Numbers. Click [Save] button. Note: Only the administrator can add and modify users. [Modify password] In the user list, click [edit] and then pop up appears to change the password.
  • Page 117 Users->Connection Fig.5.15.2.3 Connection interface Displays a detailed list of connects/logins to the device, including channel type, network mode, client IP, and user name. Click [Refresh] to update the list. - 112 -...
  • Page 118 5.14.3 Maintenance Maintenance->Maintenance Fig.5.15.3.1 Maintenance interface [Device Control] Allows you to perform [Basic Reset], [Factory Reset], [Reboot], [Lens Reset], [Open Telnet] and other operations. [Configuration In/Out] Allows you to import or export data. [Import ]/ [Export] is used for equipment maintenance, mainly divided into three categories: (1) [Event Server] options include alarm time period and linkage item setting information, excluding intelligent analysis.
  • Page 119 alarm, intelligent analysis, logo, storage strategy and local setting, including video parameters, HD parameters, character superposition, video recording strategy, network setting and other information. [Auto Maintenance] Set the automatic reboot time of the dome camera to conduct automatic maintenance. Maintenance - > Upgrade Fig.5.15.3.2 Upgrade interface Upgrade - Version Information [Version Information]: It includes equipment information such as [Factory ID],...
  • Page 120 shall be conducted under the guidance of the company's technical personnel. [Browse]: Find the upgrade file in the pop-up window. [Upgrade]: Upgrade to the latest version through the network. 5.14.4 Local PC Settings Fig.5.15.4Local PC Settings Set the storage path for the following: [Record Video / Live Snapshots / Playback Snapshots / Video Clips / Downloaded Files / VCA Snapshots].
  • Page 121 [Enable GPU Acceleration]: Select the check box. After Video re-connects this will take effect. Note: If the video preview is bad or the system crashes, you need to disable the GPU acceleration, because the PC hardware driver does not match. - 116 -...

  • Page 122: 6．Simple Troubleshooting

    6．Simple Troubleshooting Fault Possible reason Troubleshooting method Description Power supply damaged Change the power supply insufficient No action ,image Amend, pay attention to the positive Wrong power-line connection self-checking and negative side of DC power supply when powered on troubleshoot the circuit and measure Wiring problem the terminal voltage of the dome camera...
  • Page 123 Substitute for high-performance NVR, Insufficient performance of back-end decoder other decoding decoding equipment equipment. Front-end dome camera serial port Serial port setting error shall be COM2 Cannot control the dome camera Adjust control parameters of control Baud rate, protocol or address error Measure the voltage of the dome Insufficient power supply and unstable camera terminal to ensure the power...

  • Page 124: After-Sales Services

    7. After-sales Services For the high-definition network series camera produced in our company, we promise one-year warranty. During the product warranty period, the company provides free maintenance services, but in case of the following circumstances, the material cost and labor cost shall be charged as appropriate: 1.

  • Page 125: Appendix I Lightning Protection And Surge Protection

    8. Appendix I Lightning Protection and Surge Protection Lightning and surge protection shall be considered for outdoor cameras. On the premise of ensuring electrical safety, the following lightning protection measures can be taken: 1. The signal transmission line must be kept at least 50 meters away from the high-voltage equipment or high-voltage cable;...
