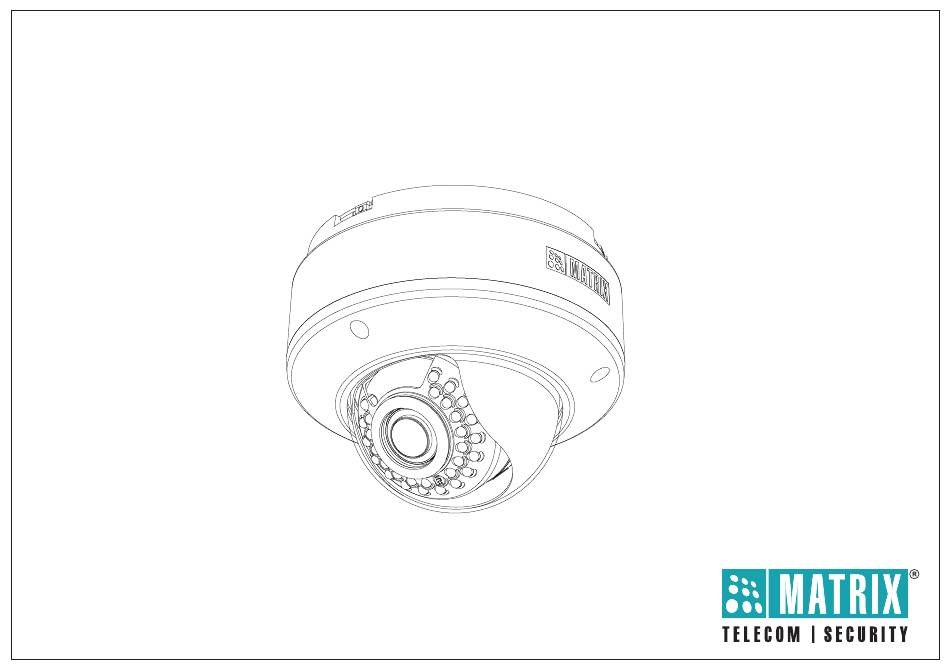

- Page 1 SATATYA PROJECT DOME IP-Camera The Persistent Vision...
-
Page 2: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information In the use of the product, you must be in strict compliance with in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to the electrical safety regulations of the region and nation. -
Page 3: Know Your Camera
Know your Camera What your Package contains Ÿ SATATYA Dome IP Camera Unit Ÿ Wall Mounting Template Ÿ Wall Mounting Screws with Screw Grip (3 nos.) Ÿ Allen Key Ÿ Cable Accessories compliant with Ingress Protection Ÿ Ceiling Support Plate Ÿ... -
Page 4: Installation
Installation The respective available variants are listed in below: Resolution with Focal Before you start Standard Premium Type of Lens Length(mm) Please make sure: Ÿ The device in the package is in good condition and all the assembly parts are included. CIDR20FL28CWS CIDR20FL28CWP Ÿ... -
Page 5: Installing Mounting Template
Step 3: Installing Mounting Template Step 4: Mounting the Camera • Stick the Mounting Template on the desired installation surface. A. On Wall/Ceiling • Drill three 7.5mm diameter holes through the markings of the • To avoid cable damage, take the Power, Ethernet, Audio IN, Mounting Template on Wall or Ceiling. - Page 6 • Insert the Ceiling Support Plate through the 50mm diameter Figure 4 hole as shown in Figure 6. Mounting ring Figure 6 Slit Base Plate Figure 5 False Ceiling Grove Grub screws Ceiling Support Plate • Place the Ceiling support plate over the false ceiling with keeping the clinching nuts towards the holes on mounting template.
-
Page 7: Adjusting The Camera Angle
Step 5: Adjusting Camera Angle Figure 8 Opening Lens cover • Use the Allen Key to loosen the Retainer screws on 3 sides of camera body. • The retainer screws will still remain loosely connected. • Open the lens casing body. Mounting Ring •... - Page 8 Figure 11 Figure 12 50.0° 50.0° Thumb screws • For Tilt movement you can move the camera from 12.5 to maximum 55 degrees, see Figure 13. Figure 13 PAN, TILT movement • Loosen thumb screws on both sides of lens for PAN movement, see Figure 11.
-
Page 9: Ingress Protection Accessory Installation
Adjusting Focus and Zoom in Varifocal Cameras Step 7: Ingress Protection Accessory Installation 1. The Ingress Protection Accessory comprises of the following: Holder, Rubber, Cap and O-Ring. You need to pass the RJ45 cable with connector through each in the sequence as shown below. -
Page 10: Connecting Cables
2. Affix the O-Ring on the Network Port Connector as shown 4. The Ingress Protection Accessory is connected with the camera. below. Power Cable Step 8: Connecting the Cables Network Port Connector • Connect the Ethernet cable to LAN port and Power cable to the 12V DC power supply. -
Page 11: Accessing Reset Switch & Sd Card Slot
Accessing Reset Switch and SD Card Slot If you forget the IP Address or Login Credentials of camera, the camera can be reset to factory default settings using the Reset Switch. Alarm Out Audio IN To access the Reset Switch, Alarm IN 1. -
Page 12: Network Configuration
Network Configuration Accessing via Web Browser To view and configure the camera via LAN (Local Area Network), The IP cameras are supported by Microsoft Windows Operating you need to connect the camera in the same subnet with your PC. System. Then install the software to configure the IP Address. - Page 13 • The home page of the camera will open and the live view will be displayed. SATATYA CIDR20FL36CWS SATATYA MIBR20FL36CWS Persistent Vision Persistent Vision 2 9 - A u g - 2 0 1 9 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M 0 3 : 2 9 : 1 5 P M a a a a a 3 9 3 9...
-
Page 14: Technical Specification
Technical Specification Technical Specification Specification Standard Premium Specification Standard Premium Power Supply Storage Adapter * 12V DC (802.3af, Class 2) SD Card 12VDC ; Max: 7.5W Power Casting PoE Supported Consumption Material Aluminium Die Cast 12VDC; Max: 7.5W Colour Infinity White PoE Supported Physical 12VDC;... - Page 15 Head Office If you are unable to dispose-off the products or unable to locate e-waste 394-GIDC, Makarpura, Vadodara, Gujarat, 390010, India recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. Ph: (+91)1800-258-7747 Email: Tech.Support@MatrixComSec.com www.matrixcomsec.com...
