Summary of Contents for Matrix SATATYA MIDR20FL28CWS

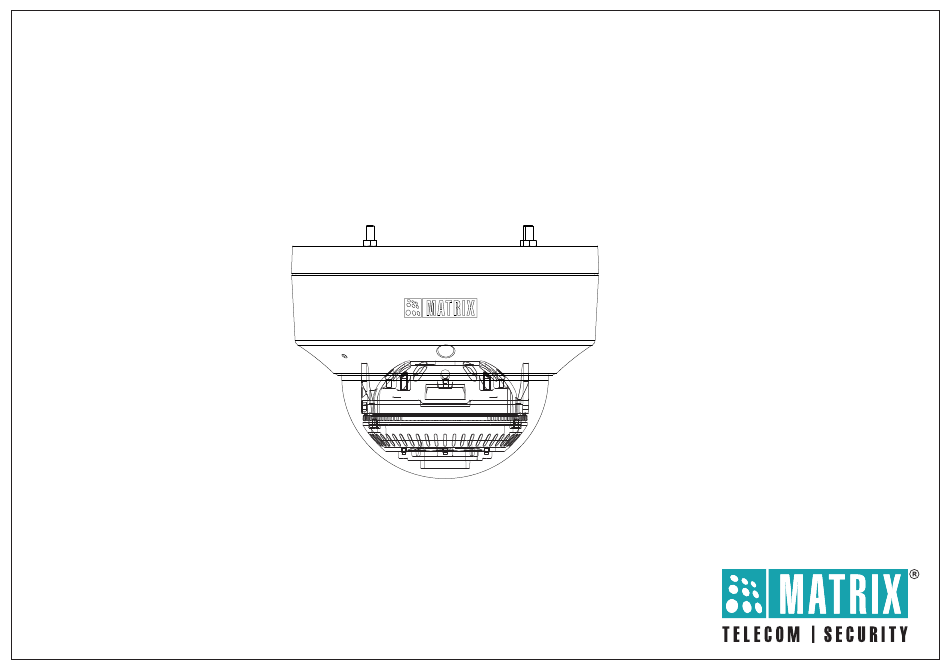

- Page 1 SATATYA PROFESSIONAL DOME IP-Camera The Persistent Vision...
-
Page 2: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information In the use of the product, you must be in strict compliance with in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to the electrical safety regulations of the region and nation. -
Page 3: Know Your Camera
Know your Camera What your Package contains SATATYA Dome IP Camera Unit • Wall Mounting Template • Wall Mounting Screws with Screw Grip (3 nos.) • Cable Accessories • Ingress Protection Accessories (4 parts) • Things you will Need • A Power Drill, Screwdriver Set, Allen Key (2.46 mm), Pliers, Wire-cutter, Ladder. -
Page 4: Installation
Installation The respective available variants are listed in below: Before you start Resolution with Focal Standard Premium Please make sure: Type of Lens Length(mm) Ÿ The device in the package is in good condition and all the assembly parts are included. Ÿ... -
Page 5: Installing Mounting Template
Step 3: Installing Mounting Template Step 4: Mounting the Camera For External Cabling: • Stick the Mounting Template at the exact location of camera • Pull the cable out through the cable guide, sideways to the camera, installation. The location can be ceiling or wall. see Figure 3a. -
Page 6: Adjusting The Camera Angle
Figure 5 Use Allen Key to open the camera. Wall/Ceiling • Take off the enclosure top by removing 3 screws using Allen Key, see Figure 4. • Remove the Gasket, see Figure 4. • Attach the bottom of the enclosure with the three screw provided along with the camera, see Figure 5. - Page 7 B. Tilt Movement Figure 6 • For Tilt movement, move the camera from 0 to maximum 75 , see Figure 8. • If the horizontal view is not aligned i.e. the view is tilted, then you can adjust the view by loosening the screw and adjusting the lens accordingly, see Figure 6.
-
Page 8: Ingress Protection Accessory Installation
Step 7: Ingress Protection Accessory Installation Figure 9 1. The Ingress Protection Accessory comprises of the following: Holder, Rubber, Cap and O-Ring. You need to pass the RJ45 cable with connector through each in the sequence as shown below. Now, insert the Rubber into the Holder and then place the Cap. Figure 10 Ingress protection accessory Holder... -
Page 9: Connecting Cables
2. Affix the O-Ring on the Network Port Connector as shown 4. The Ingress Protection Accessory is connected with the camera. below. Power Cable Step 8: Connecting the Cables Network Port Connector • Connect the Ethernet cable to LAN port and Power cable to the 12V DC power supply. -
Page 10: Accessing Reset Switch & Sd Card Slot
Accessing Reset Switch and SD Card Slot If you forget the IP Address or Login Credentials of camera, the camera can be reset to factory default settings using the Reset Switch. • The Reset Switch is located as shown in Figure 11. -
Page 11: Network Configuration
Network Configuration Accessing via Web Browser To view and configure the camera via LAN (Local Area Network), The IP cameras are supported by Microsoft Windows Operating you need to connect the camera in the same subnet with your PC. System. Then install the software to configure the IP Address. - Page 12 • The home page of the camera will open and the live view will be displayed. SATATYA MIDR20FL36CWS SATATYA MIBR20FL36CWS Persistent Vision Persistent Vision 2 9 - A u g - 2 0 1 9 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M 0 3 : 2 9 : 1 5 P M a a a a a 3 9 3 9...
-
Page 13: Technical Specification
Technical Specification Technical Specification Specification Standard Premium Specification Standard Premium Power Supply Storage Adapter * 12V DC (802.3af, Class 2) SD Card 12VDC; Max: 5.5W Power Casting Consumption PoE Supported Material Aluminium Die Cast 12VDC; Max: 5.5W Colour Infinity White PoE Supported Physical 8MP 12VDC;... - Page 14 Head Office If you are unable to dispose-off the products or unable to locate e-waste 394-GIDC, Makarpura, Vadodara, Gujarat, 390010, India recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. Ph: (+91)1800-258-7747 Email: Tech.Support@MatrixComSec.com www.matrixcomsec.com...
