Summary of Contents for Matrix SATATYA MIBR20FL28CWS

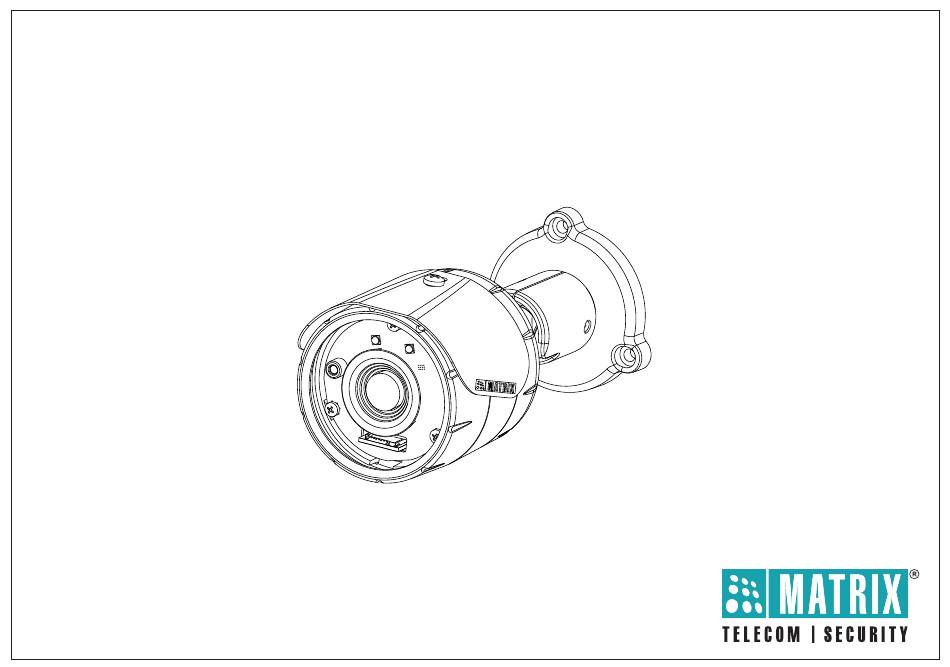

- Page 1 SATATYA PROFESSIONAL BULLET IP-Camera The Persistent Vision...
-
Page 2: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information In the use of the product, you must be in strict compliance with in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to the electrical safety regulations of the region and nation. -
Page 3: Know Your Camera
Know your Camera What your Package contains Ÿ Bullet IP Camera Unit Ÿ Wall Mounting Template Ÿ Wall Mounting Screws with Screw Grip (3 nos.) Ÿ Cable Accessories for weather proofing Ÿ Ingress Protection Accessories (4 parts) Things you will Need •... -
Page 4: Installation
Installation The respective available variants are listed in below: Before you start Resolution with Focal Standard Premium Please make sure: Type of Lens Length(mm) Ÿ The device in the package is in good condition and all the assembly parts are included. Ÿ... -
Page 5: Installing Mounting Template
Step 3: Installing Mounting Template Step 4: Mounting the Camera • Stick the Mounting Template on the desired installation surface. • To avoid cable damage, take the Power, Ethernet, Audio IN, Audio • Drill three holes through the markings of the Mounting Template OUT cables of the camera through the cable guide on the base on Wall or Ceiling. -
Page 6: Ingress Protection Accessory Installation
Step 6: Ingress Protection Accessory Installation Pivot Joint 1. The Ingress Protection Accessory comprises of the following: Holder, Rubber, Cap and O-Ring. You need to pass the RJ45 cable with connector through each in the Socket screws sequence as shown below. Allen Key Base Plate Camera body... -
Page 7: Connecting Cables
2. Affix the O-Ring on the Network Port Connector as shown below. 4. The Ingress Protection Accessory is connected with the camera. Power Cable Network Port Step 7: Connecting Cables Connector O-Ring • Connect the Ethernet cable to LAN port and Power cable to the 12V DC power supply. -
Page 8: Accessing Reset Switch & Sd Card Slot
Accessing Reset Switch and SD Card Slot If you forget the IP Address or Login Credentials of camera, the camera can be reset to factory default settings using the Reset Switch. Audio IN To access the Reset Switch Audio Out 1. -
Page 9: Network Configuration
Network Configuration 3. Press the Reset Switch for minimum 5 seconds and release it to restore default camera settings. To view and configure the camera via LAN (Local Area Network), you need to connect the camera in the same subnet with your PC. Then install the software to configure the IP Address. -
Page 10: Accessing Via Web Browser
Accessing via Web Browser The IP cameras are supported by Microsoft Windows Operating System. • Run the Web Browser as Administrator. • In the browser address bar, type the IP address of the camera e.g., 192.168.1.126 and press the Enter key to open the login interface. -
Page 11: Technical Specification
Technical Specification • The Home page of the camera will open and the live view will be displayed. Specification Standard Premium SATATYA MIBR20FL36CWS SATATYA MIBR20FL36CWS Persistent Vision Persistent Vision 2 9 - A u g - 2 0 1 9 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M 0 3 : 2 9 : 1 5 P M... - Page 12 Technical Specification Certifications Specification Standard Premium Casting Aluminium Die Cast Material Aluminium Die Cast Infinity White Colour Infinity White IP67 Physical Dimensions 150mm x 70mm 150mm x 70mm (LxW) IK10 (on Metal Housing) 500 gm 500 gm Weight (Approx) (Approx) Storage SD Card Software...
- Page 13 At the end of product life cycle; batteries, soldered boards, metal components and plastic components must be disposed through recyclers. If you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. MATRIX COMSEC PVT LTD...
