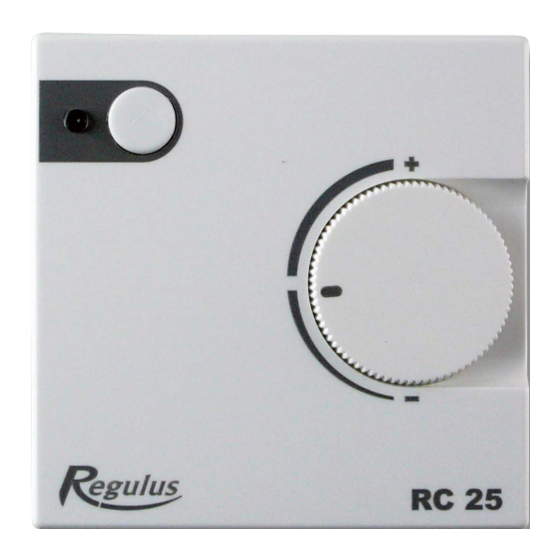

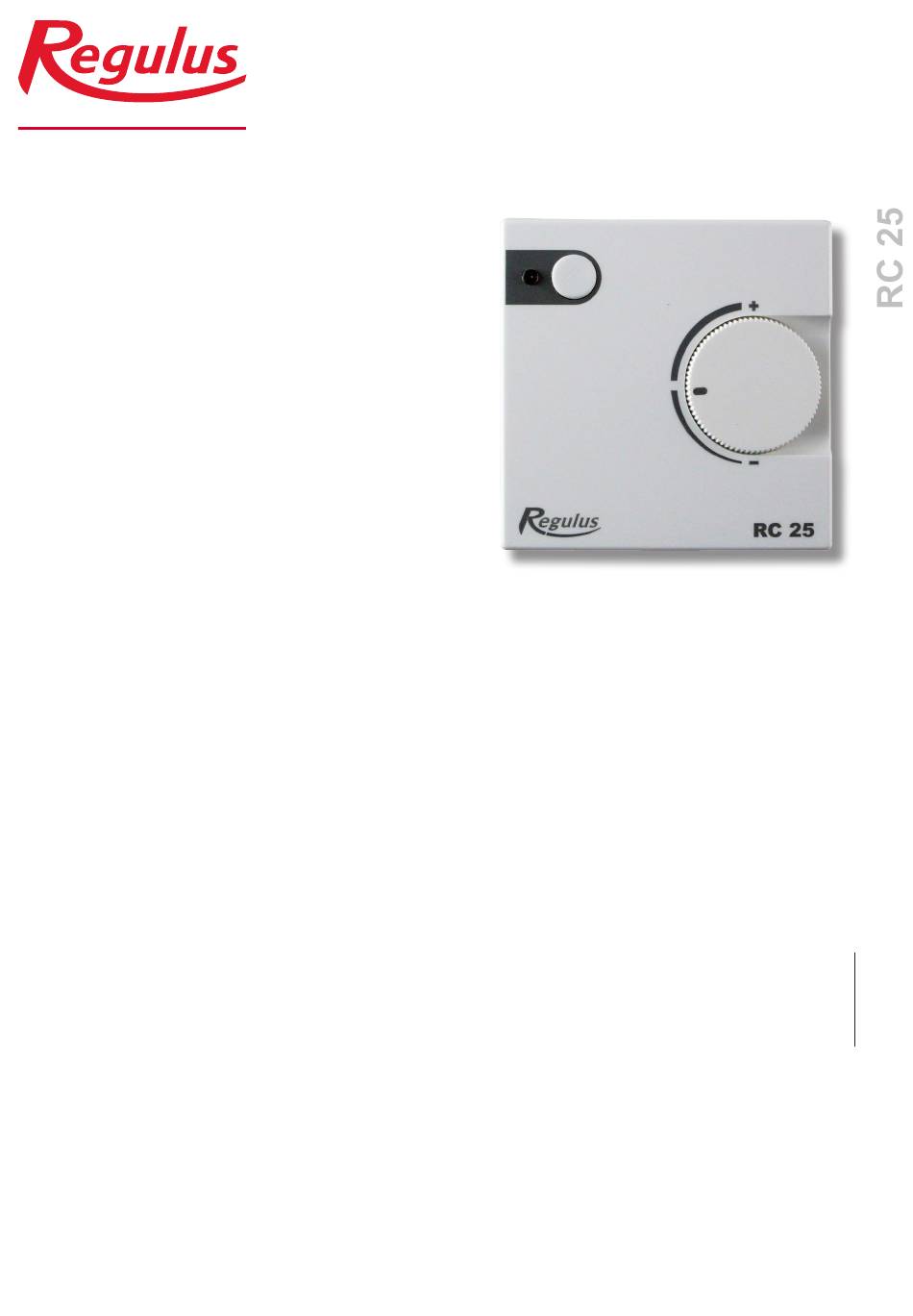

- Page 1 Installation and Operation Manual RC 25 Room Unit for IR Controllers RC 25...
- Page 2 1. Description RC 25 room unit is designed for the following purposes: • sensing room temperature and relative humidity in the heated zone • easy correction of the desired temperature using the knob • indication of operating status and alarm •...
- Page 3 1.2. Instructions for location and operation of the room unit • The RC 25 unit is intended for indoor use only. • Do not place the unit in rooms where it will be exposed to excessive moisture or rain.
- Page 4 2. Specifications Code: 18540 Working temperature 0 °C to 50 °C Temperature measurement accuracy 0.2 °C Working humidity 5-95%, non condensing Humidity measurement accuracy Power supply, communication 24 V (27 V) from CIB Nominal power consumption 25 mA Cable cross section max.
- Page 5 4. Assigning a temperature sensor to a heating zone in IR controller In the selected heating zone, set „RC25 room unit“ (no. 8) as the room temperature sensor and save the setting. In the menu for addresses of add-on modules, set the HW address indicated on the product. On the service level of the zone, you can set the function of a short press of the button.
- Page 6 Manual or on the product itself, identifies that the product must be disposed of at a recycling collection site. WEEE number: 02771/07-ECZ v1.0-03/2021 ©2021 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
