Figure 6-2 Operating Of Ebox With Acom 2000A - Acom eBox User Manual

User's Manual | ACOM eBox | Ethernet Remote Control Device
a)
c)
d)
f)
h)
n)
k)
The control and monitoring features of the ACOM 2000A amplifier include the following functions:
a) Power OFF and ON
Please, see

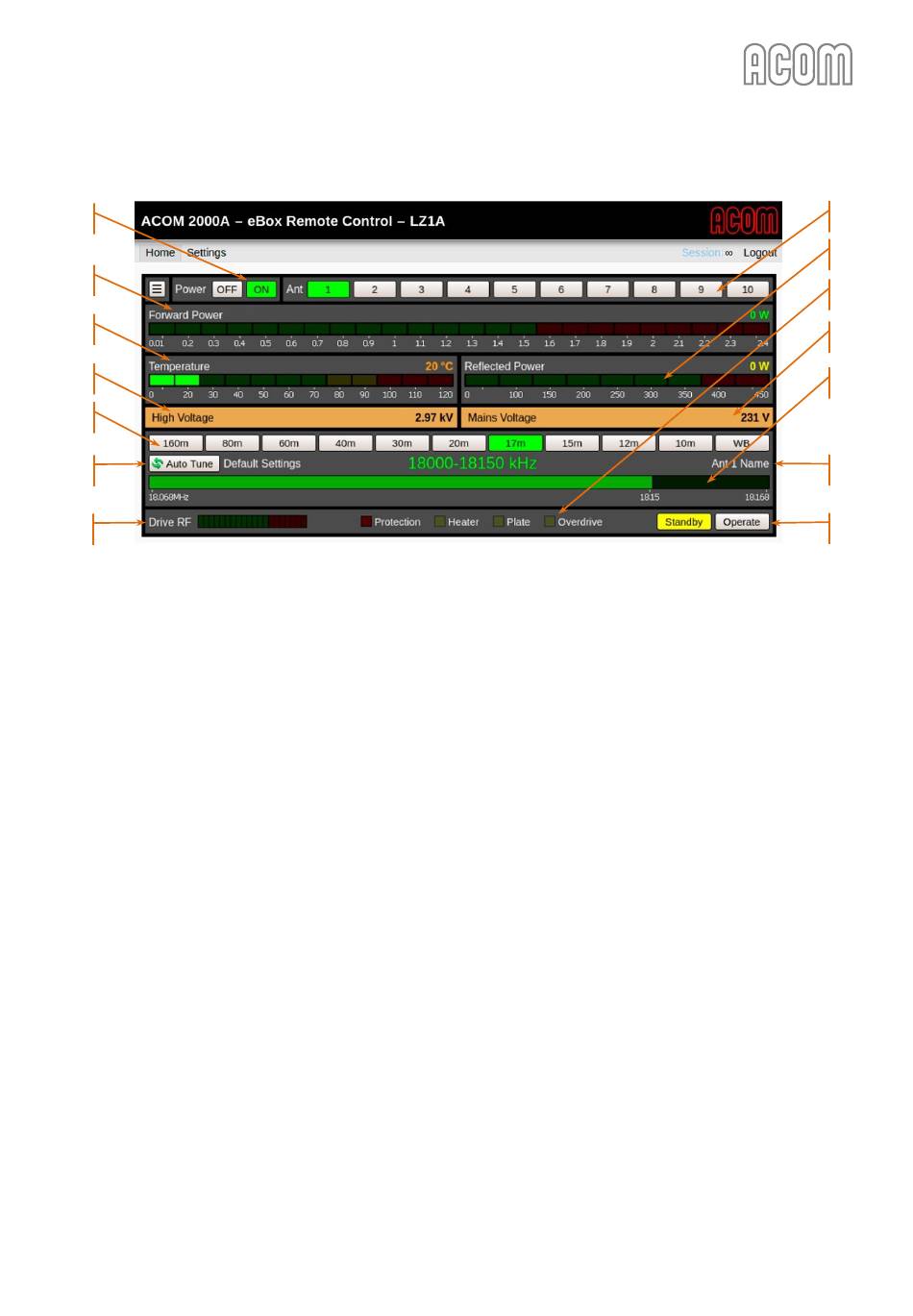

Figure 6-2 Operating of eBox with ACOM 2000A

b) Ant 1 ... 10
Please, see
Figure 6-2 Operating of eBox with ACOM 2000A
Buttons from 1 to 10 for direct antenna selection (used together with an automatic antenna selector
ACOM 2000S and remote antenna switch ACOM 2000SW).
c) Forward Power
Please, see Figure 6-2 Operating of eBox with ACOM
Forward Power: Digital value in [W] and bargraph, displayed in [kW].
d) Temperature
Please, see
Figure 6-2 Operating of eBox with ACOM 2000A
This is the tubes exhaust air temperature in
e) Reflected Power
Please, see
Figure 6-2 Operating of eBox with ACOM 2000A
Reflected Power: Digital value and bargraph, displayed in [W].
f) Parameter 1 of 2
Please, see
Figure 6-2 Operating of eBox with ACOM 2000A
The panel displays any one of the following parameters on your choice and their value:
October 2021
Figure 6-2 Operating of eBox with ACOM 2000A
Figure 6-2 Operating of eBox with ACOM 2000A
o
C (degrees Celsius).
, Pos. (a).
, Pos. (b).
2000A, Pos. (c).
, Pos. (d).
, Pos. (e).
, Pos. (f).
S e c t i o n OPERATION | Page 41 of 60
b)
e)
l)
g)
i)
j)
m)
