Figure 2-7 Ebox To Acom 2000A Connections - Acom eBox User Manual

User's Manual | ACOM eBox | Ethernet Remote Control Device
If you have an ACOM 2000A amplifier with RCU, please, see
Table 2-2 eBox to ACOM 2000A connection cable wiring
It is necessary to use the original connection cable (delivered with an eBox) and connect the AMPLIFIER
connector (on eBox rear panel, see Pos. (1) below) to the amplifier REMOTE CONTROL connector (on
amplifier rear panel, see Pos. (2) below).
In this case, the ACOM 2000A RCU (AMPL connector, see Pos. (3) below) should be connected to the eBox
RCU connector (on eBox rear panel, see Pos. (4) below) using the RCU original (existing) cable.
2
3
October 2021
.

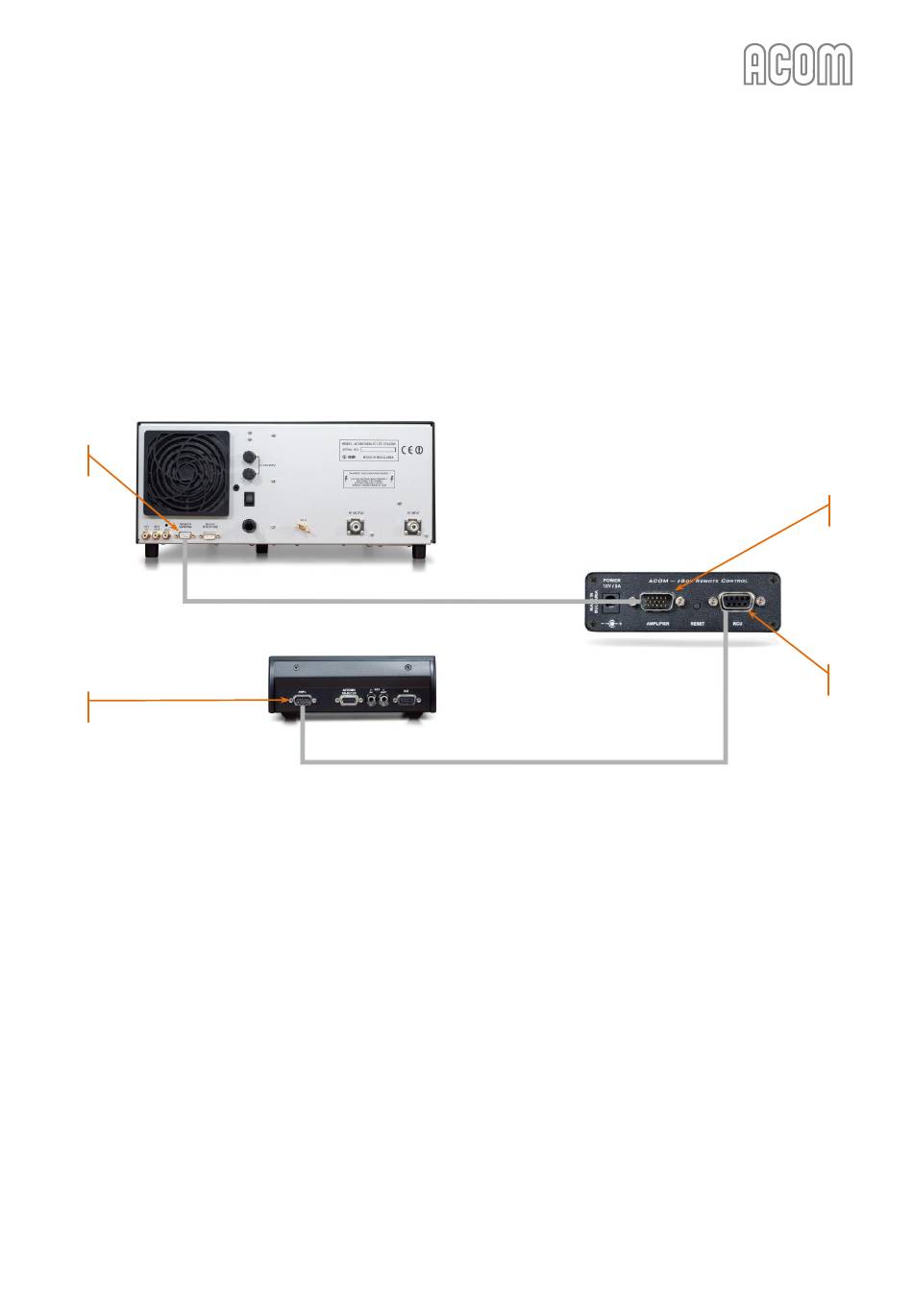

Figure 2-7 eBox to ACOM 2000A connections

Figure 2-7 eBox to ACOM 2000A connections
Figure 2-7 eBox to ACOM 2000A connections
S e c t i o n INSTALLATION | Page 17 of 60
and
1
4
