If you have an ACOM 600S, 700S, or 1200S amplifier, please, see
and
1200S connection

Table 2-1 eBox to ACOM 600S, 700S, and 1200S connection cable wiring

connection cable wiring.
It is necessary to use the original connection cable (delivered with an eBox) and connect the AMPLIFIER
connector (on eBox rear panel, see Pos. (1) below) to the amplifier RS-232 connector (on amplifier rear
panel, see Pos. (2) below).
In this case, the RCU connector (on eBox rear panel, see Pos. (3) below) remains unused.
2
Table 2-1 eBox to ACOM 600S, 700S, and 1200S connection cable wiring
eBox
Rear panel
AMPLIFIER
connector
1 | GND
2 | Pin2_A
3 | Pin3_A
4 | +10AMP
5 | CPU_ON_A#
6 | RX_485_TX_P
7 | CPU_RST_A#
D-sub
8 | RCU_CPU_A
connector,
9 | CPU_RCU_A
15-pin,
10 | GND
3-row,
11 | RS_485_TX_N
male
12 | RS_485_RX_P
13 | RS_485_RX_N
14 | RS_232_TX
15 | RS_232_RX
Housing
Table 2-1 eBox to ACOM 600S, 700S, and 1200S connection cable wiring
Page 16 of 60 | S e c t i o n INSTALLATION

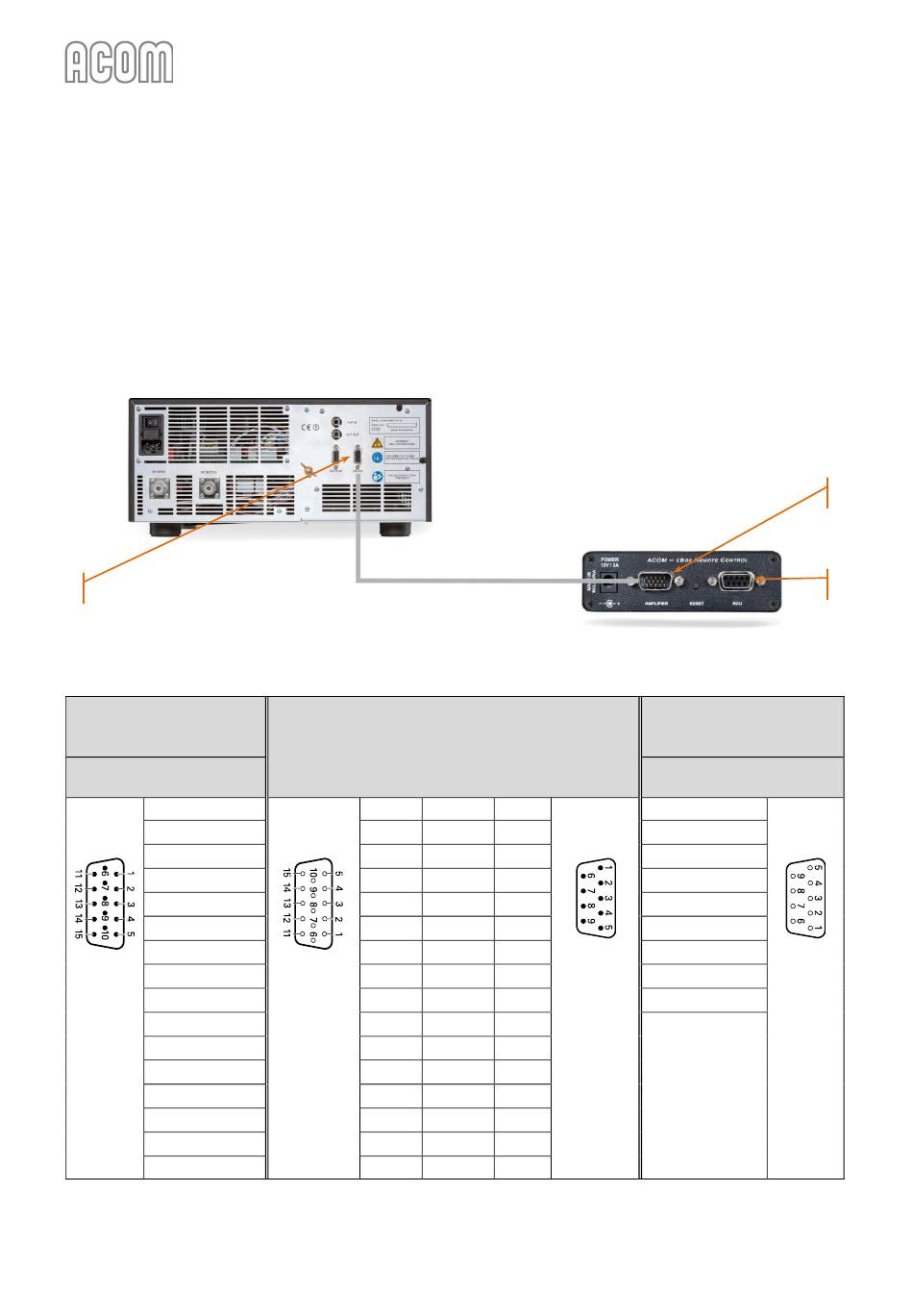

Figure 2-6 eBox to ACOM 600S, 700S, or 1200S connection

Figure 2-6 eBox to ACOM 600S, 700S, or 1200S connection
Connecting cable
1
2
3
4
5
6
7
D-sub
8
connector,
9
15-pin,
10
3-row,
11
female
12
13
14
15
Housing
User's Manual | ACOM eBox | Ethernet Remote Control Device
Figure 2-6 eBox to ACOM 600S, 700S, or
-
Not connected
-
Not connected
-
Not connected
-
Not connected
Blue 6
-
Not connected
-
Not connected
D-sub
-
connector,
Not connected
9-pin,
-
Not connected
male
Black 5
-
Not connected
-
Not connected
-
Not connected
Red 3
Yellow 2
Ext. shield Housing
for correct
ACOM
600S, 700S, and 1200S
Rear panel
RS-232
connector
1 | Not connected
2 | TxD
3 | RxD
4 | Not connected
5 | GND
6 | DSR
7 | Not connected
D-sub
8 | CTS
connector,
9-pin,
9 | Not connected
female
Housing
