3. Install blank panels or other units on the rack shelf as desired.
4. Install the shelf in the rack.

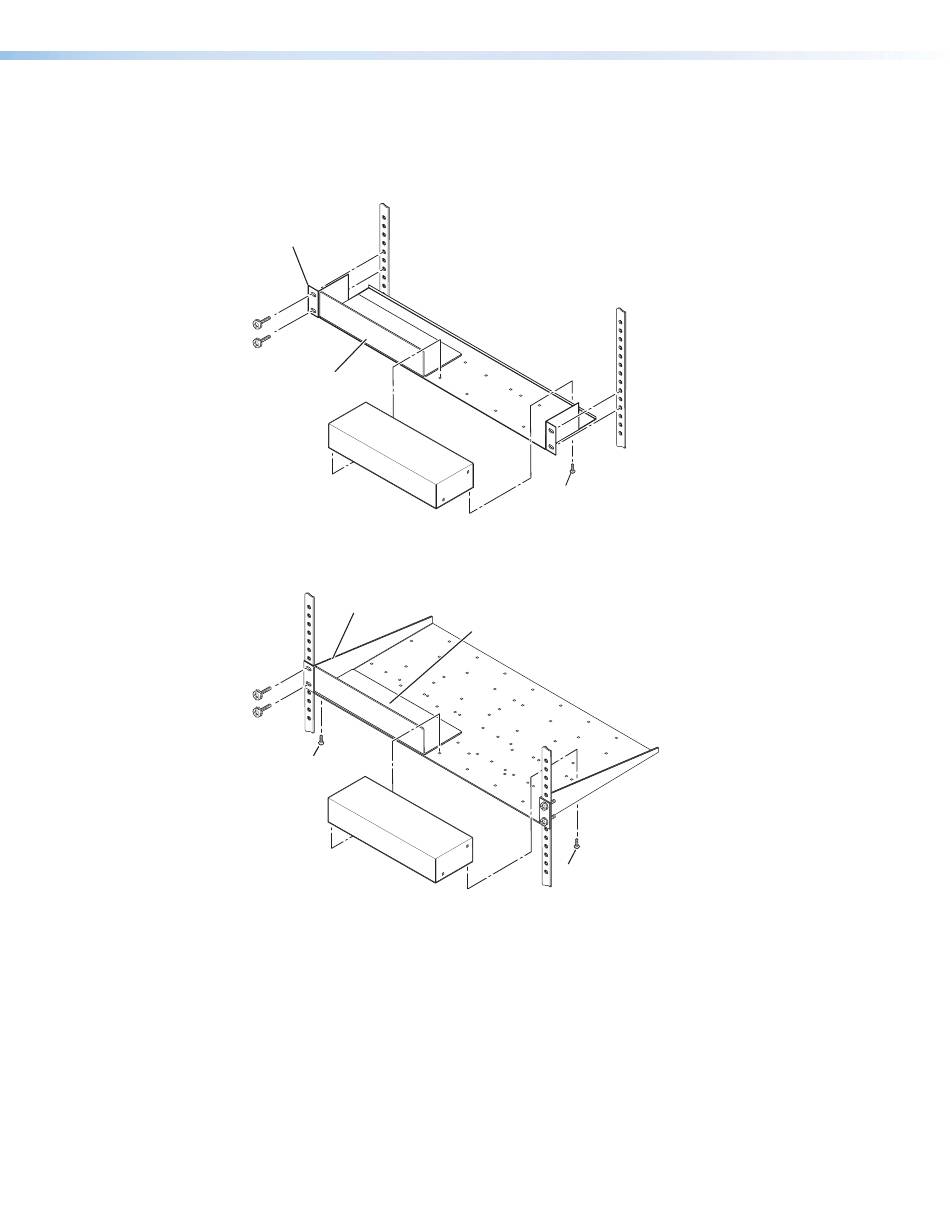

The illustrations below show examples of how the SW USB can be mounted on different
sized rack
Rack Shelf
1/2 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.
Figure 19.
Front false
faceplate
uses 2
screws.
Use 2 mounting holes on
opposite corners.
Figure 20.
Furniture Mounting
To mount the SW USB switcher under a desk, table, or podium, use the optional MBU 123
Mini Under-Desk Mounting Kit, as follows:
1. If rubber feet were previously attached to the bottom of the unit, remove them.
2. Remove the two screws from one side of the SW USB. Retain the screws for possible
later reassembly.
3. Attach the brackets to the sides of the unit, using the provided machine screws.
shelves.agrams
Mounting an SW USB Switcher on a 3.5-inch Deep Rack Shelf
1U Universal Rack Shelf
1/2 Rack Width Front False
Faceplate
Mounting an SW USB Switcher on a Standard 9.5-inch Deep Rack
Shelf
(2) 4-40 x 3/16"
Screws
(2) 4-40 x 3/16"
Screws
