Click Add. The Add Device window closes, and your SW USB name and information
11.
appear in the Devices panel of the Firmware Loader window.

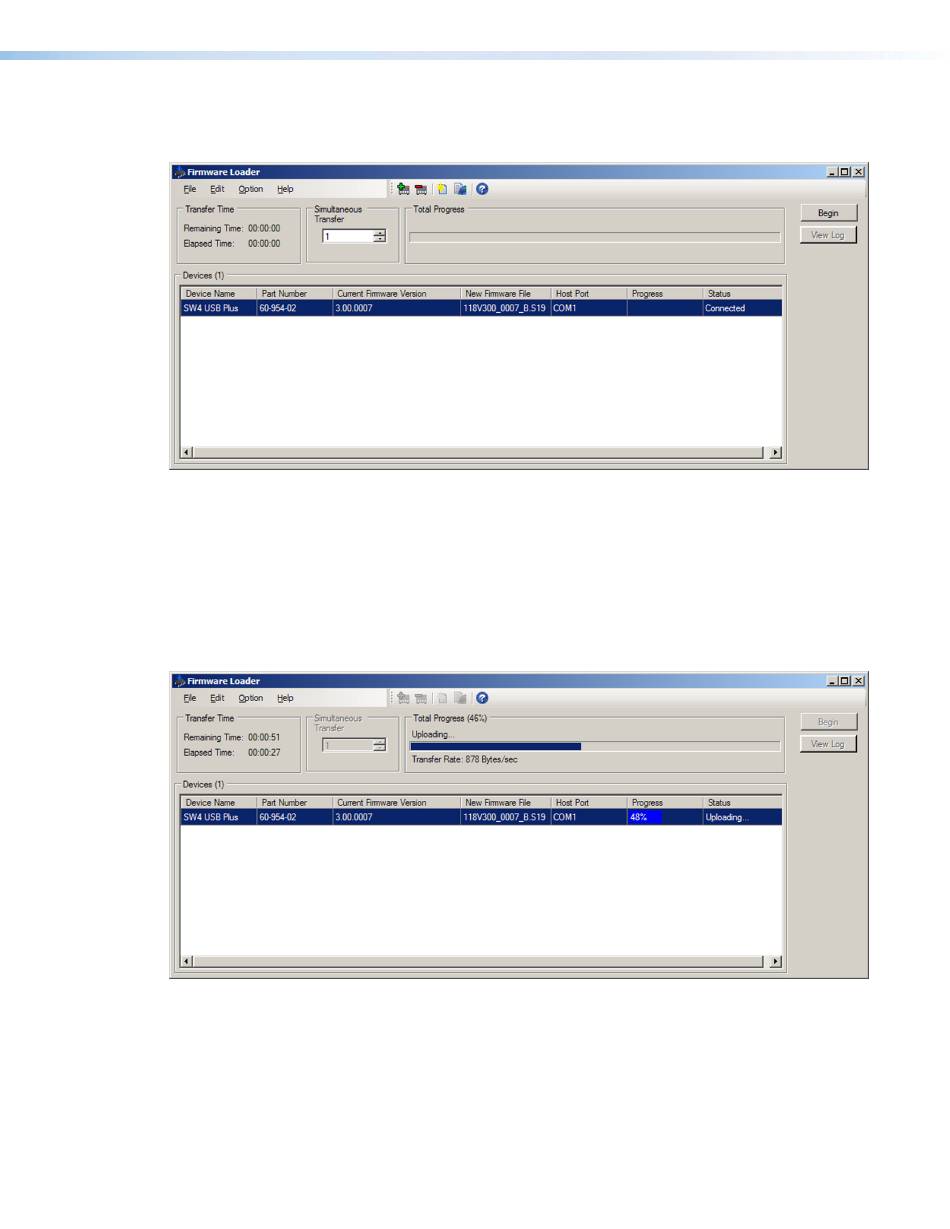

Figure 16.
Firmware Loader Window with SW USB Device Added
12.
Click Begin. The following indicators on the Firmware Loader window show the
progress of the update:
The Transfer Time panel shows the amounts of remaining and elapsed time for
•
the update.
The Total Progress panel displays a progress bar with Uploading... above it.
•
In the Devices panel, the Progress column displays an incrementing percentage
•
and another progress bar. The Status column displays Uploading.
Figure 17.
Firmware Upload in Progress
SW USB Series • Operation
25
