3.
If there is not already an Extron folder in your Program Files x86 folder, the
installation program creates it as well.From the Start menu on your computer, select
All Programs > Extron > Firmware Loader > Firmware Loader. The Firmware
Loader window opens with the Add Device window in front of it.
On the Add Device window, select your SW USB model from the Device Names
4.
drop-down menu.

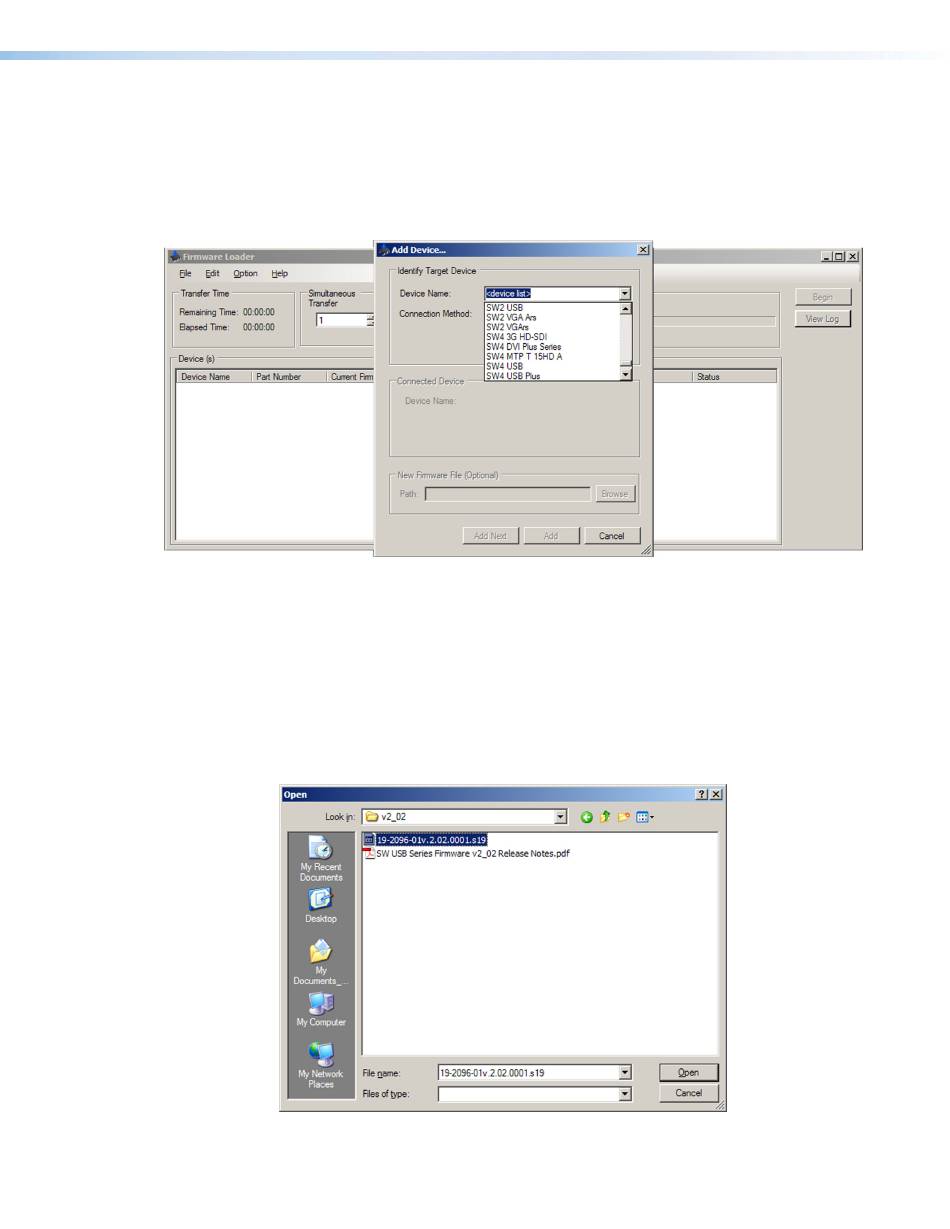

Figure 13.
Device Name Drop-down Menu on the Add Device Window
5.
From the Connection Method drop-down menu, select RS-232 (the only option).
6.
Select the appropriate options from the Com Port and Baud Rate menus (this
information is provided by your system administrator).
7.
Click Connect. If the connection is successful, the name of your SW USB model is
displayed in green and followed by a check mark in the Connected Device section.
8.
Click the Browse button in the New Firmware File (Optional) section.
9.
On the Open window, navigate to the new firmware file, which has a S19 extension, and
double-click it.
Figure 14.
Open Window for Firmware Loader
SW USB Series • Operation
23
