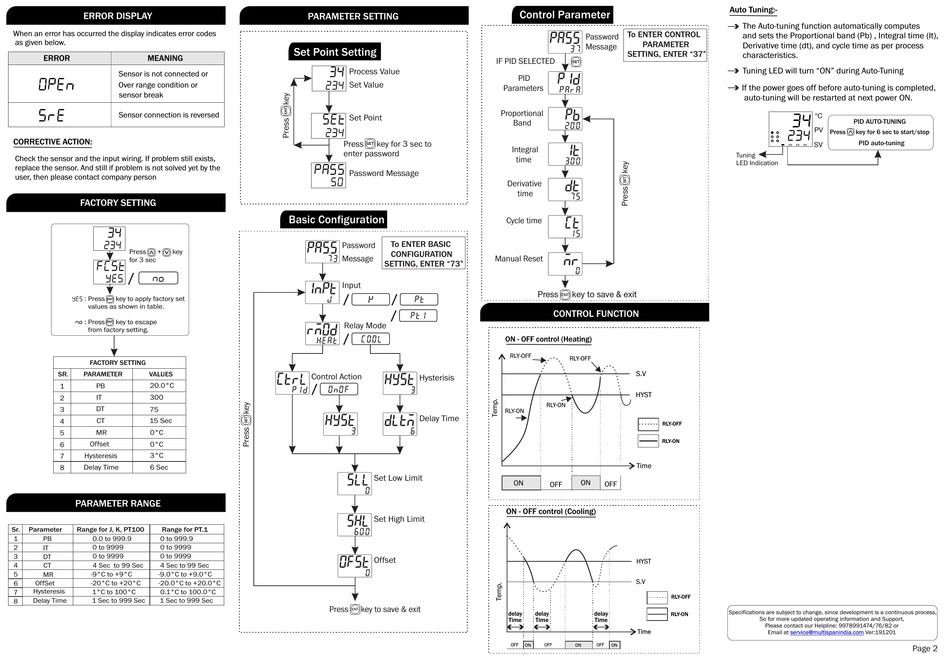

MULTISPAN UTC-121P Quick Start Manual page 2

ERROR DISPLAY
When an error has occurred the display indicates error codes
as given below.
ERROR MEANING
Sensor is not connected or
OPEN
Over range condition or
sensor break
SRE
Sensor connection is reversed
CORRECTIVE ACTION:
Check the sensor and the input wiring. If problem still exists,
replace the sensor. And still if problem is not solved yet by the
user, then please contact company person
FACTORY SETTING
34
234
Press + key
for 3 sec
fCst
no
YES
yes : Press key to apply factory set
ENT
values as shown in table.
no : Press key to escape
ENT
from factory setting.
FACTORY SETTING
SR. PARAMETER VALUES
PB 20.0°C
1
2 IT 300
DT
3 75
4 CT 15 Sec
5 MR 0°C
Offset
6 0°C
7 Hysteresis 3°C
Delay Time 6 Sec
8
PARAMETER RANGE
Sr. Parameter Range for J, K, PT100 Range for PT.1
1 PB 0.0 to 999.9 0 to 999.9
2 IT 0 to 9999 0 to 9999
3 DT 0 to 9999 0 to 9999
4 CT 4 Sec to 99 Sec 4 Sec to 99 Sec
5 MR -9°C to +9°C -9.0°C to +9.0°C
-20°C to +20°C -20.0°C to +20.0°C
6 OffSet
Hysteresis 1°C to 100°C 0.1°C to 100.0°C
7
Delay Time 1 Sec to 999 Sec 1 Sec to 999 Sec
8
PARAMETER SETTING
Set Point Setting
34
Process Value
234 Set Value
set Set Point
234
Press key for 3 sec to
SET
enter password
pass
Password Message
50
Basic Configuration
To ENTER BASIC
Password
CONFIGURATION
Message
SETTING, ENTER "73"
Input
Relay Mode
Control Action
Hysterisis
Delay Time
Set Low Limit
Set High Limit
Offset
Press key to save & exit
ENT
Control Parameter
To ENTER CONTROL
Password
PARAMETER
Message
SETTING, ENTER "37"
IF PID SELECTED
SET
PID
Parameters
Proportional
Band
Integral
time
Derivative
time
Cycle time
Manual Reset
Press key to save & exit
ENT
CONTROL FUNCTION
ON - OFF control (Heating)
RLY-OFF
RLY-OFF
S.V
HYST
RLY-ON
RLY-ON
RLY-OFF
RLY-ON
Time
ON ON
OFF
OFF
ON - OFF control (Cooling)
HYST
S.V
RLY-OFF
delay delay delay
RLY-ON
Time Time Time
Time
OFF ON OFF ON OFF ON
Auto Tuning:-
The Auto-tuning function automatically computes
and sets the Proportional band (Pb) , Integral time (It),
Derivative time (dt), and cycle time as per process
characteristics.
Tuning LED will turn "ON" during Auto-Tuning
If the power goes off before auto-tuning is completed,
auto-tuning will be restarted at next power ON.
34 °C
PID AUTO-TUNING
PV
Press key for 6 sec to start/stop
234
PID auto-tuning
SV
Tuning
LED Indication
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991474/76/82 or
Email at service@multispanindia.com Ver:191201
Page 2
