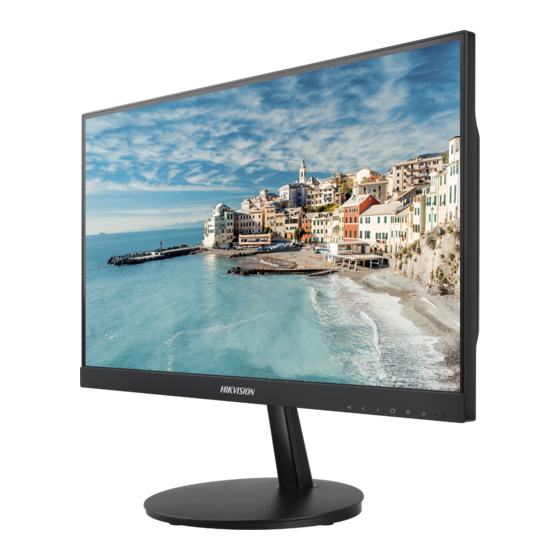

22-inch monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
22-inch Monitor
User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D5022FN and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-D5022FN

Summary of Contents for HIKVISION DS-D5022FN

  • Page 1 22-inch Monitor User Manual...

  • Page 2: Legal Information

    The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/).

  • Page 3: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Applicable Models

    Applicable Models This manual is applicable to 22-inch monitor. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
  • Page 5  Keep vertical when moving or using the equipment.  CAUTION: This equipment is for use only with specified bracket (Hikvision's monitor stand). Use with other (carts, stands, or carriers) may result in instability causing injury.

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Key Features  8-bit/10-bit dual channel LVDS (1920×1080) HD display.  3D digital comb filter and 3D noise reduction technology.  Hi-Fi color OSD and user-friendly menu for operation.  Programmable 12-bit RGB gamma correction.  Complete factory setting mode. ...
  • Page 7  Power supply: 220 VAC~, 50/60 Hz.  Power off the device and disconnect the plug if it is not in use for a long time.  The device cannot be connected to DC power supply. DC Device Connect the power adapter to the device, and plug the other end of the adapter to an earthed mains socket-outlet, then press the power button.

  • Page 8: Chapter 2 Rear Panel Interface

    Chapter 2 Rear Panel Interface The panel appearances and interfaces vary with different models. The devices can be classified as follows. Type A Interface of Type A Type B Interface of Type B Type C Interface of Type C Interface Description Interface Description Interface...

  • Page 9: Chapter 3 Panel Buttons

    Chapter 3 Panel Buttons The buttons at the bottom-right corner of the front panel are shown as follows. Panel Buttons Button Description Button Description Power On/Off  Menu page, source page, and volume page: Exit the current page.  Other pages: Display main menu page. ...

  • Page 10: Chapter 4 Basic Operation

    Manual Name • Manual Type Chapter 4 Basic Operation The display interfaces vary with different models. The figures followed are for illustration purpose only. Switch Signal Source Connect the device to mains socket-outlet and signal source, and power the device on. Press to enter the signal source page.
  • Page 11 You can switch picture modes and adjust image parameters including contrast, brightness, color, sharpness, and hue. The adjustable parameters will change when you switch from a picture mode to another. Image Settings Image Parameters Parameter Description Picture Mode  Standard: Suitable for a normal environment. It is set as the default picture mode.
  • Page 12  Under custom mode, brightness, contrast, color, sharpness, and hue are adjustable.  Under other modes, only brightness and contrast are adjustable.  Parameters in white bar are adjustable. If the parameter bar is gray, it indicates that the parameter is not adjustable under the current mode or input source. ...
  • Page 13  Adjusting the value of H-Position and V-Position will change the image position in a large extent, while Phase and Clock in a slight extent.  Change the value of Clock will stretch or narrow the image.  If Auto Adjust is enabled, the related parameters will self-adjust under the following 3 circumstances: The device is restarted, a VGA input source is accessed, and the input source is switched to VGA.
  • Page 14 OSD parameters concern the display effect of OSD, such as position, transparency, and rotation. OSD Settings OSD Parameters Parameter Description Horizontal Ranges from 0 to 100. Ranges from 0 to 100. Vertical Transparency Off/Weak/Medium/Strong OSD Time Out Off/5 S/15 S/30 S/1 Min OSD Rotation Off/On If OSD Rotation is enable, the OSD will rotate 270 degrees clockwise, and the point (0, 0) is at...
  • Page 15 UD23569B...
