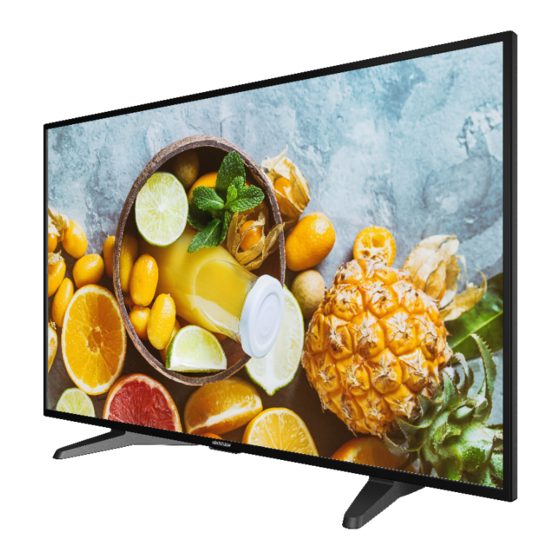

- Page 1 DS-D5043QE User Manual...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 User's Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 4 User's Manual To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. Applicable Models This manual is applicable to the model: LCD Monitor. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points...
-
Page 5: Table Of Contents
User's Manual TABLE OF CONTENTS 1. Safety instructions ..................5 1.1 Screen maintenance ................ 8 2. Operation Instructions ................9 2.1 Control panel ..................9 2.2 Remote control ................10 3. Installation instructions ................11 3.1 Control button and joint ..............12 3.2 How to adjust the settings .............. -
Page 6: Safety Instructions
User's Manual 1. Safety instructions Pixel feature This liquid crystal display product has ultrahigh color resolution. While it’s ef- fective pixels are up to 99.999% or higher, it is still possible that a dark spot or a bright spot (red, green or blue) constantly appears on the screen. This is the structure property (within the general industrial standard) of the display rather than a fault. - Page 7 User's Manual · It is suggested that the monitor be carried by two people. · When installing the monitor on the stand, please use only the chassis provided. Firmly fix the frame on the monitor. Put the monitor on a flat, flat surface that can withstand the total weight of the monitor and the chassis.
- Page 8 User's Manual · When the power line is disconnected, always hold the plug instead of pull- ing the cable. · Before the thunderstorm comes, disconnect the monitor from the power outlet and the antenna. Never touch any part of a monitor, a power line, or an antenna in a thunderstorm.
-
Page 9: Screen Maintenance
User's Manual 1.1 Screen maintenance Before using the monitor, please read and understand all the instructions. Damage resulting from nonobservance of the instructions is not covered by the warranty. · Try to avoid still images. A still image means that an image stays on the screen for a long time. -
Page 10: Operation Instructions
User's Manual 2. Operation Instructions 2.1 Control panel (The shape of the product will vary between models, please take the actual machine as the standard!) Power/ Press the Power key in the shutdown state. Input Short-press to select VGA/HDMI and long-press to shut it off in the power-on state. -
Page 11: Remote Control
User's Manual 2.2 Remote control 1. Standby-Power on When the monitor boot, it can be switched to standby. The monitor can be power on when it is in standby mode. 2. Signal source Opens the signal source menu, select the connected device. 3. -
Page 12: Installation Instructions
User's Manual 3. Installation instructions Connect the base: Remove the base: Note: The base is not equipped when the product leave the factory. Please consult the sales representative for the base. Power Cord Power Supply: 1. Please use the power cord applicable to the local region. 2. -
Page 13: Control Button And Joint
User's Manual 3.1 Control button and joint Signal wire • Connect the VGA wire: Connect the 15 -pin VGA signal wire to the back of the display and the VGA port of the computer or other devices. • Connect the HDMI wire: Connect the 19 -pin HDMI signal wire to the back of the display and the HDMI port of the computer or other devices. -
Page 14: How To Adjust The Settings
User's Manual 3.2 How to adjust the settings 1. Press the button “ ” to display the OSD options. 2. Press “ ” or “ ” to browse the menu items. After reversing out the required item, press the button “... -
Page 15: Adjust The Image Settings
User's Manual 3.3 Adjust the image settings Description of the functions of control button: Main Main Sub-menu Sub- menu menu Description item menu item picture Comparison of digital regis- Contrast Brightness Backlight adjustment Standard Standard mode Text Text mode Internet Internet mode Brightness Eco Mode... - Page 16 User's Manual Main Main Sub-menu Sub- menu menu Description item menu item picture Called back from EEPROM Warm “Warn” setup Called back from EEPROM Normal “Normal” setup Called back from EEPROM Cold Color “Cold” setup Temp. Red gain of the digital cache Green gain of the digital User...
- Page 17 User's Manual 3.4 Plug-and-play Plug-and-play DDC2B function This display is configured with the VESA DDC2B function in accordance with the “VESA DDC standard”. According to the different DDC use grades, the display can inform the host of its identification information and transmit other related information of the display function.
-
Page 18: Technical Support (Common Problems)
User's Manual 4. Technical support (common problems) Problems Feasible solution • Please check if the computer system is compatible with “Plug-and-play” “Plug-and-play” function does function. not work • Please check if the display adapter is compatible with “Plug-and-play” function. • Please adjust the “Contrast” and Fuzzy image “Brightness”. - Page 19 User's Manual 4.1 Error information and feasible solution No signal 1. Please check if the signal wire is well connected. If the connector is loose, please fasten the screw on the joint. 2. Please check whether the connecting pin of the signal wire is damaged. Does not support input signal Incorrect display mode setup of the computer.
-
Page 20: Appendix
User's Manual 5. Appendix 5.1 Specification Drive system 43” TFT color LCD LCD panel Dimension 108 cm diagonal line Pixel distance 0.49mm(H) × 0.49mm(V) Video signal Digital/analog Horizontal Input 30kHz – 83kHz frequency Vertical frequency 56 – 75Hz Display color 16.7M Maximum resolution 1920 x 1080@60Hz... -
Page 21: Comparison Table Of The Preset Frequencies Of The Original Factory
User's Manual 5.2 Comparison table of the preset frequencies of the original factory PC mode resolution Standard Resolution Refresh rate 640 × 480 60Hz SVGA 800 × 600 60Hz 1024 × 768 60Hz WXGA 1280 × 720 60Hz SXGA 1280 × 1024 60Hz WXGA 1440 ×900... -
Page 22: Instructions Of The Joint Pin
User's Manual 5.3 Instructions of the joint pin 15-Pin colorful display signal wire Pin No. Function Pin No. Function +5V Power supply Green Grounded Blue Grounded Grounded DDC-sequence data Sensing wire Horizontal synchronization R-grounded Vertical synchronization G-grounded DDC-sequence clock B-grounded 19-Pin colorful display signal wire Pin No.
