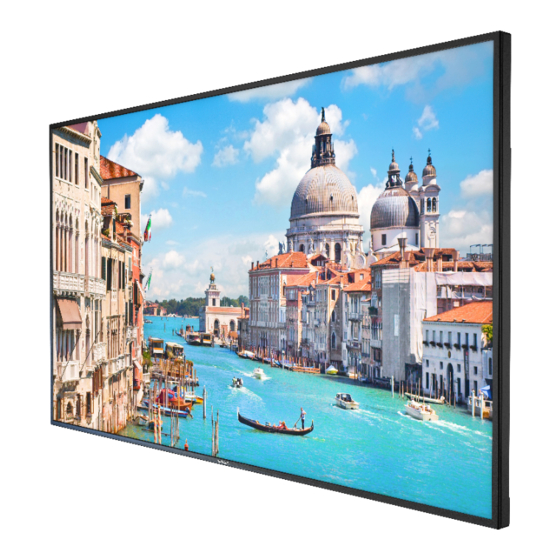

HIKVISION DS-D5043UC User Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Monitor
  5. DS-D5043UC
  6. User manual

HIKVISION DS-D5043UC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LCD Monitor
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D5043UC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-D5043UC

Summary of Contents for HIKVISION DS-D5043UC

  • Page 1 LCD Monitor User Manual...
  • Page 3 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. Applicable Models This manual is applicable to the model: DS-D5043UC/DS-D5055UC/DS-D5065UC. Symbol Conventions The symbols that may be found in this document are defined as follows.

  • Page 5: Table Of Contents

    LCD Monitor User Manual Contents Safety instructions ..............................1 1.1. Screen maintenance ..........................3 Parts and Functions ..............................4 2.1. Button Description ............................4 2.1.1. DS-D5043UC ............................4 2.1.2. DS-D5055UC ............................4 2.1.3. DS-D5065UC ............................5 2.2. Input/Output Terminals ..........................6 2.2.1. DS-D5043UC ............................6 2.2.2. DS-D5055UC ............................6 2.2.3. DS-D5065UC ............................7 2.3.

  • Page 6: Safety Instructions

    LCD Monitor User Manual Safety instructions Pixel feature This liquid crystal display product has ultrahigh color resolution. While it’s effective pixels are up to 99.999% or higher, it is still possible that a dark spot or a bright spot (red, green or blue) constantly appears on the screen.
  • Page 7 LCD Monitor User Manual Be careful of hurting children! Please follow the following precautions to avoid child injury due to monitor falling: · Never place the monitor on a surface covered with a cloth or other material that can be pulled. · Make sure that any part of the monitor is within the edge of the surface. ·...

  • Page 8: Screen Maintenance

    LCD Monitor User Manual 1.1. Screen maintenance Before using the monitor, please read and understand all the instructions. Damage resulting from nonobservance of the instructions is not covered by the warranty. · Try to avoid still images. A still image means that an image stays on the screen for a long time.

  • Page 9: Parts And Functions

    LCD Monitor User Manual Parts and Functions 2.1. Button Description 2.1.1. DS-D5043UC MUTE INPUT MENU 2.1.2. DS-D5055UC MUTE INPUT MENU...

  • Page 10: Ds-D5065Uc

    LCD Monitor User Manual 2.1.3. DS-D5065UC MUTE INPUT MENU Button Description Turn on or turn off the display. button [MUTE] button Switch the mute ON/OFF. [INPUT] button Choose the input source. ] button When the OSD menu is on, this button increases the adjustment value. ] button When the OSD menu is on, this button decreases the adjustment value.

  • Page 11: Input/Output Terminals

    LCD Monitor User Manual 2.2. Input/Output Terminals 2.2.1. DS-D5043UC RS232 AUDIO AUDIO HDMI 2 HDMI 1 D-SUB 2.2.2. DS-D5055UC RS232 AUDIO AUDIO D-SUB HDMI 2 HDMI 1...

  • Page 12: Ds-D5065Uc

    LCD Monitor User Manual 2.2.3. DS-D5065UC AUDIO AUDIO HDMI 2 HDMI 1 D-SUB Port Description AC power input from the wall outlet. AC IN MAIN POWER Switch the main power on/off. SWITCH Used for the audio input signal of plug-in video/audio device. AUDIO IN Simulate the audio output.

  • Page 13: Remote Control

    LCD Monitor User Manual 2.3. Remote control Enter the CMS app. (Not available when leaving the 2.3.1. General function factory) Time Time setting. Aspect ratio No function. ] Home button Visit the main interface of Android.(Not available when leaving the factory) Function list No function.

  • Page 14: Inserting The Batteries In The Remote Control

    LCD Monitor User Manual 2.3.2. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3.

  • Page 15: Connecting External Equipment

    LCD Monitor User Manual Connecting External Equipment Note: The following illustration for the rear case of the monitor connecting to an external device is for reference only. Actual products may vary. 3.1. Connecting External Equipment 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Output HDMI 2...

  • Page 16: Using Vga Input

    LCD Monitor User Manual 3.2.2. Using VGA input RS232 AUDIO AUDIO D-SUB HDMI 2 HDMI 1 [VGA Input] [AUDIO Input] 3.3. Connecting Audio Equipment RS232 AUDIO AUDIO HDMI 2 HDMI 1 D-SUB [AUDIO Output]...

  • Page 17: Osd Menu Operation

    LCD Monitor User Manual 3.4. OSD menu operation 3 of 2 or Column Column 1 Column 2 Column 3 of 1 Remark Column 2 of 2 Airport and train station Hotel and convenient store Dining and clothing Security control and Mode monitoring Office...
  • Page 18 LCD Monitor User Manual Time Setting Date Picker Set the month, day, year, hour and minute. Repeat OFF/Once/Everyday/Workday Shutdown Time Time Set the time. Repeat OFF/Once/Everyday/Workday Time Set the time. Power Time Source VGA/HDMI1/HDMI2 File Number It depends on the source (= MEDIA/PDF). [1 …...
  • Page 19 LCD Monitor User Manual Advanced Restore Restore Default Cancel/OK System reset Note: To wake PD from the HDMI source, you can set HDMI wake to ON. This product supports auto shutdown and auto turn on. Refer to “Shutdown\boot time” in the table above for details.

  • Page 20: Input Mode

    LCD Monitor User Manual Input Mode 4.1. HDMI PC Mode Active Resolution Standard Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 75 Hz 31.5 MHz WVGA 70 Hz 28.32 MHz SVGA 60 Hz 40 MHz 1024 60 Hz...

  • Page 21: Vga Mode

    LCD Monitor User Manual 4.3. VGA Mode Available Resolution Standard Resolution Horizontal Vertical Refresh Rate Pixel Rate Aspect Ratio Rate Rate 60 Hz 25.175 MHz 75 Hz 31.5 MHz WVGA 70 Hz 28.32 MHz SVGA 60 Hz 40 MHz 1024 60 Hz 65 MHz WXGA...

  • Page 22: Cleaning And Troubleshooting

    LCD Monitor User Manual Cleaning and Troubleshooting 5.1. Cleaning 5.1.1. Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 23: Troubleshooting

    LCD Monitor User Manual 5.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is switched on. of the display is not switched on.

  • Page 24: Specification

    LCD Monitor User Manual Specification 6.1. DS-D5043UC Drive system 43 Inch TFT color LCD LCD panel Dimension 108 cm diagonal line Pixel distance 0.2451mm(H) × 0.2451mm(V) Video signal Digital/analog Input Horizontal frequency 30kHz – 83kHz Vertical frequency 56 – 75Hz Display color 1.07billion...

  • Page 25: Ds-D5065Uc

    LCD Monitor User Manual 6.3. DS-D5065UC Drive system 65 Inch TFT color LCD LCD panel Dimension 164 cm diagonal line Pixel distance 0.372mm(H) × 0.372mm(V) Video signal Digital/analog Input Horizontal frequency 30kHz – 83kHz Vertical frequency 56 – 75Hz Display color 1.07billion Maximum resolution 3840 x 2160@60Hz...
