- Page 1 LCD Monitor User Manual...
- Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
- Page 3 LCD Monitor User Manual Perface Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
-
Page 4: Table Of Contents
LCD Monitor User Manual Contents Chapter 1 Introduction ....................... 1 1.1 Overview ..........................1 1.2 Key Features ........................... 1 1.3 Panel Buttons ......................... 1 1.4 Interfaces ..........................2 1.5 Power Supply Connections ....................3 1.6 Remote Control ........................3 Chapter 2 Terminal Operations ....................5 2.1 Switch Input Source ....................... - Page 5 LCD Monitor User Manual 3.4 Switch Input Source ......................18...
-
Page 6: Chapter 1 Introduction

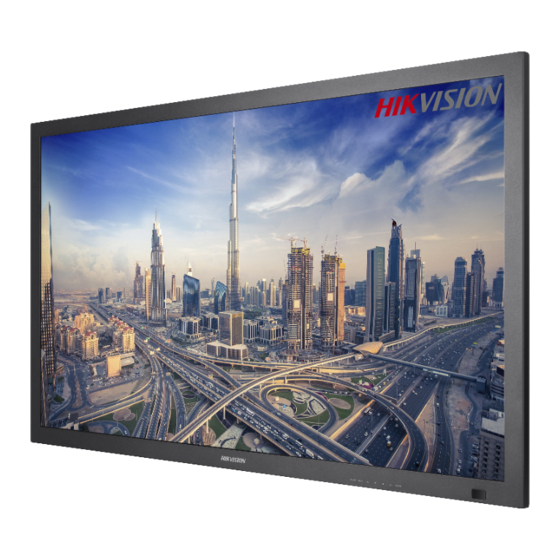

LCD Monitor User Manual Chapter 1 Introduction 1.1 Overview The LCD monitor is a reliable surveillance display with excellent color reduction, image processing, and true display of video details. Multiple interfaces can meet various surveillance environments, and build-in speaker is convenient for audio play. The monitor is an ideal choice for security and surveillance application. -
Page 7: Interfaces
LCD Monitor User Manual Figure 1-1 Panel Buttons Table 1-1 Buttons Description Button Description POWER Confirm Start up Hold down to shut down MENU Enter main menu SOURCE Enter source menu Move the cursor up/ d own/ l eft/ r ight ▲/▼/◄/►... -
Page 8: Power Supply Connections
LCD Monitor User Manual Interface Description HDMI IN HDMI digital signal input DVI IN DVI digital signal input VGA IN Analog VGA input USB interface AUDIO IN Audio input RS232 IN RS-232 serial port input RS232 Out RS-232 serial port output 1.5 Power Supply Connections Insert the 3-pin power plug (100 to 240 VAC, 2A) into well-grounded power socket. - Page 9 LCD Monitor User Manual Note The following keys are only used under the USB signal source: Table 1-3 Description of Remote Control Buttons Function Turn on/ o ff the monitor Turn on/ o ff the sound MENU Enter/Exit main menu FREEZE Freeze the image SOURCE...
-
Page 10: Chapter 2 Terminal Operations
LCD Monitor User Manual Chapter 2 Terminal Operations 2.1 Switch Input Source The monitor supports 5 signal sources: HDMI, DVI, VGA, CVBS , USB. Steps 1. Press SOURCE to enter Input Source page. Figure 2-1 Input Source 2. Press ▼ or ▲ to select the input source. 3. - Page 11 LCD Monitor User Manual Table 2-1 Description of Menu Operations Press MENU and the main menu appears on the screen, such as image mode, audio settings, VGA parameters, etc. Press ▲/▼/◄/► to select a submenu. Press OK to confirm the submenu. Press ▲/▼...
-
Page 12: Configure Image Parameters
LCD Monitor User Manual 2.3 Configure Image Parameters Image Mode You can switch image modes and adjust image parameters including contrast, brightness, color, sharpness, and hue. Enter Image Mode page: MENU → Image Mode , and then press ▲or▼to select Image Mode. Figure 2-3 Image Mode Standard Suitable for a normal environment. - Page 13 LCD Monitor User Manual Enter Backlight Settings page: MENU → Backlight Settings , and then press ▲ or ▼to select Backlight. Figure 2-4 Backlight Settings VGA Parameter When you select VGA as the input source, you can adjust VGA parameters to make the picture show in the correct position.
- Page 14 LCD Monitor User Manual Overscan Settings When there is black border, you can shield the borders for better image quality. Enter Overscan Settings page: MENU → Overscan Settings , and then press◄ or ► to disable Overscan. You can set Left Edge, Right Edge, Top Edge and Bottom Edge from 0 to 100. Figure 2-6 Oversan Settings Note The value of overscan is the pixel value of certain edge.
-
Page 15: Configure Audio Settings
LCD Monitor User Manual Figure 2-7 Aspect Image Freeze Image freeze refers to freezing the current image on the monitor. Enter Image Freeze page: MENU → Other Settings → Image Freeze , and then press ◄ or ►to set Image Freeze as Yes or No to enable or disable the image freeze. Note After switching the input source, the image freeze is automatically disabled by default. -
Page 16: Enable/Disable Keypad Lock
LCD Monitor User Manual Enter Audio Mode page: Menu → Audio Mode , and then press ◄ or ► to set the mute, volume, and balance. Figure 2-8 Audio Settings 2.5 Enable/Disable keypad lock You can disable keypad lock to avoid the misoperation of control panel buttons. Enter Lock Keypad page: MENU →... -
Page 17: System Maintenance
LCD Monitor User Manual Note When the lock keypad keypad lock is enabled, the control panel buttons are invalid. 2.6 System Maintenance The device supports functions such as viewing system information, upgrading software, high temperature protection, no signal screensaver. 2.6.1 Upgrade the Device Please use the latest update package to get all the possible updates. -
Page 18: Configure Temperature Monitoring
LCD Monitor User Manual Figure 2-10 Restore Defaults 2. Press ►to start restoration. A dialog box pops up. 3. Press ◄ to continue restoring the defaults or ► to cancel the operation and back to the menu. 2.6.3 Configure Temperature Monitoring You can enable Overheat Alarm and once the board temperature is too high, an alarm prompt appears on the screen. -
Page 19: View System Information
LCD Monitor User Manual Figure 2-11 Alarm Settings 3. Select Alarm Temp (°C) and press ◄ or ► to adjust the alarm temperature. 4. Press MENU again to complete the settings and back to the main menu interface. 2.6.4 View System Information View the system information for maintenance. -
Page 20: Enable/Disable Auto Sleep
LCD Monitor User Manual 2.6.5 Enable/Disable Auto Sleep When the monitor does not have signal input in a preset interval, it goes to sleep automatically. Steps 1. Enter Auto Sleep page: MENU → Backlight Settings → Auto Sleep . 2. Press ◄ or ► to set Auto Sleep value or turn off Auto Sleep. 3. - Page 21 LCD Monitor User Manual Figure 2-13 Energy Diagram The Energy Diagram appears on the top left of the screen. Current Power The current power of the device. Power Ratio The ratio of the current power to the maximum power. Sum Power The total power accumulated from the factory to the present.
-
Page 22: Chapter 3 Client Operation
LCD Monitor User Manual Chapter 3 Client Operation You can turn on/off the monitor, switch the input signal through the ScreenControl client. 3.1 Log in to Client If you use the client software for the first time, set Control Mode and Screen Type. Before You Start Obtain the ScreenControl software from the CD-ROM and install it. - Page 23 LCD Monitor User Manual 3.4 Switch Input Source You can switch the input source via the client. Before You Start Configure the serial port, and see Configure Serial Port for details. Steps 1. Open the Screen Control page. 2. Hold the mouse to draw a rectangle to select one or multiple virtual screens. 3.
- Page 24 UD10637B...
