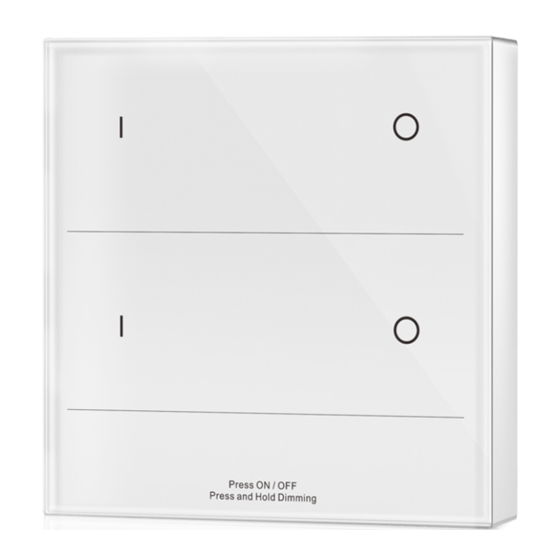

Wall Mounted Touch Panel
Model No.: T20,T20-1,T20-2,T20-3
1-4 Zone dimming switch/Glass touch panel/Wireless remote 30m distance/AAA x 2 battery
T20-1
T20-2
1 Zone switch
2 Zone switch
Features
● Touch panel 1/2/3/4 zone dimming switch RF remote.
● Each zone can remote control multiple Skydance's 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered.
b
● White & Black glass panel available.
Technical Parameters
Input and Output
Output signal
RF 2.4GHz
(
)
Working voltage
3VDC AAA x 2
(
)
Working current
＜5mA
Standby current
＜20μA
Standby time
1 year
Remote distance
30m
Safety and EMC
EMC standard (EMC)
EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
User Manual Ver 1.0.6
T20-3
T20
3 Zone switch
4 Zone switch
LVD RED
Environment
O
O
Operation temperature
Ta: -30
C ~ +55
C
Case temperature
Max.
(
)
T c: +65
O
C
IP rating
IP20
Warranty
5 years
Warranty
Weight
Net weight
0 . 160kg
Gross weight
0 . 190kg
Mechanical Structures and Installations
Installation rack
Batter y compartments
Installation diagram:
Touch panel
Baseplate
Uninstall
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.
Key function
Zone1
T20-1
T20-2
ON key
Short press: Turn on the light of each zone.
Long press(1-6s): Dimming up when light is on.
OFF key
Short press: Turn off the light of each zone.
Long press(1-6s): Dimming down when light is on.
Long press(5s) : Turn on or turn off tone when light is off.
www.iskydance.pl
20.50 mm
86.00 mm
61.00 mm
Typical base as below:
European style
Base
Zone1
Zone1
Zone2
Zone2
Zone3
T20-3
T20
86 size
Zone1
Zone2
Zone3
Zone4

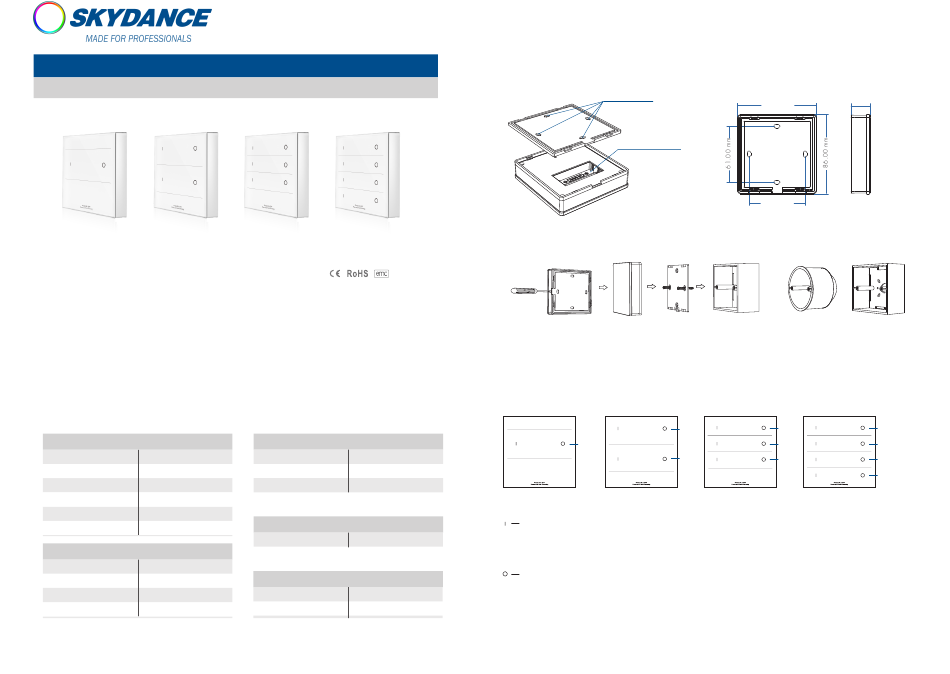

Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE T20
Summary of Contents for SKYDANCE T20
- Page 1 3 Zone switch 4 Zone switch LVD RED Features ● Touch panel 1/2/3/4 zone dimming switch RF remote. ● Each zone can remote control multiple Skydance’s 2.4G LED controllers. ● Ultra sensitive high strength glass touch panel. Touch panel Baseplate European style...
- Page 2 T20,T20-1,T20-2,T20-3 Wall Mounted Touch Panel Touch Panel work as RF remote (two match ways) End user can choose the suitable match/delete ways. Two options are offered for selection: Use the controller’s Match key Use Power Restart Match: Match: Switch off the power of the receiver, then switch on power again, Short press match key, immediately press ON immediately short press ON key 3 times on the touch panel.
