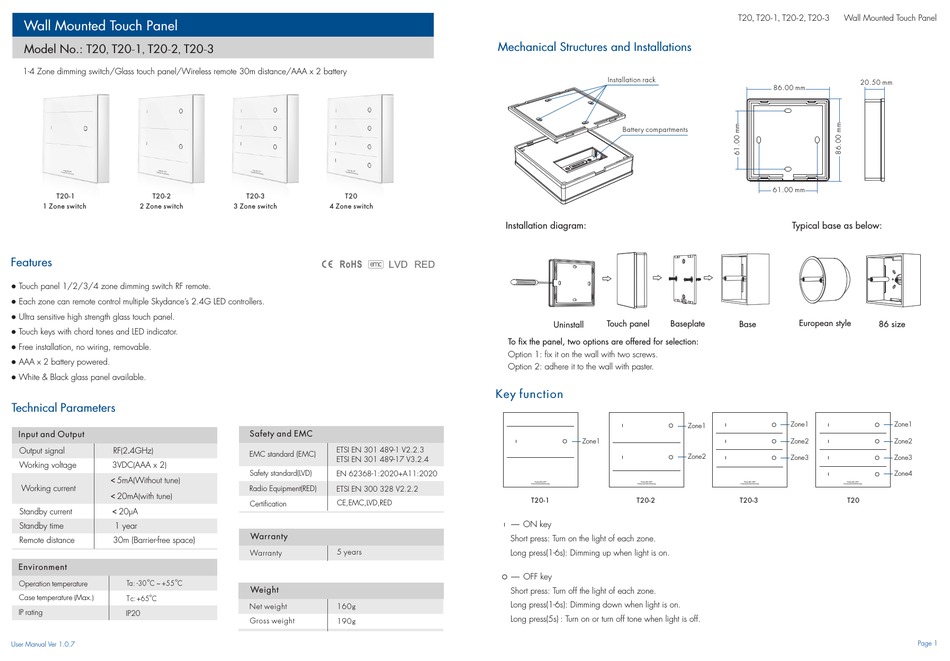

SKYDANCE T20 Quick Start Manual

Wall Mounted Touch Panel
Model No.: T20,
T20-1,
T20-2,
T20-3

1-4 Zone dimming switch/Glass touch panel/Wireless remote 30m distance/AAA x 2 battery
T20-1 T20-2

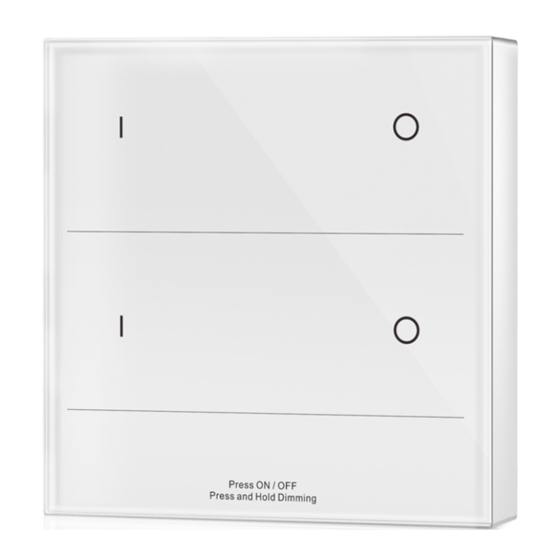

1 Zone switch 2 Zone switch
Features
● Touch panel 1/2/3/4 zone dimming switch RF remote.
● Each zone can remote control multiple Skydance's 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered. b
● White & Black glass panel available.
Technical Parameters
Input and Output
Output signal RF 2.4GHz
( )
Working voltage 3VDC AAA x 2 ( )
＜5mA Without tune
( )
Working current
＜20mA with tune
( )
Standby current ＜20μA
Standby time 1 year
Remote distance 30m (Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature ( Max. ) O
T c: +65 C
IP rating
IP20
User Manual Ver 1.0.7
T20-3 T20
3 Zone switch 4 Zone switch
LVD RED
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certification
Warranty
5 years
Warranty
Weight
Net weight 160g
Gross weight 190g
Mechanical Structures and Installations
Installation rack
Batter y compartments
Installation diagram:
Touch panel Baseplate
Uninstall
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.
Key function
Zone1
T20-1 T20-2
ON key
Short press: Turn on the light of each zone.
Long press(1-6s): Dimming up when light is on.
OFF key
Short press: Turn off the light of each zone.
Long press(1-6s): Dimming down when light is on.
Long press(5s) : Turn on or turn off tone when light is off.
T20,
T20-1,
T20-2,
T20-3 Wall Mounted Touch Panel
20.50 mm
86.00 mm
61.00 mm
Typical base as below:
European style
Base
Zone1
Zone1
Zone2
Zone2
Zone3
T20-3 T20
86 size
Zone1
Zone2
Zone3
Zone4
Page 1
