SKYDANCE T1-K Installation Instructions

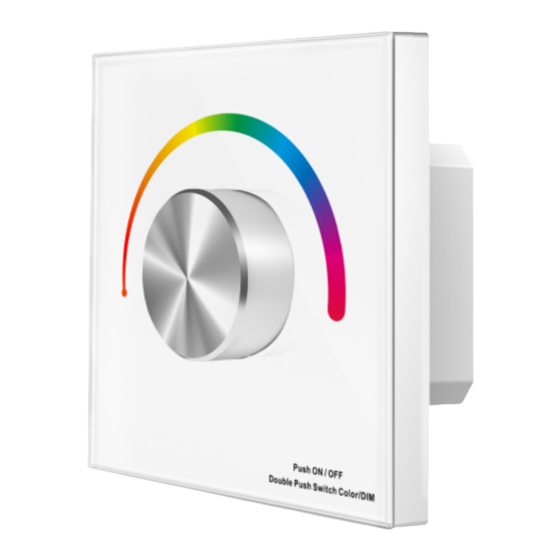

Wall Mounted Rotar y Panel
Model No.: T1-K, T2-K, T3-K
1-3 color/Glass panel/Rotary dimming/DC input/3 channel constant voltage PWM output/Wireless remote control
T1-K
Features
● Rotar y panel single color, dual color or RGB PWM constant voltage controller.
● Rotate knob to change RGB color, color temperature or brightness.
Compatibility with Skydance's 2.4G dimming remote control
●
● Push/Rotate with chord tones and LED indicator.
Technical Parameters
Input and Output
Model
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Light type
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
User Manual Ver 1.0.2
T1-K
12-24VDC
12.5A
3 x (12-24)VDC
3CH,4A/CH
144-288W
Constant voltage
Single color
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
T2-K
.
T2-K
12-24VDC
10.5A
2 x (12-24)VDC
2CH,5A/CH
120-240W
Constant voltage
Dual color
Environment
Operation temperature
Case temperature
IP rating
Warranty and Protection
Warranty
Protection
www.iskydance.com
T3-K
T3-K
12-24VDC
12.5A
3 x (12-24)VDC
3CH,4A/CH
144-288W
Constant voltage
RGB
O
Ta: -30 C ~ +55
Max.
( ) O
T c: +85
C
IP20
5 years
Reverse Polarity
LVD
O
C
Page 1
