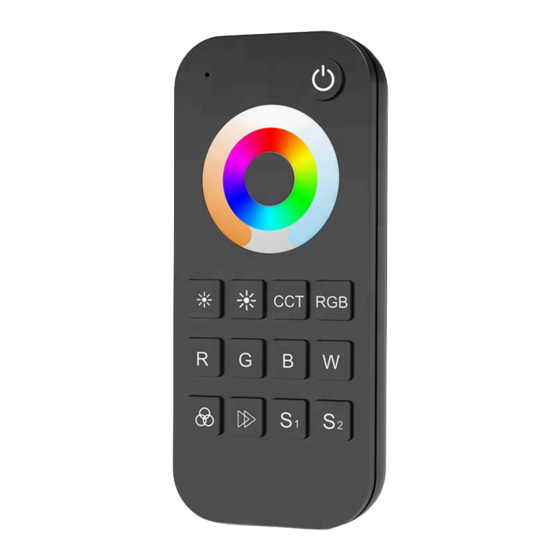

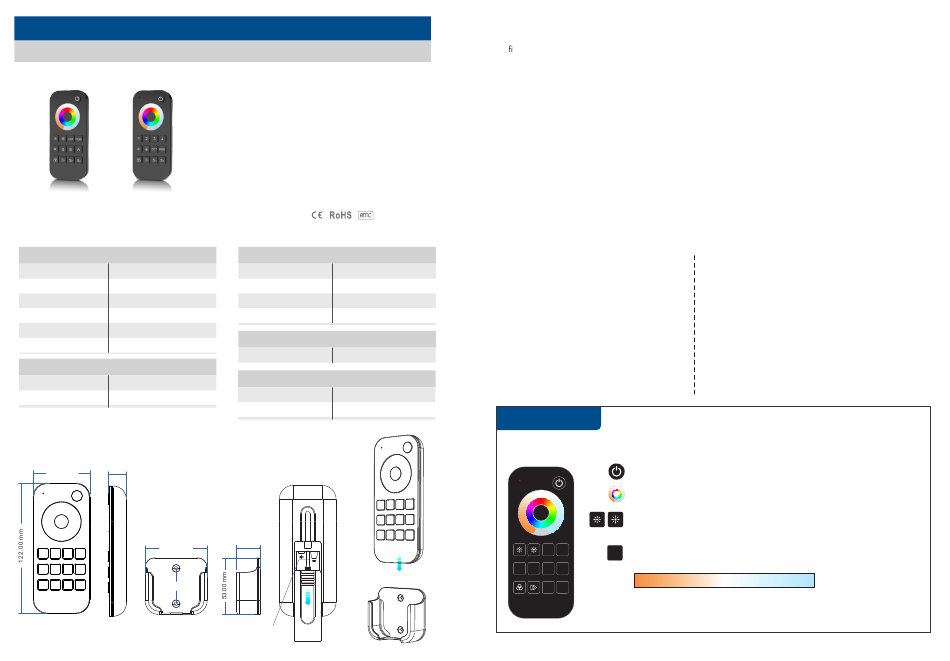

SKYDANCE RT5 User Manual

Touch Wheel RF Remote Controller
Model No.: RT5/RT10
1 and 4 zone RGB+CCT/Touch color wheel/Wireless remote 30m distance/AAAx2 battery
RT5 RT10
1 Zone RGB+CCT 4 Zone RGB+CCT
Technical Parameters
Input and Output
Output signal RF 2.4GHz
( )
Working voltage 3VDC AAAx2
( )
Working current
＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
IP rating
IP20
Mechanical Structures and Installations
17.50 mm
53.00 mm
58.00 mm
33.00 mm
User Manual Ver 1.0.7
Features
● Apply to RGB+CCT LED controller.
● Ultra sensitive color adjustment touch wheel.
● Each remote can match one or more receiver.
● AAAx2 b attery powered.
● Operate with LED indicator light.
LVD RED
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
Warranty
Warranty 5 years
Weight
Net weight 0 . 04 8 k g
Gross weight
0 . 088k g
22.00 mm
Back holder
3VDC(AAAx2) Battery
To x the remote, two options are offered for selection:
Option 1: fix the remote' back holder on the wall with two screws.
Option 2: adhere the remote' back holder to the wall with paster.
Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel , the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life , no touch or press key operation after a few seconds ,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) of the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
Key function
RT5 1 zone RGB+CCT remote
●
:Turn on/off light.
:Touch to change RGB color or color temperature.
Press RGB or CCT key to switch between RGB wheel and CCT wheel.
: Adjust RGB or color temperature brightness,
short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
: Adjust color temperature by WW/CW channel,
CCT RGB
CCT
short press 11 levels, long press adjust WW+CW brightness continuously.
R G B W
S S
1 2
1
Warm White
WW 100%
CW 0%
RT5,RT10 Touch Wheel RF Remote Controller
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
.
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
11
6
Cool White
Natural White
WW 0%
WW 100%
CW 100%
CW 100%
