SKYDANCE T1-KB Manual

Wall Mounted Rotar y Panel RF Remote
Model No.: T1-KB, T2-KB, T3-KB
1-3 color/Glass panel/Rotary dimming/Wireless remote 30m distance/CR2032 battery
T1-KB
Features
● Rotar y glass panel RF remote, apply to single color, dual color or RGB LED controller.
● Rotate knob to change RGB color, color temperature or brightness,
support long press or twice click operation.
● Each remote can match one or more receiver.
● CR2032 batter y powered.
● White & Black glass panel available.
Technical Parameters
Input and Output
Output signal RF 2.4GHz ( )
Working voltage 3VDC CR2032 ( )
Working current ＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Warranty
5 years
Warranty
User Manual Ver 1.0.1
T2-KB
T3-KB
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
Certification CE,EMC,LVD,RED
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
IP rating
IP20
Knob function
T1-KB Single color dimmer
Push ON / OFF
Long Push Dimming
LVD

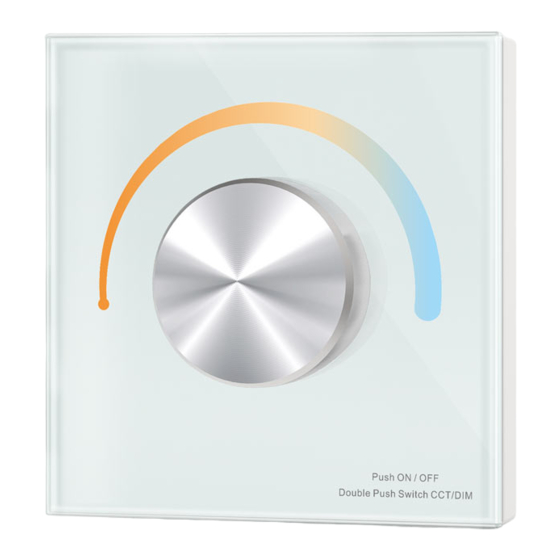

T2-KB Dual color temperature
Push ON / OFF
Double Push Switch CCT/DIM
T3-KB RGB
Push ON / OFF
Double Push Switch Color/DIM
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to adjust brightness (2.5 turns, 50 levels).
● Long push(1-6s): Continuous 256 levels brightness adjustment.
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to change color temperatur e or brightness (2.5 turns, 50 levels).
● Push twice: Switch between color temperatur e or brightness adjustment.
● Long push(1-6s): Continuous 256 levels brightness adjustment.
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to change RGB color (3 turns , 60 colors)
or brightness (2.5 turns, 50 levels).
● Push twice: Switch between RGB color or brightness adjustment.
● Long push(1-6s): Continuous 256 levels brightness adjustment.
