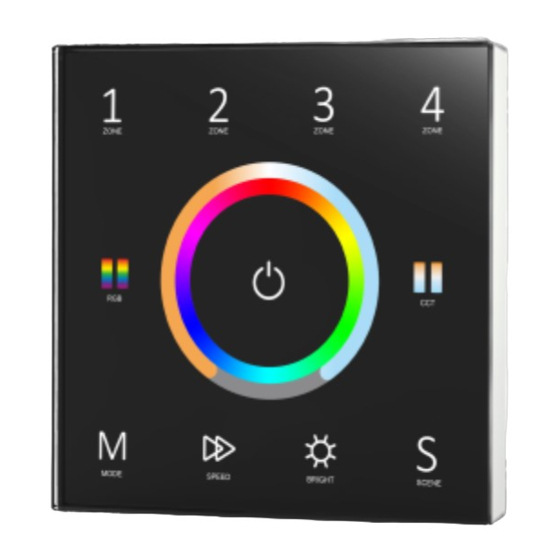

SKYDANCE T25-1 User Manual

Wall Mounted Touch Panel
Model No.: T25-1

4 Zone/1-5 color in one/Glass touch panel/Color wheel/Wireless remote 30m distance/AAA x 2 battery
Features
● Touch panel 4 zone 1-5 color universal RF remote.
● Each zone can be set as single color, dual color(WW/CW), RGB, RGBW or RGB+CCT light type.
● Each zone can remote control multiple Skydance's 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color slide.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered. b
● White & Black glass panel available.
Technical Parameters
Input and Output
Output signal RF 2.4GHz ( )
Working voltage 3VDC AAA x 2
( )
Working current ＜5mA
Standby current ＜20μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
User Manual Ver 1.0.5
LVD RED
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +65 O
C
IP rating
IP20
Warranty
5 years
Warranty
Weight
0 . 150k g
Net weight
Gross weight 0 . 190k g

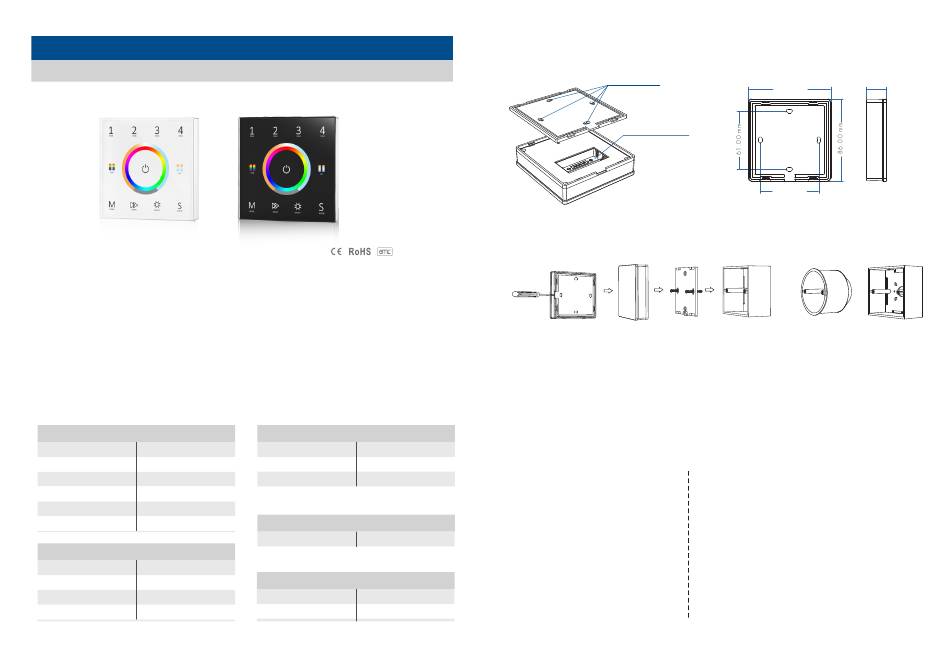

Mechanical Structures and Installations
Installation rack
Batter y compartments
Installation diagram:
Touch panel Baseplate
Uninstall
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press zone
key of the touch panel.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match.
The LED indicator fast flash a few times
means all matched remotes were deleted.
T25-1 Wall Mounted Touch Panel
20.50 mm
86.00 mm
61.00 mm
Typical base as below:
European style
Base
Use Power Restart
Match:
Switch off the power of the receiver, then switch on power again,
immediately short press zone key 3 times on the touch panel.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power of the receiver, then switch on power again,
immediately short press zone key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.
86 size
