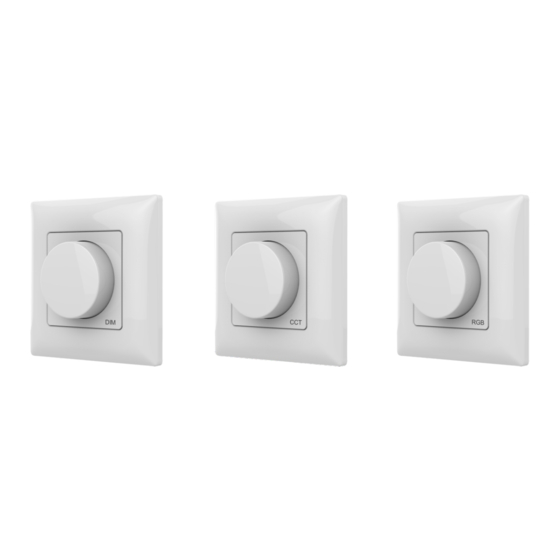

Rotar y Panel RF Remote Controller
Model No.: PK1, PK2, PK3
Rotar y dimming/1-3 color/Wireless remote 30m distance/CR2032 batter y
PK1
1 Zone Dimming
Features
● Apply to single color, dual color or RGB LED controller.
● Rotate knob to change RGB color, color temperature or brightness, support long press or twice click operation.
● Each remote can match one or more receiver.
● CR2032 battery powered .
● Removeable and stick anywhere easily, or mount on wall use panel base.
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Warranty
Warranty
User Manual Ver 1.0.2
PK2
1 Zone CCT
RF 2.4GHz
(
)
3VDC CR2032
(
)
＜5mA
＜10μA
1 year
30m
5 years
www.iskydance.com
PK1,PK2,PK3
Rotar y Panel RF Remote Controller
1 Zone RGB
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
PK3
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE PK1
Summary of Contents for SKYDANCE PK1
- Page 1 PK1,PK2,PK3 Rotar y Panel RF Remote Controller Rotar y Panel RF Remote Controller Model No.: PK1, PK2, PK3 Rotar y dimming/1-3 color/Wireless remote 30m distance/CR2032 batter y 1 Zone Dimming 1 Zone CCT 1 Zone RGB LVD RED Features ● Apply to single color, dual color or RGB LED controller.
- Page 2 PK1,PK2,PK3 Rotar y Panel RF Remote Controller Mechanical Structures and Installations 23.00 mm 86.00 mm 21.00 mm 50.00 mm Replace batter y: Typical base as below: C 2032 Battery Note: Before the first use, please remove the protective film on the battery.
- Page 3 PK1,PK2,PK3 Rotar y Panel RF Remote Controller Knob function Single color dimming remote ● Push Turn on or off light. After turn on light: ● Rotate: Rotate knob to adjust brightness(2.5 turns, 50 levels). ● Long push(1-6s): Continuous 256 levels brightness adjustment.
- Page 4 PK1,PK2,PK3 Rotar y Panel RF Remote Controller Safety information 1. Read all instructions carefully before you begin this installation. 2. When installing battery, pay attention to the battery positive and negative polarity. A long time without the remote control, remove the battery.
