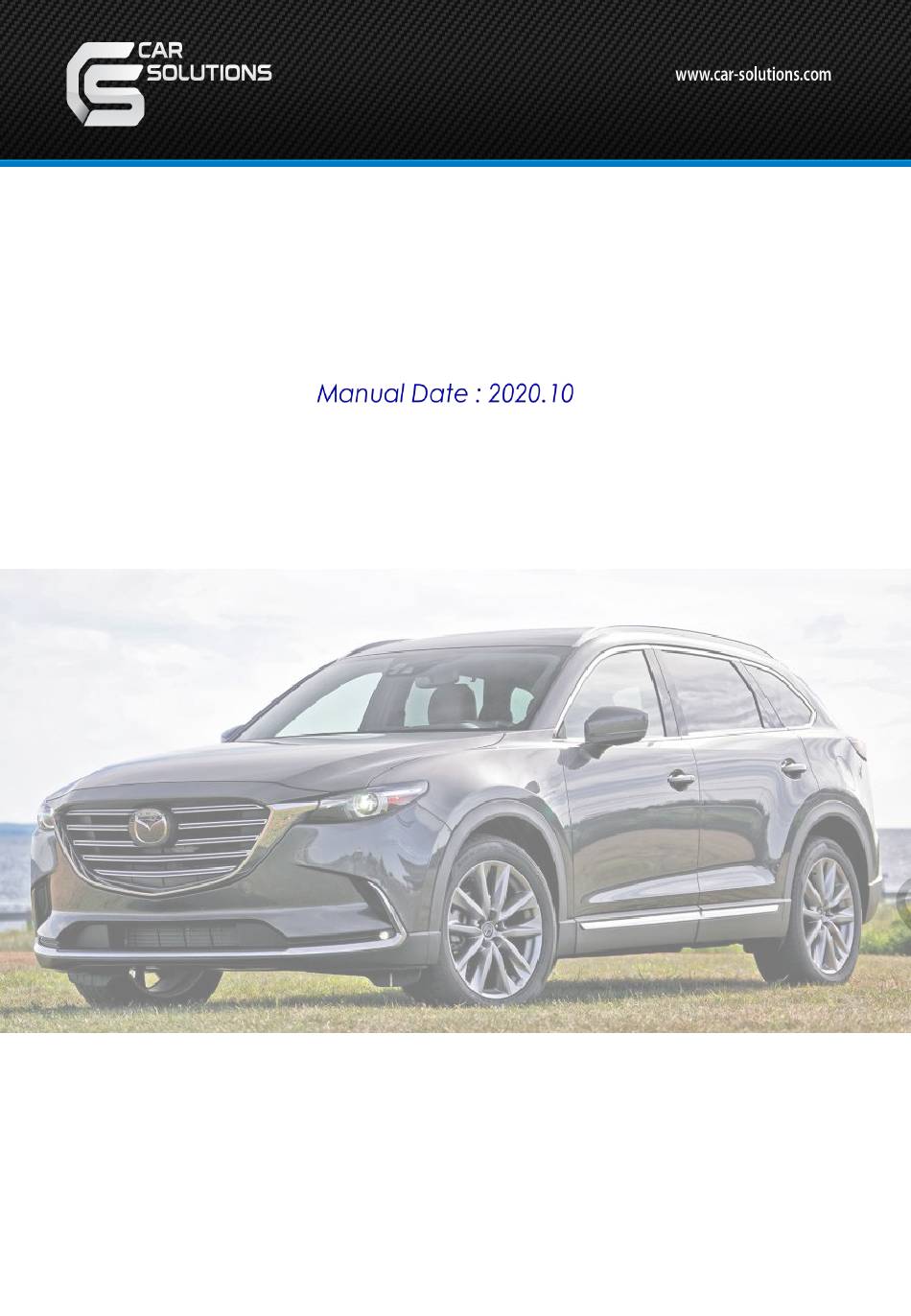

- Page 1 Installation Manual Multimedia Interface for Mazda car-solutions.com support@car-solutions.com...

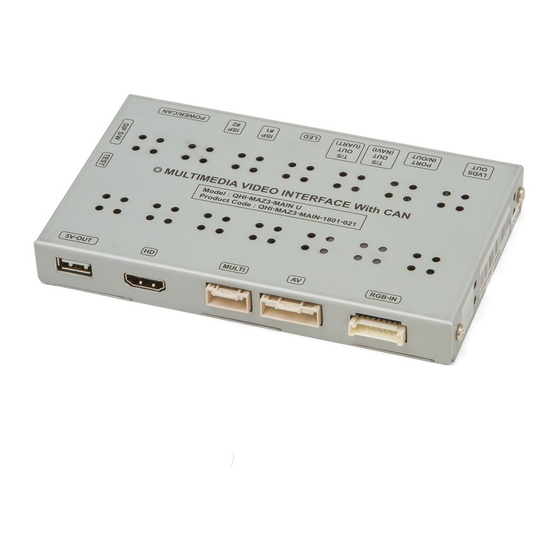

- Page 2 Car compatibility: CX9 2017~ MAZDA3 2017~ CX5 2015~ Components: Interface Main*1 Sub Board*1 Interface Input / Output specification : Input: LVDS IN (Car System) *1 HDMI *1 Analog RGB *1 AV *1 CVBS(Front Camera) *1 CVBS(Rear Camera) *1 Output: LVDS OUT (Car System) *1 Power Spec: Input Power: 8VDC ~ 18VDC...
- Page 3 Main board Power J By J MULTI cable RGB cable QCPASS1199 HPOWER0204 HARETC0240 HRGBCA0026 Sub board HDMI Cable LCD IN cable *2 LVDS cable QCPASS1192 HARETC0067 HLVDSC0063 HARETC0259 AUX cable Res. T/S cable AV cable REAR cable HAVCAB0056 HARETC0265 HTOUCH0004 HARETC0002 IR cable Remote cable...
- Page 4 ON: DOWN / OFF: UP * Please make sure to disconnect the power cable of interface and reconnect to apply dip switch setting whenever changing DIP switch. FUNCTION Dip S/W SETTING OFF : RGB DISPLAY RGB INPUT MUTE ON : Skipping RGB Mode OFF : HDMI1 DISPALY HDMI1 MODE MUTE ON : Skipping HDMI1 Mode...
- Page 5 FUNCTION POWER & PIP MENU Activating OSD menu Making a selection, changing image display ▲ Moving upward ▼ Moving downward Moving leftward ◀ (If you press this button 2 seconds long, you can access the factory mode) Moving rightward ▶ (If you press this button 2 seconds long, you can reset all the data about user environment) car-solutions.com...
- Page 6 Menu of FACTORY IMAGE IMAGE H-POSITION PARK V-POSITION H-POSITION/V-POSITION Setting UTIL1 UTIL2 INFO MENU to Return SEL to Select/Save Menu of FACTORY IMAGE PAS TYPE PARK PAS SETUP UTIL1 REAR TYPE UTIL2 RADAR ENABLE INFO MENU to Return SEL to Select/Save PARK PAS TYPE: Select parking line type NOT USED: Do not use parking line...
- Page 7 Menu of FACTORY UTIL1 IMAGE NAVI MODEL NAVI/HDMI MODEL: Android, car-play, navigation PARK HDMI MODEL UTIL1 CAR MODEL model setting UTIL2 AVOUT SELECT INFO FCAM FUNC CAR MODEL: Select the car model FCAM TIME HDMI2 SKIP: HDMI2 Mode (ON/OFF) MENU to Return SEL to Select/Save AVOUT SELECT: Select background sound through car AUX...
- Page 8 <Gear box> <Steering wheel> Position Steering Wheel Gear box Buttons Hang-up phone Music Home Star Wheel Long Mode changes Short Back to OEM mode <Gear box> <Steering Wheel> Position Steering Wheel Gear box Buttons «,» Push knob up/down Function DTV Channel up/down car-solutions.com support@car-solutions.com...
- Page 9 OEM MNT & HU * OEM power able to supplied power female connector, supplied power male connector to OEM head unit. Supplied LVDS cable HLVDSC0063 *2 OEM Cable 1 LVDS from MNT to sub board “LCD OUT” Power/CAN Connection 2 LVDS from under the head unit to sub board “Command IN”...
- Page 10 Remove OEM LCD cable from MNT and head unit 1. Remove OEM LCD cable, con nect 2 pcs supplied LVDS cable instead. 2. Connect supplied LVDS cable Remove OEM LCD cable from MNT and head unit from MNT to sub board LCD OUT port.
- Page 11 Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.
