Summary of Contents for Car Solutions RNS-E PU

  • Page 1 – RNS E PU Video Interface www.car-solutions.com support@car-solutions.com...
  • Page 2: Product Composition

    Product Composition Power Cable 1 EA RGB Navi Cable 1 EA Interface Board 1 EA A/V Cable 1 EA LVDS Cable 1 EA Audio Cable 1 EA Sub Board 1 EA LVDS Cable 1 EA OSD Keypad 1 EA...
  • Page 3: About Interface

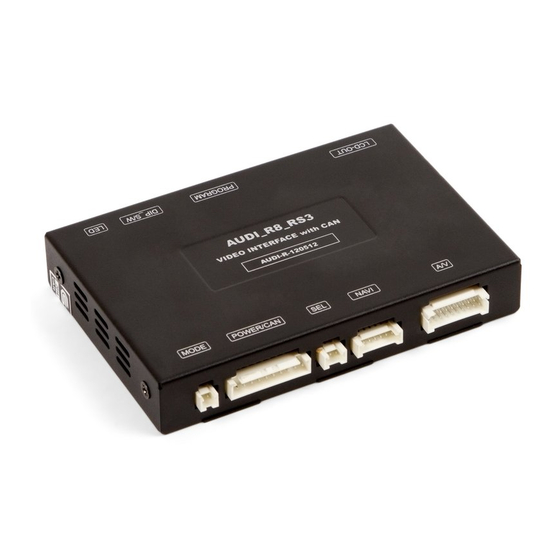

    About Interface External Appearance Dimension 127mm * 83mm * 22mm * This can change under manufacturer’s circumstance...
  • Page 4: Connector Pin Assignment

    Connector Pin Assignment...
  • Page 5: Dip S/W Setting

    DIP S/W Setting ※ ON : DOWN , OFF : UP FUNCTION DIP S/W Selection : Skipping RGB Mode RGB INPUT MUTE : NAVI Display : Skipping CVBS1 CVBS1 MUTE : CVBS1 Display : Skipping CVBS2 CVBS2 MUTE : CVBS2 Display : NAVI-AV NAVI : NAVI-RGB...
  • Page 6 I-DRIVE Control Mode Change Control  Mode Change Push Long :...
  • Page 7: Osd Menu

    OSD MENU First Menu Second Menu Third Menu Action ELT-980XU Slim AMPIRE DVX-101 GI4000 Selection Korea 480*234 GI8000 Selection Korea 800*480 GI8000 3G Selection Korea 800*480 PANASONIC Selection Taiwan 480*234 NAVI-RGB PT-GPS800A Selection China 480*234 KD900(WVGA) Selection China 800*480 SANYO NECVOX KD900(WQVGA) Selection China 480*234...
  • Page 8 OSD MENU First Menu Second Menu Third Menu Action DVBT55HD Pioneer ELT-DVBT20 Selection Europe NET-770 Selection Korea MEDIALIFE Selection Korea PANASONIC Selection Japan PIONEER Selection Japan DVB-T(DMB) GEX-DTV Selection Japan DVB-T2010HD Config PORTUGAL Selection Europe DVB-T20010HD Selection Europe DVBT55-HD Selection Europe CMMB-ZW Selection China Reset...
  • Page 9 OSD Menu First Menu Second Menu Third Menu Action Original Rear camera RearCam – Type Use aftermarket Rear camera ExtDevice Rear camera get +12V consistently Rear camera get +12V when reverse gear on. RearCam –Power AUTO Shut out the power supply. Original Front camera FrontCam –Type Use aftermarket Front camera...
  • Page 10 OSD Menu ▶ Navi-RGB Menu First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color – Red Adjust the value of RED Image Color –Green Adjust the value of GREEN Color –Blue Adjust the value of BLUE Reset...
  • Page 11 OSD Menu ▶ OSD Setting – Parking Mode Display : Parking line display On/Off Horizontal : Parking line move Left/Right Vertical Vertical : Parking line move Up/Down TP : Parking line clarity AutoPower : Parking line ACC control Horizontal On: Rear camera get a power supply when reverse gear on. But, Depend on camera Spec.
  • Page 12 OSD Menu ▶ OSD Setting – Utility Mode Reset All : Initialization Info: Software version. ▶ OSD Setting – Utility Mode - Horizontal - Vertical - Scaler X Up - Scaler X Down - Scaler Y Up - Scaler Y Down...
  • Page 13 Install – Head Unit...
  • Page 14 Install – Monitor (1)
  • Page 15 Install – Monitor (2) Separate the cable.
  • Page 16 Install – Connect the LVDS Cable...
  • Page 17 Install – Sub Board...
  • Page 18 Install – CAN –High/Low wire connection CAN H PIN #9 SECTION D CAN H PIN #10 SECTION D...
