Car Solutions R04-MB14 Manual

Components

R04-MB14 POWER / CAN Cable

Dip Switch Settings

OFF
ON
ON: ▼
OFF: ▲
No.1 Rear View CAM ON(▼) / OFF(▲)
No.2 Front View CAM ON(▼) / OFF(▲)
No.3
No.4
Selection of
ON(▼) / OFF(▲)
car model
No.5
No.6

Setting mode

① Enter into the setting mode.

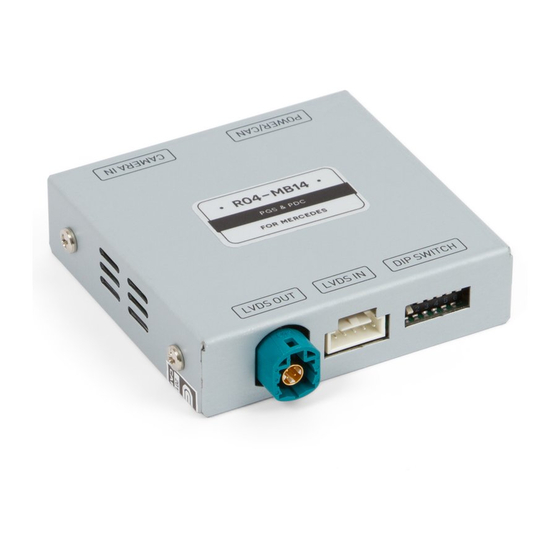

R04-MB14 Rear View Camera Interface
LVDS Cable RVC Cable
No.3 No.4 No.5 No.6
E, CLS /
OFF(▲) ON(▼) OFF(▲) ON(▼)
B, CLA /
OFF(▲) ON(▼) ON(▼) ON(▼)
B, CLA /
ON(▼) OFF(▲) OFF(▲) OFF(▲)
V-Class /
OFF(▲) ON(▼) OFF(▲) OFF(▲)
V-Class /
OFF(▲) OFF(▲) ON(▼) ON(▼)
② Adjust guide lines position and ON / OFF

Version Information

FVC(AV1) Cable
Setting mode
Car models
7, 8-inch
8-inch
7-inch
8.4-inch
7-inch
③ Adjust PDC sensors position and ON / OFF
Release Date: 2015 - 06 - 01
Model Name R04-MB14
2015 - 05 – 24
Latest Firmware Date
Manual Version Rev. 1.7
Manual Release Date 2015 - 06 - 01
Button
Enter into the setting menu.
★
(Bookmark)
(Press the button 5 seconds)
Select( ) Select the setting menu and setting values.
BACK Back to previous menu.
Move the menu-pointer and adjust the
Dial(▲, ▼, ◀, ▶)
setting values
Change the mode to FVC(AV1),
BACK
(Steering wheel)
when press the button 2 seconds.
④ Adjust values of brightness and contrast.
Function
1
