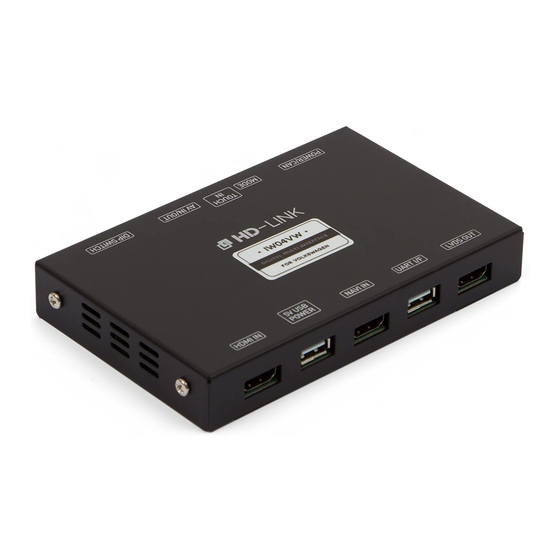

- Page 1 Release Date: 2016 - 06 - 25 Instruction Manual High-Definition Link for Volkswagen Golf(MK7) Latest Firmware Date 2015 - 11 - 11 Manual Version Rev. 2.9 support@car-solutions.com www.car-solutions.com Language English...
-
Page 2: Table Of Contents
Contents • Cautions ____________________________________________________________ 3 • Dimension & Exterior _________________________________________________ 4 • Components & Optional parts _________________________________________ 5 • Full Installation Diagram ______________________________________________ 7 • HDMI Connection Diagram ____________________________________________ 9 • Navigation Connection Diagram _________________________ 10 • Compatibility Chart for Navigation(GPS) box models ___________________ 12 •... -
Page 3: Cautions
Cautions Device related • You should check the names and colors of each wires exactly, before you connect the wires. ex) CAN HIGH: White wires / CAN LOW: Blue wires • The ‘POWER / CAN Cable’ should always be connected last and be disconnected first. •... - Page 4 Dimension Width: 142 mm Height: 22 mm Length: 91 mm ⓐ ⓑ ⓒ ⓓ ⓔ Exterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ TOUCH IN (Connect To Set top Device) ⓓ MODE ⓔ POWER / CAN ⓕ HDMI IN ⓖ...
- Page 5 Components Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable AV IN / OUT Cable 5-pin Micro USB Cable (For LVDS) Optional Parts (sold separately) HDMI Cable HDMI Extender Mode Switch (Male to Male) (For stick type HDMI device) support@car-solutions.com www.car-solutions.com...
-
Page 6: Full Installation Diagram
Full Installation Diagram Main Connector of Head Unit Main Connector of Head Unit(In the Glovebox) ※ Optional External Devices Navigation Box Mode Touch Cable Switch for Navigation (optional) RV-CAM Video Input External Rear View 12V Power Output & GND Output(RV-CAM Power) Camera Reverse Signal Detection(optional) OEM Monitor... -
Page 7: Hdmi Connection Diagram
HDMI Connection Diagram HDMI Device HDMI Device HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) -
Page 8: Navigation Connection Diagram
Navigation Connection Diagram Navigation Connection Diagram Navigation(GPS) Box Navigation(GPS) Box HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI TOUCH TOUCH (USB cable connecting is for ‘N-Link’ only.) I-NAVI X1 CUBE Microcity - N-Link support@car-solutions.com... -
Page 9: Compatibility Chart For Navigation(Gps) Box Models
Compatibility Chart for Navigation(GPS) box models Dip S/W Model Country Required Parts (Navigation) MICROCITY South Korea N-Link HDMI Cable USB A-A Cable Hazard Module (HDMI to HDMI) (USB to USB) (Refer to Page.11) ↓ iNAVI South Korea X1 CUBE OFF(↑): 1, 2, 3, 4 HDMI Cable (HDMI to HDMI) ↑... -
Page 10: Lvds Connection Diagram
LVDS Connection Diagram LVDS Connection HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER OEM Monitor HDMI (Provided LVDS Cable) • 'Genuine(OEM) LVDS Connector' should be connected to ‘LVDS IN / OUT PCB'. • ‘Provided LVDS Connector' should be connected to the Multimedia System - OEM Head Unit OEM monitor instead to the genuine connector. -
Page 11: Body Connector Specifications
Body Connector specifications POWER / CAN AV IN / OUT DIP SWITCH MODE TOUCH-IN (NO. 1, 2 Pins) 1 2 3 4 Length: 20 cm Length: 100 cm Length: 150 cm Length: 100 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT... -
Page 12: Car Compatibility Chart
Car Compatibility Chart Production Car Models Specific Models Year Golf 2010 - Polo 2014 - The device is used in combination with Volkswagen Infotainment System. VW Golf Discover Pro(8-inch) VW Golf Discover Media(5.8-inch) VW Golf Composition Media(5.8-inch) VW Polo Composition Media(6.5-inch) The IW03GF supports the Chevrolet(GM) original screen &... -
Page 13: Activation By Original Buttons
Activation by original buttons Button Function Operation Remarks Changing Order: HDMI → NAVI → AV2 → OEM Press the button 2 seconds long. Modes MENU Press the button 2 times quickly. < OEM → NAVI > Shortcut to Each modes Press the button 3 times quickly. -
Page 14: Dip Switch Settings
DIP Switch Settings ON: ▼ OFF:▲ ON(▼) No.6 No.7 No.8 No.9 No.10 Car Models OFF(▲) Golf - 5.8-inch Screen HDMI Mode Skip HDMI Mode OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) (Composition Media / 400*240) Golf / 8-inch Screen Navigation Mode Skip Navigation Mode ON(▼) OFF(▲) OFF(▲) -
Page 15: Settings
Settings Button Function Operation Press the ‘CAR’ button Enter into the setting menu 5 seconds long. (Head Unit Controller) All functions of setting menu of the device is controlled Touch Screen (OEM Monitor) by a touch screen of the OEM monitor. 1. -
Page 16: Hdmi Mode Settings
Settings 2. HDMI mode settings - Mode selection: HDMI ↔ NAVI - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of HDMI display. - Screen position & size Entry Disabled / Not applicable. 3. NAVI mode settings - Mode selection: NAVI ↔... -
Page 17: Rear View Camera Settings
Settings 4. Rear view camera settings - Parking guide lines = Adjust position of parking guide lines and select the lines ‘ON or OFF’. - Parking distance control = Adjust position of Parking Distance Control sensors to ‘LEFT or RIGHT’ and select PDC function ‘ON or OFF’. - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of Rear view camera display. -
Page 18: Automatic Activation Function(Av1)
Settings 6. Automatic activation function(AV1) - Shift gear from reverse to drive - Shift gear from parking to drive * When you shift gear ‘from reverse to drive’ or ‘from parking to drive’, it just works automatically during the activation time you selected. 7. -
Page 19: System Settings
Settings 8. System settings - Safe mode = Select the one of two between ‘ON and OFF’. * If you select ‘ON’, 3 modes(HDMI, NAVI and AV2) will be faded out when the car is driven. - Factory default = Reset all setting values to factory default setting. 9.
