Daihan Scientific ThermoStable SOV-20 User Manual

Smart vacuum ovens
Hide thumbs Also See for ThermoStable SOV-20:
Table of Contents

Advertisement

Quick Links

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
.
Certifications by
- - -
ISO 9001 Certified.
ISO 13485 Certified
UL/CUL Certified
CE Certified
PL Insurance.
Validation(IQ&OQ) Service.
Sales & Basic A/S :
By the Nearest Official Distributors.

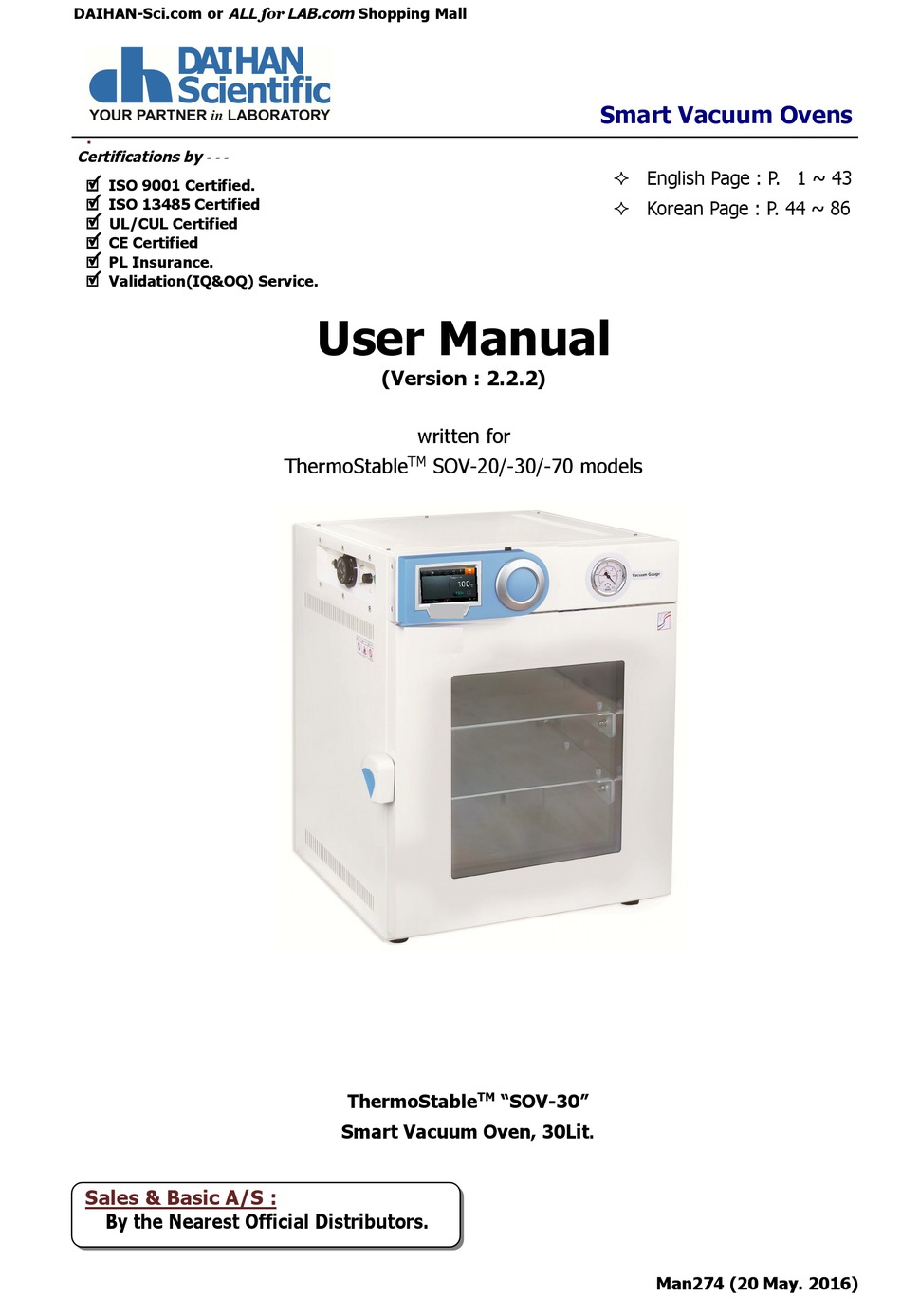

User Manual
(Version : 2.2.2)
written for
ThermoStable
TM
SOV-20/-30/-70 models

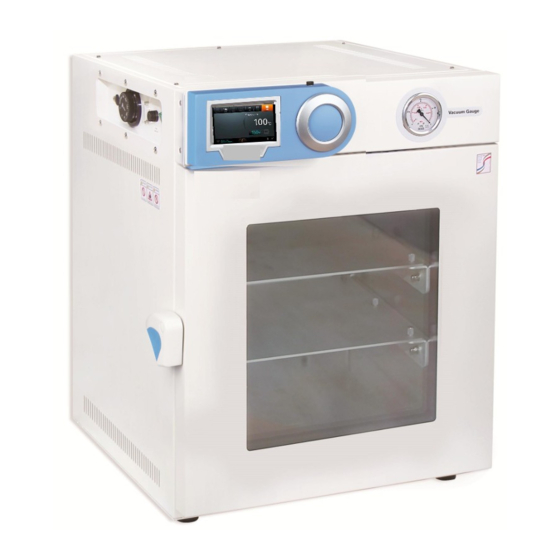

ThermoStable
Smart Vacuum Oven, 30Lit
Smart Vacuum Ovens
² English Page : P. 11 ~ 43
² Korean Page : P. 44 ~ 86
TM
"SOV-30"
.
Man274 (20 May. 2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThermoStable SOV-20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daihan Scientific ThermoStable SOV-20

Summary of Contents for Daihan Scientific ThermoStable SOV-20

  • Page 1 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Smart Vacuum Ovens Certifications by - - - ² English Page : P. 11 ~ 43 ISO 9001 Certified. ISO 13485 Certified ² Korean Page : P. 44 ~ 86 UL/CUL Certified CE Certified PL Insurance.
  • Page 2 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall DAIHAN Scientific, Smart Vacuum Oven 2/67...

  • Page 3: Table Of Contents

    3.2 Names of Each Part ................. 20 3.3 Usage Instructions .................. 25 4. Products Management Methods 4.1 Maintenance and Management..............39 4.2 Troubleshooting..................41 4.3 Accessories..................... 42 5. Product Assurance 5.1 Quality Assurance ................... 43 DAIHAN Scientific, Smart Vacuum Oven 3/67...

  • Page 4: General

    This symbol indicates power “OFF” on the power on/off switch. This symbol indicates power “ON” on the power on/off switch. This symbol indicates the connection point of the neutral conductor on the installed unit. This symbol indicates alternating current Voltage. DAIHAN Scientific, Smart Vacuum Oven 4/67...

  • Page 5: Product Introduction

    8. The necessary matters during the experiment can be conveniently used by the support of SUB MENU. 9. The safety device for overheating prevention, and over current and short circuit prevention circuitry that preferentially consider the user’s safety are mounted. 10. CE Certified Products. 11. PL(Product Liability) Insurance DAIHAN Scientific, Smart Vacuum Oven 5/67...

  • Page 6: Product Configuration

    OV-30 : Precise Vacuum Ovens, 30 Liter. ThermoStable OV-70 : Precise Vacuum Ovens, 70Liter. ThermoStable SOV-20: Smart Vacuum Ovens, 18.6Liter. ThermoStable SOV-30 : Smart Vacuum Ovens, 30 Liter. ThermoStable SOV-70 : Smart Vacuum Ovens, 70Liter. DAIHAN Scientific, Smart Vacuum Oven 6/67...

  • Page 7: Installation

    4. The product should be positioned in a location where it has enough space for ventilation and prevention from fire. The recommended distance of each side is minimum 20cm from the back wall, 100cm from the side walls and ceiling respectively. DAIHAN Scientific, Smart Vacuum Oven 7/67...
  • Page 8 Product Liability (PL) Insurance Admission ¨ DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance), so that its customers can trust our products, (believe and use its products,) by preparing against the accident which can be occurred during using the products by self-production.
  • Page 9 In addition, please install using the vibration-proof and rubber, etc. so that the vibration is not transferred to the vacuum pump. DAIHAN Scientific, Smart Vacuum Oven 9/67...

  • Page 10: Tm App & Web Service

    SETTING menu is activated. <Fig.2.2.2> Screen in opeation <Fig.2.2.3> Screen when opeation is stopped “System”, “WiRe”, “WiRe Users” are specific menu items to connect WiRe Service in “SETTING”. Proceed in order of description numbers as shown below. DAIHAN Scientific, Smart Vacuum Oven 10/67...
  • Page 11 “Select time zone” synchronizes to the time of a country if WiRe Service is used as a Mobile App that is using the device. Make sure to enter the country wherein a device is being used. DAIHAN Scientific, Smart Vacuum Oven 11/67...
  • Page 12 Be sure to check if USB dongle is properly installed if WiFi signal is not available. (check flashing LED light) After connecting to WiFi, it switches back to the previous page if the blue return icon on the top right is clicked. DAIHAN Scientific, Smart Vacuum Oven 12/67...
  • Page 13 IDs. In such cases, a single user can check several devices for the list of registered devices emerges when logged in with a single ID from a mobile App. <Fig.2.2.10> Existing UserID registration DAIHAN Scientific, Smart Vacuum Oven 13/67...
  • Page 14 ID, Password, Name once entered is not possible to change. <Fig.2.2.12> Enter new usser information <Fig.2.2.13> ID, Password error message DAIHAN Scientific, Smart Vacuum Oven 14/67...
  • Page 15 WiRe Users menu. After proceeding to the steps above, WiRe Service is ready to use for it is connected to a Mobile App. Please refer user’s manual for setting device functions. DAIHAN Scientific, Smart Vacuum Oven 15/67...

  • Page 16: Product Specifications

    67 kg 100 kg Power Consumption 600 W 600 W 1.6 kW Power Supply & Cord Plug* 1 Phase, AC 120V, 60Hz or AC 230V, 50/60 Hz * Other Specifications are available upon Customer's Request. DAIHAN Scientific, Smart Vacuum Oven 16/67...

  • Page 17: Product Usage

    DAIHAN Scientific, Smart Vacuum Oven 17/67...
  • Page 18 If the regulator SAFETY is set to 0, the heater does not operate. If unexpected sound, smell or smog is generated, pull the main plug out from the wall socket and contact the technical assets of DAIHAN Scientific If irradiated or contaminated samples are placed in the chamber, the warranty is voided.
  • Page 19 Electronic Equipment(WEEE) Directive 2002/96/EC ※ All of the circuits, electrical or mechanical parts and configurations used in this product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through the education from DAIHAN Scientific should be allowed to repair this product.

  • Page 20: Names Of Each Part

    ② while the needle of gauge moves from the right to the left. Controller Set and Check operation ③ Door Handle Door Open and Locking ④ <Table 3.2.1> Names of each part and description DAIHAN Scientific, Smart Vacuum Oven 20/67...
  • Page 21 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall ⑤ ⑥ ⑦ ⑧ ⑨ ThermoStable SOV-20 (120V,230V) : 250V F 10AH ThermoStable SOV-30 (120V,230V) : 250V F 10AH ThermoStable SOV-70 (120V,230V) : 250V F 20AH <Fig.3.2.4> Right Side of Precise Vacuum Oven " ThermoStable OV " ⑩...
  • Page 22 2. Put Samples into the Chamber before performing the operation of the product. 3. Check the Vent Control Valve in the vacuum control unit of the oven, and close it by completely turning clockwise. 4. Open the Vacuum Control Valve by horizontally turning. DAIHAN Scientific, Smart Vacuum Oven 22/67...
  • Page 23 The flask used in the vacuum state should be safely used after being fixed using a joint clip and hanging in the Clamp. DAIHAN Scientific, Smart Vacuum Oven 23/67...
  • Page 24 Indicates current date, time, operation hours ⑪ Operation Information Indicates operation information ⑫ Operation ON/OFF ICON Indicates ON/OFF in operation with icons Heater ON Heater OFF In operation Stopping <Table.3.2.3> Name and description of parts DAIHAN Scientific, Smart Vacuum Oven 24/67...

  • Page 25: Usage Instructions

    Touch the “STOP” button on the top right to stop the device and check the SETTING menu being activated since SETTIGN menu is disabled during operation. DAIHAN Scientific, Smart Vacuum Oven 25/67...
  • Page 26 When setting a Restart mode: It operates depending on (4) Operation Mode. A) Fixed Mode: When reauthorizing the power, it automatically operates at a temperature set that it previously operated on and the operation time on main screen starts from 0 again. DAIHAN Scientific, Smart Vacuum Oven 26/67...
  • Page 27 Set date and time you want to operate the device and it will start at the reserved time. Minimum time required to use this mode is 5 minutes. It automatically turns off after being applied one time. <Fig.3.3.5> reserve opeation setting DAIHAN Scientific, Smart Vacuum Oven 27/67...
  • Page 28 Program Mode can select one of two different methods to reach a target temperature. The following describes how to set the product operation. Please refer to ④Program for how to set Program Mode in detail. Program Mode setting <Fig.3.3.7> DAIHAN Scientific, Smart Vacuum Oven 28/67...
  • Page 29 (1) Buzzer You can select ON/OFF for Error alarm. (2) Touch Sound You can select ON/OFF for Touch Button sound. (3) Data Initialization It initializes Operation Settings stored and Chart Data. <Fig.3.3.9> Data Initialization DAIHAN Scientific, Smart Vacuum Oven 29/67...
  • Page 30 (2) Password Change It allows password to change. Enter 4 digits password stored in "Current Password" (factory setting “0000”) and type in “New Password” and “Retype Password” to finalize the process. DAIHAN Scientific, Smart Vacuum Oven 30/67...
  • Page 31 If you want to set Segment within Pattern, select the Pattern number you want to select as Segment, create by using + button next to Segment. If you want to delete, press the corresponding Segment number and verify the selection in while color, delete using – button. DAIHAN Scientific, Smart Vacuum Oven 31/67...
  • Page 32 If OK is pressed after entering the value set, you can immediately verify the changes from graph. Segment graph is displayed depending on the operation method selected from ramp or normal from Program Mode of Operation Mode. DAIHAN Scientific, Smart Vacuum Oven 32/67...
  • Page 33 Pattern from Program Settings screen. If Pattern is created from Program Settings, you can set and store Repeat Mode regardless of Operation Mode. However, when operating with Program Mode, you must set Repeat Mode to ON. DAIHAN Scientific, Smart Vacuum Oven 33/67...
  • Page 34 (A) Start Segment: Select first Segment for repeat operation (B) End Segment: Select final Segment for repeat operation (C) Segment Count: Set the number of repeats from Start Segment till End Segment <Fig.3.3.22> Enter Sequence You can enter maximum Sequence of 10 DAIHAN Scientific, Smart Vacuum Oven 34/67...
  • Page 35 Temperature Zone (set error of the target temperature ± value) without moving into the next Segment. If not reached the temperature set within Remaining Time in Ramp Mode, Wait Time starts. ⑦ <Fig.3.3.24> Wait Settings <Fig.3.3.24> Wait time Settings(1) <Fig.3.3.24> Wait time Settings(2) DAIHAN Scientific, Smart Vacuum Oven 35/67...
  • Page 36 After inserting a USB into the port on top of controller, it stores in the USB if the store icon on top right is pressed. Error message appears if USB is not recognized. Press “OK” button and remove USB and reinsert and press the store icon. DAIHAN Scientific, Smart Vacuum Oven 36/67...
  • Page 37 In case a user must test by matching temperature gauge used as a standard for test with temperature gauge shown on the controller, you can set the value of offset and increase or decrease the temperature displayed on the screen. DAIHAN Scientific, Smart Vacuum Oven 37/67...
  • Page 38 * Touch Screen is rebooted when the reset button is pressed. Press Reset Button by inserting appropriate tools (paper clips) into Reset hole on the right side of Touch Screen as shown below in case Touch Screen fails. DAIHAN Scientific, Smart Vacuum Oven 38/67...

  • Page 39: Maintenance And Management

    9. Wipe with soft towels after unplugging power, and moisten a towel with lower-temperature freezing solvent to remove dirt. 10. Adjust air ducts as needed and close the entrance to store for contaminants may enter from outside when not in use. DAIHAN Scientific, Smart Vacuum Oven 39/67...
  • Page 40 2. For proper air circulation in the working chamber, please don't load samples too tightly and give enough and regular space between samples. 3. Please don't touch side or floor in the chamber, it may have high temperature still and may cause injury. DAIHAN Scientific, Smart Vacuum Oven 40/67...

  • Page 41: Troubleshooting

    Check the closed state of the Door. Check the degree of adhesion between the Door gasket and the glass. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. DAIHAN Scientific, Smart Vacuum Oven 41/67...

  • Page 42: Accessories

    Standard Shelf, Aluminum, "OVS070", w395xd395xh130mm, for 70 Lit. Validation Service(lQ, OQ), "OVV020", for "ThermoStable OV-20" DH.WOV31020 Validation(lQ, OQ) Service Validation Service(lQ, OQ), "OVV030", for "ThermoStable OV-30" DH.WOV31030 DH.WOV31070 Validation Service(lQ, OQ), "OVV070", for "ThermoStable OV-70" DAIHAN Scientific, Smart Vacuum Oven 42/67...

  • Page 43: Product Assurance

    4. This certification is only for international customers. Smart Vacuum Ovens Item ThermoStable SOV- Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea TEL: +82-2-967-5235 FAX: +82-2-963 5231 Email: info@daihansci.co.kr -Sci.com www.DAIHAN www.ALL forLAB.com DAIHAN Scientific, Smart Vacuum Oven 43/67...
