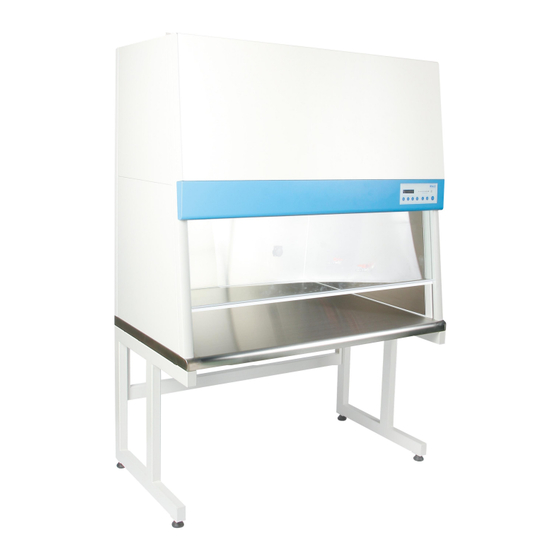

  • Page 1 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Laminar Flow Clean Bench Certifications by - - - ISO 9001 Certified. ² English Page : P. 11 ~ 22 ² Korean Page : P. 23 ~ 44 User Manual (Version : 2.2.2) written for Maxtream V12/ V15 / V18 models...
  • Page 2 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall DAIHAN Scientific, Laminar Flow Clean Bench 2/44...
  • Page 3: Table Of Contents

    3.2 Names of Each Part ................. 13 3.3 Usage Instructions .................. 15 4. Products Management Methods 4.1 Accessories .................... 19 4.2 Maintenance and Management ..............20 4.3 Troubleshooting ..................21 5. Product Assurance 5.1 Quality Assurance ................... 22 DAIHAN Scientific, Laminar Flow Clean Bench 3/44...
  • Page 4: General

    This symbol indicates power “OFF” on the power on/off switch. This symbol indicates power “ON” on the power on/off switch. This symbol indicates the connection point of the neutral conductor on the installed unit. This symbol indicates alternating current Voltage. DAIHAN Scientific, Laminar Flow Clean Bench 4/44...
  • Page 5: Product Introduction

    11. Because two valves connected with outside are mounted, the maximum support for the situation requiring in service is possible. 12. Because two outlets are mounted in inside of this product, the support for various experiments and broad-based use is possible. DAIHAN Scientific, Laminar Flow Clean Bench 5/44...
  • Page 6: Product Configuration

    - Including a copy of the Operation Manual * Models Maxtream V12 : Laminar Flow Clean Bench, 1,280mm width Maxtream V15 : Laminar Flow Clean Bench, 1,580mm width Maxtream V18 : Laminar Flow Clean Bench, 1,880mm width DAIHAN Scientific, Laminar Flow Clean Bench 6/44...
  • Page 7: Installation

    13. Because this product is a stand-alone type, please refer to it when you use this product. In addition, since the stand is delivered in the separated state in the factory shipment, please be careful. DAIHAN Scientific, Laminar Flow Clean Bench 7/44...
  • Page 8 When you adjust foot to below height of the caster, Clean Bench will be fixed on the floor. Please fix all of 4 foots and later please do leveling of Clean Bench. If it has not good in level, please adjust height of foot by "Foot height adjustment screw" DAIHAN Scientific, Laminar Flow Clean Bench 8/44...
  • Page 9: Product Specifications

    Tempered Safety Glass Sliding Door Utility Device 1XAir Cook, 1XGas Cock, 2X220V Consent Material Internal : Stainless Steel(#304), External : Powder Coated Steel Power Supply* 1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz, with Cord/Plug DAIHAN Scientific, Laminar Flow Clean Bench 9/44...
  • Page 10: Product Usage

    Do not install the product where it can get damp or in a dusty environment. It may cause overheating or short circuit. – Pollution Degree 2 Do not install the product in a location at an altitude of over 2,000 meters (6,562 feet). DAIHAN Scientific, Laminar Flow Clean Bench 10/44...
  • Page 11 If unusual noise or signs of abnormal behavior are found during use of this product, please immediately contact the supplier or DAIHAN Scientific (Co., Ltd.) after turning off the power supply and disconnecting the power line.
  • Page 12 ※ All of the circuits, electrical or mechanical parts and configurations used in this product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through the education from DAIHAN Scientific should be allowed to repair this product.
  • Page 13: Names Of Each Part

    Cover for Room of HEPA Filter, Fan ⑥ Socket Two power socket applied cover. ⑦ Sliding Door Sliding Glass door which has U/V protection ⑧ Stand Stand for Unit ⑨ <Table.3.2.1> Names of each part and description DAIHAN Scientific, Laminar Flow Clean Bench 13/44...
  • Page 14 FAN Button Set the operation of FAN ⑦ UV Button Set the operation of UV Lamp ⑧ LAMP Button Set the operation of Florescent Lamp ⑨ Maxtream <Table 3.2.2> Controller for " " DAIHAN Scientific, Laminar Flow Clean Bench 14/44...
  • Page 15: Usage Instructions

    While the FAN is operating, the LED of FAN button is lighted regardless of FAN SPEED, which indicates that the FAN is operating. The FAN is operated only by ON/OFF button regardless of the Open state of Door. Therefore, DAIHAN Scientific, Laminar Flow Clean Bench 15/44...
  • Page 16 Pressing the UV button, ON/OFF of UV Lamp is run. While Lamp is turned On, "UP"/"Down" button is not applied. The LED of UV button flashes while the timer is operating, and the LED of UV button is DAIHAN Scientific, Laminar Flow Clean Bench 16/44...
  • Page 17 If the Fluorescent Lamp is turned ON while UV Lamp is operating, the UV Lamp during operating is turned OFF, and the Fluorescent Lamp is turned ON, and the timer operation of UV Lamp during operating is also initialized. DAIHAN Scientific, Laminar Flow Clean Bench 17/44...
  • Page 18 And we recommend kind of solid tube as like teflon which is 10mm size to the external pipe line which is installed at right side of unit. DAIHAN Scientific, Laminar Flow Clean Bench 18/44...
  • Page 19: Products Management Methods

    Ordering Number Information Validation Service(lQ, OQ), "LCV1200", for " Maxtream V12" DH.WLCV1203 Validation(lQ, OQ) DH.WLCV1503 Validation Service(lQ, OQ), "LCV1500", for " Maxtream V15" Service DH.WLCV1803 Validation Service(lQ, OQ), "LCV1800", for " Maxtream V18" DAIHAN Scientific, Laminar Flow Clean Bench 19/44...
  • Page 20: Maintenance And Management

    Do not clean the unit aggressively. Otherwise, the coating or painting of the product could be damaged. - Cleaning Method of the Exterior Clean the exterior using a neutral detergent and soft cloth. Do not clean the unit aggressively. Otherwise, the coating or painting could be damaged. DAIHAN Scientific, Laminar Flow Clean Bench 20/44...
  • Page 21: Troubleshooting

    If the noise is terrible, please replace it after checking the status of the HEPA Filter. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. DAIHAN Scientific, Laminar Flow Clean Bench 21/44...
  • Page 22: Product Assurance

    Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea Tel : +82 2 967 5235 Fax : +82 963 5231 email : info@daihansci.co.kr -Sci.com www.DAIHAN www.ALL forLAB.com DAIHAN Scientific, Laminar Flow Clean Bench 22/44...
