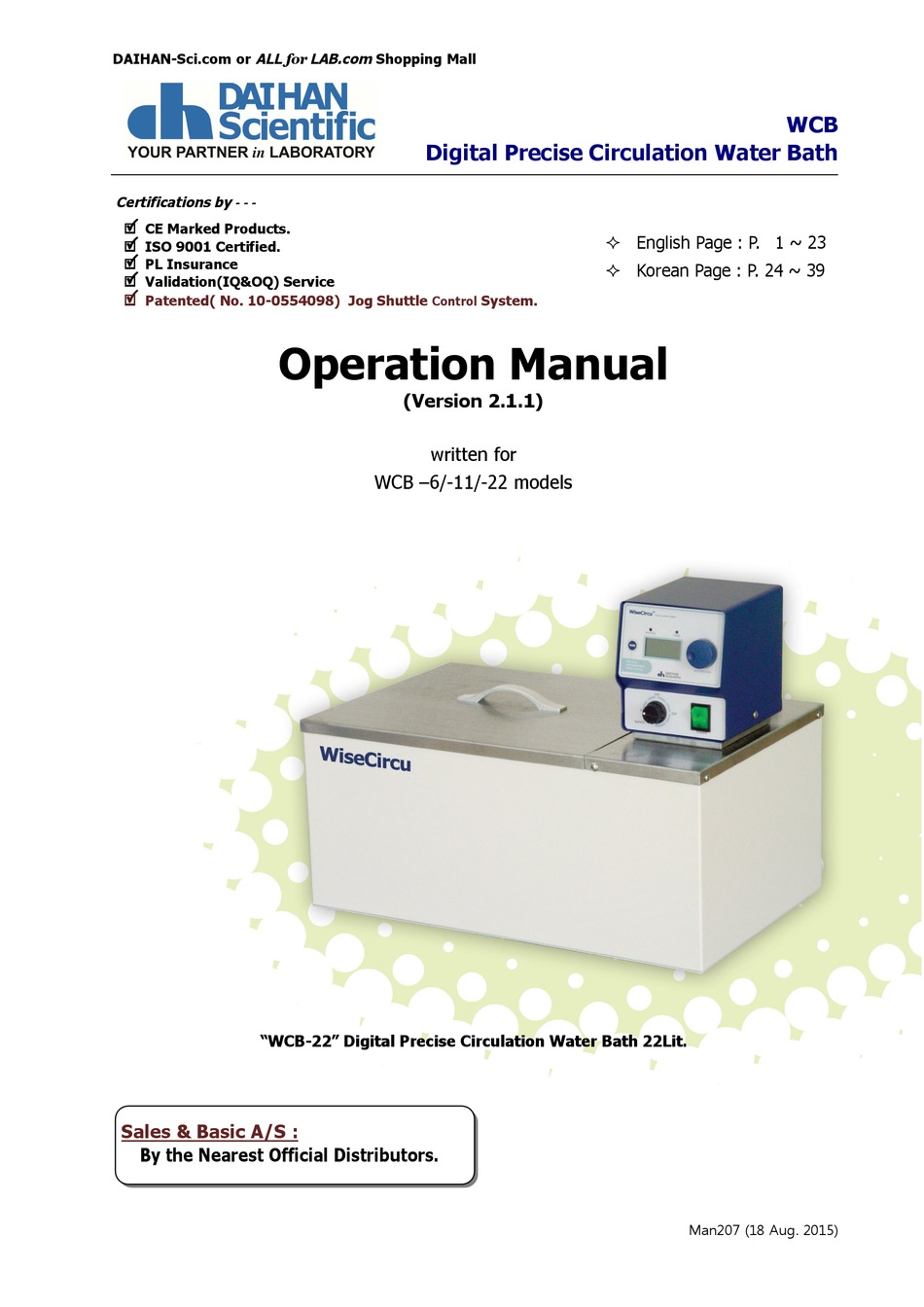

Operation Manual
"WCB-22" Digital Precise Circulation Water Bath 22Lit.
Sales & Basic A/S :
By the Nearest Official Distributors.
Digital Precise Circulation Water Bath
System.
Control
(Version 2.1.1)
written for
WCB –6/-11/-22 models
² English Page : P. 11 ~ 23
² Korean Page : P. 24 ~ 39
Man207 (18 Aug. 2015)
WCB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daihan Scientific WCB
Summary of Contents for Daihan Scientific WCB
- Page 1 ² Korean Page : P. 24 ~ 39 Validation(IQ&OQ) Service Patented( No. 10-0554098) Jog Shuttle System. Control Operation Manual (Version 2.1.1) written for WCB –6/-11/-22 models “WCB-22” Digital Precise Circulation Water Bath 22Lit. Sales & Basic A/S : By the Nearest Official Distributors. Man207 (18 Aug. 2015)
- Page 2 Showing Compliance to the above Standards are available on request. Signed: ____________________________ (Chong ku Shu) Date: 18, April 2016 Authority: President / CEO DAIHAN Scientific Co., Ltd., 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea Tel: 82-2-967-5235, Fax: 82-2-967-5258 WCB Digital Precise Circulation Water Bath 2/39...
-
Page 3: Table Of Contents
7. Cautions in Use ………………............... 14 8. Controller Details ..................16 9. Operation ................... 17 10. Specifications …………................ 20 11. Maintenance …………………..............21 12. Troubles & Solutions ..……..............22 13. Certificate ......………............23 WCB Digital Precise Circulation Water Bath 3/39... -
Page 4: Safety Instructions
Do not handle the power cord harshly. Disconnection or short may cause if you bend or put a heavy thing on the device. When you take a plug out in a wall socket, turn the power off and then take the plug out carefully. WCB Digital Precise Circulation Water Bath 4/39... - Page 5 Do not install the device where it can get damp or dust. It may be caused overheating, a short circuit or a fire by damp or dust inside of the device. WCB Digital Precise Circulation Water Bath 5/39...
- Page 6 When an object that is easy to be combustible like a stone, a metal or paper goes inside, it may cause a fire, an electric shock or a break down. If do, pull out the mains plug from a socket and contact a manufacturer or a supplier. WCB Digital Precise Circulation Water Bath 6/39...
- Page 7 Never use with a explosive sample. Please avoid ultraviolet lamps. It could be cracked or faded. Disconnect the power supply plug if the unit is not used for an extended period of time. WCB Digital Precise Circulation Water Bath 7/39...
-
Page 8: Before Use
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Before Use Thank you very much for purchase of WCB-6/-12/-22 Digital Precise Circulation Water Bath. This operation manual describes performance, usage, cautions and notices for use of the purchased product. Before use, please confirm this manual and use properly. -
Page 9: Introduction
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Introduction WCB Digital Precise Circulation Water Baths are useful for various kind of laboratory works such like Chemistry, Life Science, Medical Science, Pharmacology, etc. Convenience and safety in use is considered in developing and manufacturing this product. -
Page 10: Package Contents
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Package Contents WCB-6/-12/-22 Digital Precise Circulation Water Bath ............ [ 1 ] Power Cord ........................[ 1 ] Stainless steel Lid ......................[ 1 ] Operation Manual ......................[ 1 ] Models Classification by Application... -
Page 11: Appearance And Naming

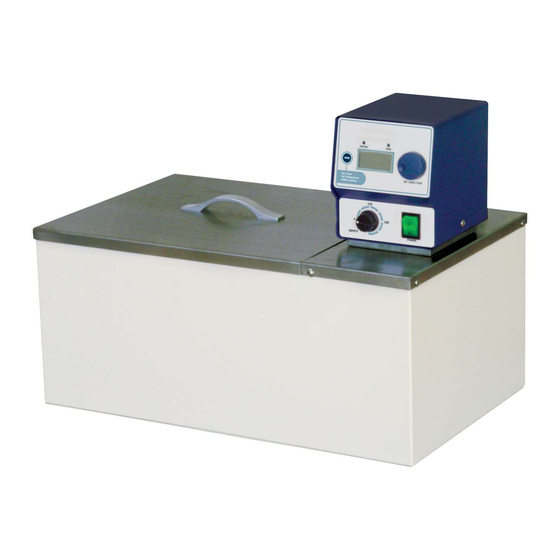

Stainless Steel Lid SAFETY Knob Main POWER Switch Water Drain Circulation Extension (Inlet + Outlet) Heater Coil + Overheat Sensor + Temp Sensor + Level Sensor Stainless Steel Bath <Fig. 1> Appreance of WCB WCB Digital Precise Circulation Water Bath 11/39... -
Page 12: Installation
Do not use this device when temperature fall below 15°C and rise above 35°C. Do not use the device at a place with high temperature. Do not operate the device near a heater, blowing an air-conditioner. It may be caused an accident by over- heating. WCB Digital Precise Circulation Water Bath 12/39... - Page 13 It may cause a fire or damage of the device as not to release heat or insufficient ventilation may result. Set the device a lightening place. When you set the device at a dark place, it may cause an unexpected accident by mistake in operation. WCB Digital Precise Circulation Water Bath 13/39...
-
Page 14: Cautions In Use
The devices could be disassembled and serviced only by the engineers of manufacturer or by engineers approved by manufacturer. Do not touch the device with wet hand while operation. WCB Digital Precise Circulation Water Bath 14/39... - Page 15 Never use for a explosive sample. Please avoid ultrasonic lamps. It could be cracked or faded. Disconnect the power supply plug if the unit is not going to be used for an extended period of time. WCB Digital Precise Circulation Water Bath 15/39...
-
Page 16: Controller Details
- Setting the value of Temperature or Timer by Turing. - Start and stop by Pushing. ⑥ SAFETY knob : safety device which protect an uncontrolled overheating of the machine. ⑦ POWER switch WCB Digital Precise Circulation Water Bath 16/39... -
Page 17: Operation
TIMER lamp ④ is on. The machine starts operation (heating) after the SV of timer has passed. l It returns to Set Operation Timer mode by pushing MODE button ②. WCB Digital Precise Circulation Water Bath 17/39... - Page 18 In such a case, WCB Circulation Water bath offers a function of adjusting the PV temperature within –10.0 ~ +10.0°C Þ User’s self-compensation function.
- Page 19 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall 5. Summarization of Mode Transition By the simple combination of MODE button and Jog-shuttle knob, WCB circulation water bath offers outstanding user-interface with maximum efficiency and convenience for controlling overall functions of the machine. (Patent registered) The following diagram briefly shows the overall mode transition mechanism.
-
Page 20: Specifications
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Specifications WCB Digital Precise Circulation Water Bath 20/39... -
Page 21: Maintenance
5. Before cleaning the machine, please be sure to pull the power cord off. 6. For cleaning of the machine, we recommend you to use neutral detergent and soft cloth. Do not use coarse cloth, strong chemicals or organic solution. WCB Digital Precise Circulation Water Bath 21/39... -
Page 22: Troubles & Solutions
SV and it is maintained without problem, it is normal situation. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. WCB Digital Precise Circulation Water Bath 22/39... -
Page 23: Certificate
Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea Tel : +82 2 967 5235 Fax : +82 963 5231 email : info@daihansci.co.kr -Sci.com www.DAIHAN www.ALL forLAB.com WCB Digital Precise Circulation Water Bath 23/39...
