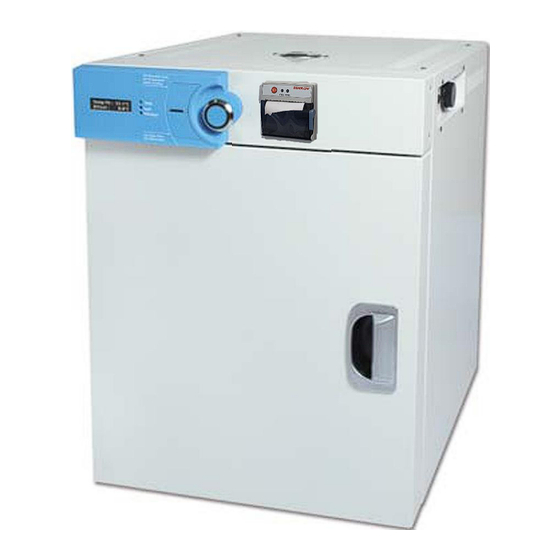

- Page 1 ISO 9001 Certified. PL Insurance. (Product Liability Insurance) Patented (Patent No. 10-0554098) Jog Dial Control System. User Manual (Version 1.0.0) written for MaXterile DH-30, MaXterile DH-50 models MaXterile DH-30 " ” Dry Heat Sterilizer. Sales & Basic A/S : By the Nearest Official Distributors.
-
Page 2: Table Of Contents
3.2 Part Names ..................3.3 How to Use ....................17 4. How to Manage the Product 4.1 Accessories ..................4.2 Maintenance and Management ............4.3 Troubleshooting ................5. Product Warranty 5.1 Quality Assurance ..................29 DAIHAN Scientific, Dry Heat Sterilizer 2/30... -
Page 3: General
This symbol indicates power “OFF” on the power on/off switch. This symbol indicates power “ON” on the power on/off switch. This symbol indicates the connection point of the neutral conductor on the installed unit. This symbol indicates alternating current Voltage. DAIHAN Scientific, Dry Heat Sterilizer 3/30... -
Page 4: Product Introduction
9. The Product Liability Insurance (PL Insurance) for this product ensures your right to be compensated for any unexpected accidents while using it. (100 million won each for bodily injury and property damage) DAIHAN Scientific, Dry Heat Sterilizer 4/30... -
Page 5: Product Components
DAIHAN-Sci.com 1. General 1.3 Product Component Component Photo Component Name No. of Configuration MaXterile DH -30, 50 1 unit Stainless Steel Shelves 2 ea - Including a copy of the Operation Manual DAIHAN Scientific, Dry Heat Sterilizer 5/30... -
Page 6: Installation
5. Place the device on a level, horizontal surface to support the capacity of the device without vibration. 6. Once the unit is placed in its installation location, let the unit stand for 15-30 minutes so that all DAIHAN Scientific, Dry Heat Sterilizer 6/30... - Page 7 Product Liability (PL) Insurance Admission ¨ DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance), so that its customers can trust our products, (believe and use its products,) by preparing against the accident which can be occurred during using the products by self- production.
-
Page 8: Product Specifications
458×595×h664 mm 518×647×h724 mm (w x d x h) Packing 562×702×h747 mm 622×754×h807 mm Net Weight 36 kg 44 kg Shipping Weight 43 kg 59 kg Power Consumption 1.2 Kw Electric Reqts. 230V, 50/60 Hz DAIHAN Scientific, Dry Heat Sterilizer 8/30... -
Page 9: Precautions For Use
DAIHAN Scientific, Dry Heat Sterilizer 9/30... - Page 10 If the regulator SAFETY is set to 0, the heater does not operate. If unexpected sound, smell or smog is generated, pull the main plug out from the wall socket and contact the technical assets of DAIHAN Scientific If irradiated or contaminated samples are placed in the chamber, the warranty is voided.
- Page 11 ※ All of the circuits, electrical or mechanical parts and configurations used in this product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through the education from DAIHAN Scientific should be allowed to repair this product.
- Page 12 If tearing occurs, discard the packaging paper and seal the product in a new sterilization packaging paper. - After sealing, check thoroughly for any sealing faults. If there is any unsealed part, use a sealer to re-seal it. DAIHAN Scientific, Dry Heat Sterilizer 12/30...
- Page 13 5. After sterilization is completed, attach sterilization the indicator tape on the sterilization log and write the log. If you find that the sterilization process has failed, repeat the above steps to sterilize the product again. DAIHAN Scientific, Dry Heat Sterilizer 13/30...
-
Page 14: Part Names
Controller Used to control product operation and view operation status ③ Door Handle Used to open the door ④ Printer Used to print out the sterilization status ⑤ <Table 3.2.1> Part Names and Descriptions DAIHAN Scientific, Dry Heat Sterilizer 14/30... - Page 15 DAIHAN-Sci.com ⑥ ⑦ ⑧ MaXterile DH-30 : 250V F 10AH MaXterile DH-50 : 250V F 10AH <Fig.3.2.4> Standard Model, " MaXterile DH -30" -30" <Fig.3.2.5> Side of " MaXterile DH Name Description Power switch Turns on/off the device power ⑥...
- Page 16 Used to switch between Reservation and Temperature ④ SUB Button Correction Modes. ⑤ Jog Dial knob Used to increase or decrease the setting value. ⑥ Knob PUSH Button Used to start or stop operation. <Table 3.2.3> Controller for "MaXterile DH-30" DAIHAN Scientific, Dry Heat Sterilizer 16/30...
-
Page 17: How To Use
No Printer . . Timer PV: 01:00 DATE: 2000/06/12 Operation Select TIME: 21:43:51 Cooling Select . . INPUT TEST NAME Knob Cooling Set Mode Cooling Set Mode AAB - 00 Not Cooling . . Cooling Select. . DAIHAN Scientific, Dry Heat Sterilizer 17/30... - Page 18 - If you press the MAIN button once during heating operation, you can check the set time and the remaining time. The timer starts once the set temperature is reached. The default setting for Auto Program 160℃ Mode is 60 minutes. DAIHAN Scientific, Dry Heat Sterilizer 18/30...
- Page 19 - Press the MAIN button once in Auto Program 160℃ Mode to switch to Auto Program 190℃ Mode. - In Auto Program 190℃ Mode, sterilization is carried out automatically at 190℃ for 3 minutes. Operation Select Auto Pro 190.0℃ <Fig 3.3.6. Auto Program 190℃ Mode screen> DAIHAN Scientific, Dry Heat Sterilizer 19/30...
- Page 20 - Once you have adjusted the time setting, press and hold the knob to save it. The screen will blink indicating that the setting is being saved. Temperature Temp SV: 150℃ interval Temp PV: 38℃ temperature <Fig 3.3.8. Manual Mode timer screen> DAIHAN Scientific, Dry Heat Sterilizer 20/30...
- Page 21 - Once you have adjusted the cooling setting, press and hold the knob to save it. The screen will blink indicating that the setting is being saved. Cooling Set Mode Not Cooling . . Cooling Set Mode Cooling Select . . <Fig 3.3.10. Cooling setting screen> DAIHAN Scientific, Dry Heat Sterilizer 21/30...
- Page 22 While sterilization proceeds, the set test name will be displayed on the printer. INPUT TEST NAME ABC-00 <Fig 3.3.12. Test name setting screen> - Press the MAIN button to exit the setting screen. DAIHAN Scientific, Dry Heat Sterilizer 22/30...
- Page 23 H Step: Printed immediately after temperature convergence is completed according to the setting. S Step: Printed immediately after sterilization maintenance is completed according to the setting. C Step: Printed immediately after cooling is completed. DAIHAN Scientific, Dry Heat Sterilizer 23/30...
- Page 24 Warns that the door is open for more Error 3 Check if the door is open. than 10 seconds. <Table 3.3.1 > ERROR Message Table DAIHAN Scientific, Dry Heat Sterilizer 24/30...
-
Page 25: How To Manage The Product
Wire Shelf, 280 x 260 mm, for 32 Lit, “IGSN032” DH.WON11050 Wire Shelf, 340 x 310 mm, for 50 Lit, “ONS050” Dry Heat Sterilizer Validation Service(IQ, OQ), with “MaXterile DH-30” DH.SteD 5003 with Validation (IQ, OQ) Service Validation Service(IQ, OQ), with “MaXterile DH-50”... -
Page 26: Maintenance And Management
10. Adjust air duct according to the needs during operation, and for storage, close the entrance to prevent pollutants from entering from the outside. DAIHAN Scientific, Dry Heat Sterilizer 26/30... - Page 27 2. For smooth air circulation inside the product, do not fill the chamber with the sample completely, but place the objects at a regular interval. 3. Do not directly touch the inner sides or floor of the product. Doing so may result in injury due to insufficient cooling. DAIHAN Scientific, Dry Heat Sterilizer 27/30...
-
Page 28: Troubleshooting
Check power source of wall socket and see what other loads are on wall circuit. breaker is flickered. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. DAIHAN Scientific, Dry Heat Sterilizer 28/30... -
Page 29: Quality Assurance
4. This certification is only for international customers. Dry Heat Sterilizer Item MaXterile DH series Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea TEL: +82-2-967-5235 FAX: +82-2-963 5231 Email: info@daihansci.co.kr www.DAIHAN-Sci.com www.ALL forLAB.com DAIHAN Scientific, Dry Heat Sterilizer 29/30... - Page 30 DAIHAN-Sci.com DAIHAN Scientific, Dry Heat Sterilizer 30/30...
