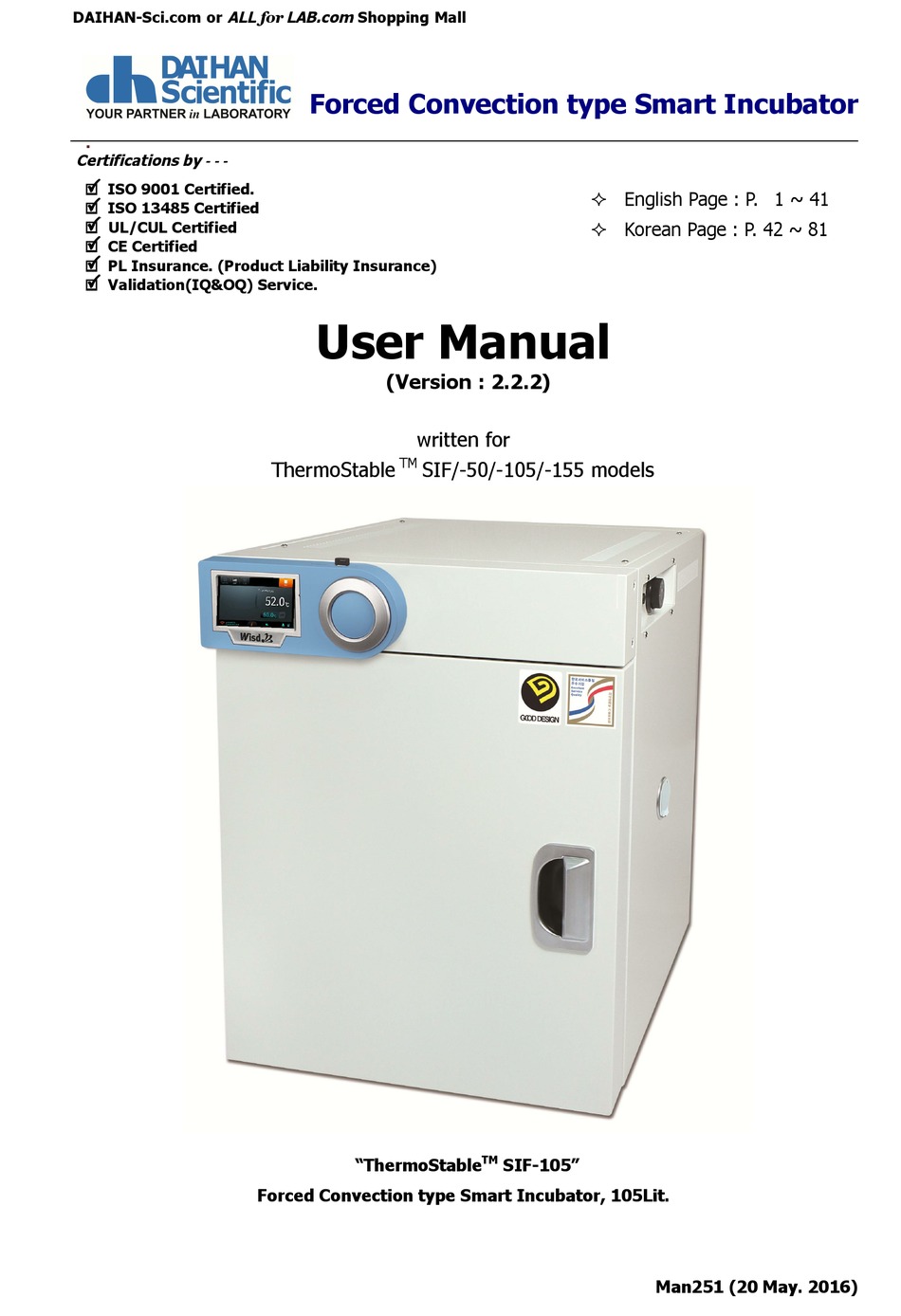

Forced Convection type Smart Incubator
User Manual
(Version : 2.2.2)
written for
TM
ThermoStable
SIF/-50/-105/-155 models
"ThermoStable
Forced Convection type Smart Incubator, 105Lit.
 English Page : P. 11 ~ 41
 Korean Page : P. 42 ~ 81
TM
SIF-105"
Man251 (20 May. 2016)
