Summary of Contents for Outdoor GreatRoom Company Edison ED-20

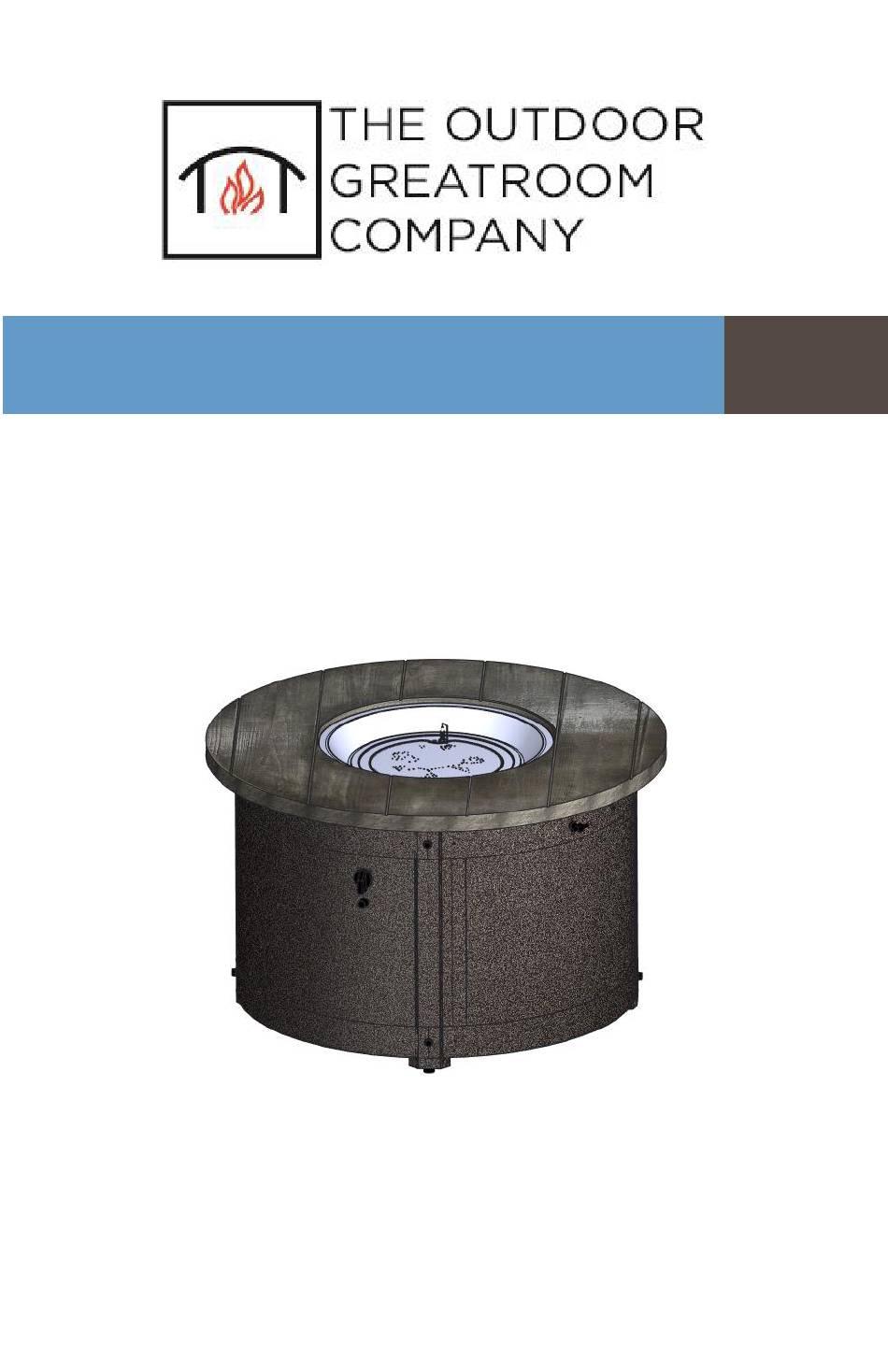

- Page 1 Edison Fire Pit Table Installation Instructions for Edison Fire Pit Table ED-20...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire instruction manual for detailed Contents instructions and important information related to the burner installation including: lighting and operating instructions, safety Required Tools…………………………….…..2 information, and proper tightening of connections with two wrenches. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 3: Do Not Attempt To Install Crystal Fire Burner Without Included With Your Fire Pit
Included with Your Fire Pit Edison Metal Base ED-20-BASE Weathered Grey Supercast Top 41-20-WG Weathered Grey Supercast Burner Cover 41-20-WG-COVER 20” Crystal Fire Plus Burner CFP20 Ø1.25” Adhesive Foam Pads (4X) 14-6904 Refer to Crystal Fire Manual for items included with crystal fire burners. -
Page 4: Assembly Instructions
Assembly Instructions Un-packaging Do not discard any packaging until assembly is complete and unit is tested. Keep all included manuals in a safe place for future reference. Warning: Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. Do not remove protective cardboard packaging until you have placed the fire pit in its desired final location. -
Page 5: Supercast Top Placement
Supercast Top Placement Caution: Top is heavy, two people are required to lift and set into place. • Remove burner cover before lifting the top to avoid damage to the cover. • Place adhesive foam pad on top of each leg. •... -
Page 6: Gas Connections
Thermocouple Installation • Refer to Crystal Fire Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. -
Page 7: Position Your Tank
Electrode Installation Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. If an orange wire is present, do not use it. The orange wire is for Direct Spark Ignition system only. Test system by pushing the button on the igniter. Consult the troubleshooting section of the Crystal Fire Plus Burner Owner’s Manual if the spark is weak, intermittent, or not present. -
Page 8: Contents Igniter Installation
Drawer Operation and Propane Tank Installation • Pull the handle attached to the access drawer to slide access drawer out from table. Pull drawer out until it stops along the slider track, as shown below. • Tilt propane tank and low into drawer from the side. ... -
Page 9: Fire Media Installation
Fire Media Installation Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA Burner Cover Installation • Carefully lay cover on top of burner. Make sure burner is cool before attempting to place cover. -
Page 10: Operating Instructions
Operating Instructions Before operating your Edison fire pit, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire Plus Manual for information on proper leak checking and other critical safety information. With the valve on the fire pit in the OFF position, open the valve on the propane tank or natural gas supply. - Page 11 IMPORTANT Please consult your Crystal Fire Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE PLUS OWNER’S MANUAL.
- Page 12 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form/ to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
