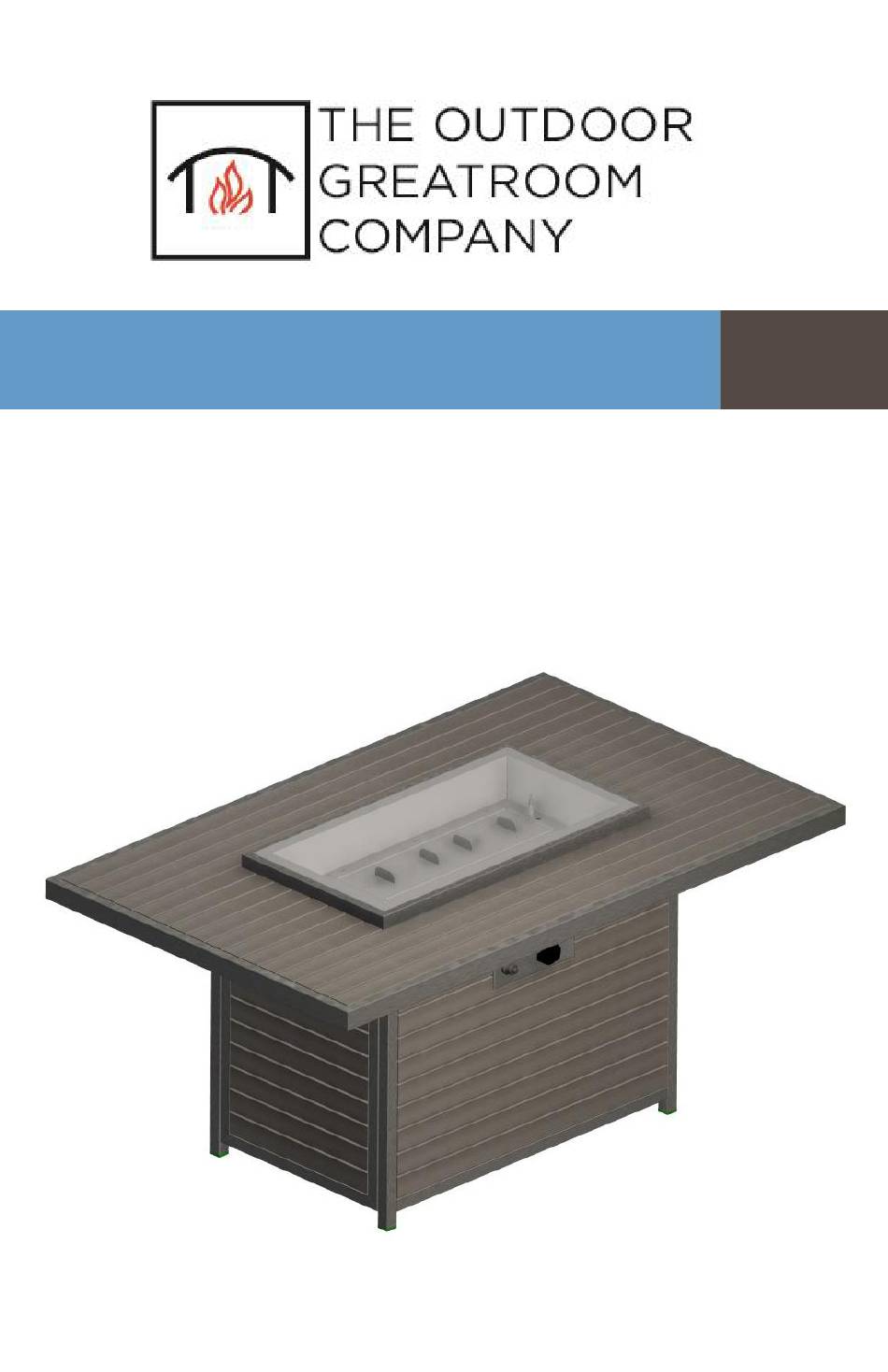

- Page 1 Brooks Fire Pit Table Installation Instructions for Brooks Fire Pit Table BRK-1224 and BRK-2424...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire instruction manual for detailed Contents instructions and important information related to the burner installation including: lighting and operating instructions, safety Required Tools…………………………….…..2 information, and proper tightening of connections with two wrenches. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 3: Do Not Attempt To Install Crystal Fire Burner Without Included With Your Fire Pit
Included with your Fire Pit Touch-Up Gas Valve Kit Paint Bottle TOUCH PAINT Bolt Caps [X4] [X1] Mounting Gas Valve [X1] screws [X2] Bolt A [X16] M6 Allen Control knob Wrench [X1] M6X20 [X1] CFP1224/CFP2424 Burner Panel B [X1] Panel A [X1] Center Support [X2] Panel C [X1] Access Door [X1]... -
Page 4: Assembly Instructions
Assembly Instructions Included with your Fire Pit INSTALL NOTE: Final tightening of bolts should be completed following installation of all panels. A. 4 Fasteners 1. Unpack all the contents from the box and remove the individual B. 4 B-Bolts packaging from each component. Remove 4 pre-installed bolts (Bolt A) from the underside of the Top. - Page 5 Attach Panel C using Bolt A (x4) as shown below. Drainage holes NOTE: Drainage holes on Panel C must be facing down towards the surface on which you will be placing your fire pit. 5. Attach a Center Support piece, 6.
-
Page 6: Gas Connections
7. Do a final tightening of the bolts you have installed in your fire pit. Then, with the help of another person, turn the table right side up. CF-SPARKER Installation Locate CF-SPARKER inside of Crystal Fire Plus burner box. ... -
Page 7: Position Your Tank
Gas Connections Read and understand your Crystal Fire Plus owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. See Crystal Fire Plus instructions for burner installation. All gas connections were completed at the factory. ... -
Page 8: Contents Igniter Installation
Thermocouple Installation • Refer to Crystal Fire Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. Electrode Installation Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. -
Page 9: Fire Media Installation
Fire Media Installation 1. Scatter all of the included Glass Beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE PLUS BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT DO NOT OPERATE CRYSTAL FIRE PLUS BURNER WITH GLASS COVER IN PLACE (NOT INCLUDED) -
Page 10: Position Your Tank
After installing igniter and making gas connections, verify that all connections are tight and that no leaks are present using a solution of soapy water or a commercially available leak-check solution. Position Your Tank (if applicable) 1. Connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH) and slide the propane tank past the dotted line to ensure the Access Door closes properly. -
Page 11: Riser Kit Installation
Riser Kit Installation 1. Screw (4) spacers into threads 1. Assemble base according to on the underside of the table Manual included with table surface 4. Secure base to spacers using 4 3. Place base, upside-down, onto screws (included with table spacers packaging) - Page 12 IMPORTANT Please consult your Crystal Fire Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
