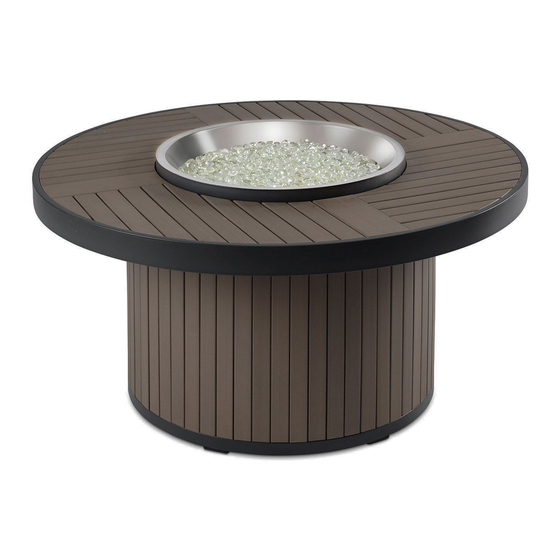

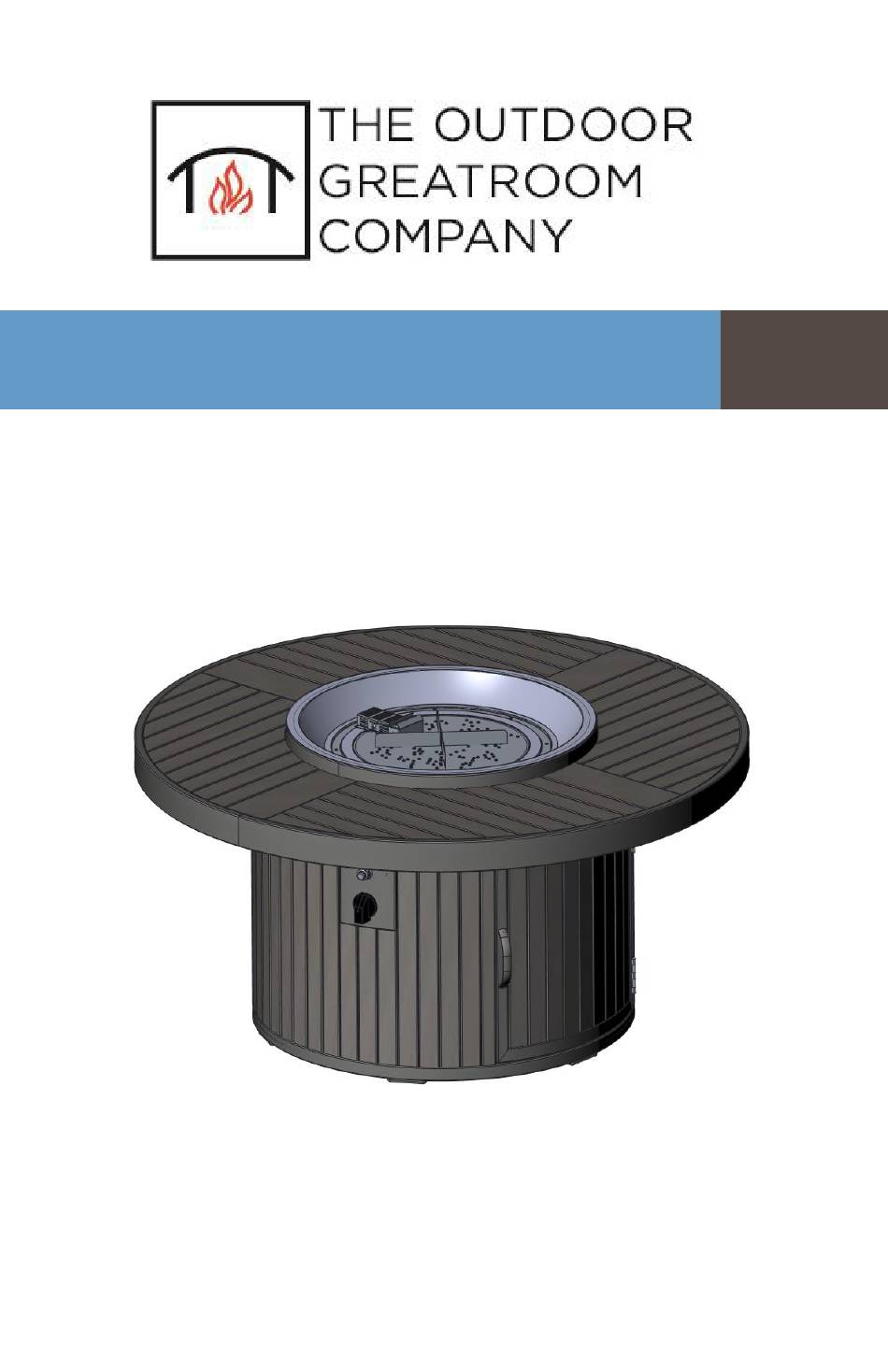

- Page 1 Brooks 20 Fire Pit Table Installation Instructions for Round Brooks Fire Pit Table BRK-20-19...
-
Page 2: Table Of Contents
IMPORTANT Contents Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety Required Tools…………………………….…..2 information, and proper tightening of connections with two wrenches. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 3: Do Not Attempt To Install Crystal Fire Burner Without Included With Your Fire Pit
Included with your Fire Pit Touch-Up CFP20 Burner Paint Bottle TOUCH PAINT Bolt Caps [X4] [X1] Bolt A [X4] Optional Riser Kit: M6 Allen Required to fit 20# propane tank Wrench [X1] under table M6X20 Top [X1] Base [X1]... -
Page 4: Assembly Instructions
Assembly Instructions Included with your Fire Pit INSTALL NOTE: Final tightening of bolts should be completed following installation of table. A. 4 Fasteners 1. Unpack all the contents from the box and remove the individual B. 4 B-Bolts packaging from each component. Remove 4 pre-installed bolts (Bolt A) from the underside of the Top. -
Page 5: Cf-Sparker Installation
3. Do a final tightening of the bolts you have installed in your fire pit. Then, with the help of another person, turn the table right side up. CF-SPARKER Installation Locate CF-SPARKER inside of Crystal Fire Plus burner box. ... -
Page 6: Gas Connections
Gas Connections Read and understand your Crystal Fire Plus owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. See Crystal Fire Plus instructions for burner installation. All gas connections were completed at the factory. ... -
Page 7: Position Your Tank
Thermocouple Installation • Refer to Crystal Fire Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. TIGHTEN SECURELY WITH A WRENCH Electrode Installation Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. -
Page 8: Igniter Installation
Glass Installation 1. Scatter all of the included Glass Beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT DO NOT OPERATE CRYSTAL FIRE BURNER WITH GLASS COVER IN PLACE (NOT INCLUDED) -
Page 9: Positioning Tank
After installing igniter and making gas connections, verify that all connections are tight and that no leaks are present using a solution of soapy water or a commercially available leak-check solution. Position Your Tank (if applicable) 1. Open the hinged Access Door on side of the base. Connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH) and slide the propane tank into the base and ensure the Access Door closes properly. -
Page 10: Riser Kit Installation
Riser Kit Installation 1. Combine spacers by screwing (4) spacers into (4) remaining spacers. Screw (4) spacer assembly into threads 2. Place base, upside-down, onto spacers on the underside of the table surface 3. Secure base to spacers using 4 screws (included with table packaging) - Page 11 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
- Page 12 Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit https://www.outdoorrooms.com/product-registration to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com...
