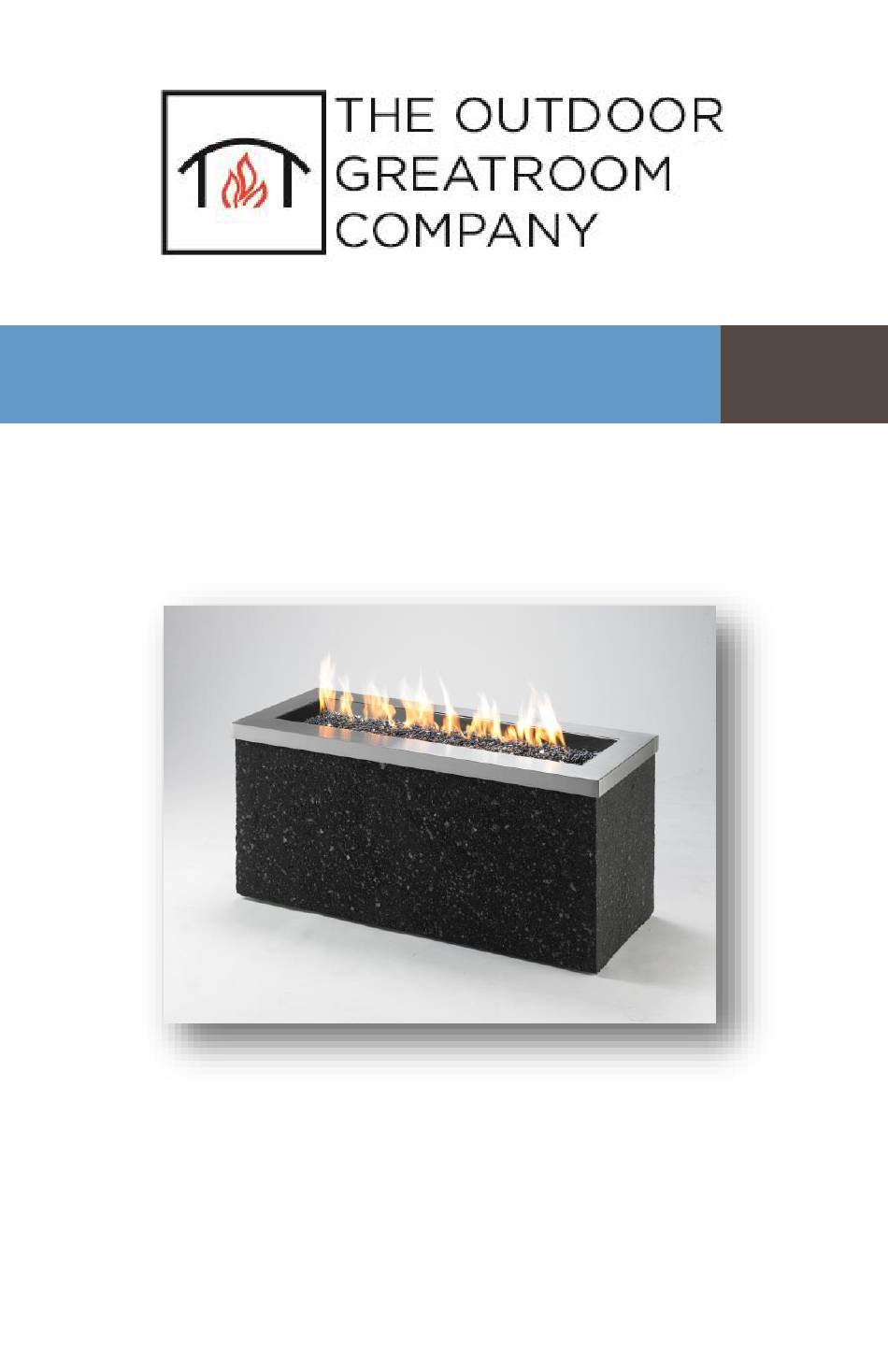

- Page 1 Key Largo Fire Pit Installation Instructions for Key Largo, all base materials and top styles.
- Page 2 Contents Required Tools…………………………….…..2 Assembly Instructions……………...………3 Igniter Installation …………………….…….4 Gas Connection….…………….……………...5 Locating Propane tank………………………5 Gas Line Location………………………………6 Finishing Touches………………………….….6 Warranty Information………………………8 Required Tools Utility Knife To cut and remove packaging 2 Open Ended Wrenches To make gas connections Leather Gloves To protect hands from rough edges found on the coffee table.
- Page 3 Assembly Instructions 1. Remove access door from packaging 2. Remove all components from packaging. 3. Move the base without door to desired location and set into place. 4. When locating your coffee table, refer to the Crystal Fire manual and maintain clearance to combustibles. 5.
- Page 4 Igniter Installation 1. Sparker must be installed before burner valve. 2. Unscrew sparker cap and hex nut. Install as shown below. 3. To properly install ignition system, a spark and ground wire need to be attached to the igniter box. •...
- Page 5 Gas Connection Read and understand your Crystal Fire Plus owner’s manual before beginning burner hookups or using the device. 1. See Crystal Fire Plus instructions for burner installation. • All Gas connections were completed at the factory. 2. Check all connections for leaks. If needed, tighten connection with 2 wrenches and re-check for leaks.
- Page 6 NOTE: Over time the bearings in the door glides may require re-greasing. Any spray lubricant, such as WD-40, may be used to lubricate drawer glides. Perform annually or on an as needed basis to maintain smooth operation. Gas Line Location If the fire pit is to be supplied by natural gas or a hard piped propane system, locate your plumbing outside of the area of the tank drawer.
- Page 7 IMPORTANT Please consult your Crystal Fire Plus instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CFP1242 or CFP1224 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
- Page 8 Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form to register your product. © 2014 The Outdoor GreatRoom Company 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com...
