Summary of Contents for Outdoor GreatRoom Company BC-20-AB

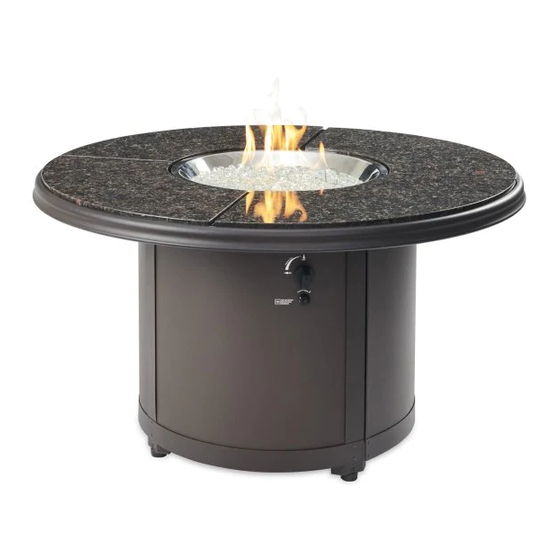

- Page 1 Beacon Fire Table Installation Instructions for Beacon Fire Table BC-20-AB, BC-20-BG, BC-20-MNB, BC-20-WO BD-20-BG, BD-20-MNB, BD-20-WO...
-
Page 2: Table Of Contents
IMPORTANT Contents Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety Required Tools…………………………….…..2 information, and proper tightening of connections with two wrenches. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 3: Do Not Attempt To Install Crystal Fire Burner Without Included With Your Fire Pit
Included with Your Fire Table (Supercast Top: BC-20-MNB, BD-20-MNB, BC-20-WO, BD-20-WO) Beacon Metal Base (Control Valve Installed) Marbleized Noche Supercast White Onyx Supercast Top Adhesive Foam Pads (X4) Ø20” Crystal Fire Burner CF-20 Refer to Crystal Fire Manual for items included with crystal fire burners. -
Page 4: Included With Your Fire Pit (Granite)
Included with Your Fire Table (Granite Top: BC-20-AB, BC-20-BG, BD-20-BG) Beacon Metal Base (Control Valve Installed) Aluminum Frame and Granite (4 pcs.) Attachment bracket for aluminum frame (X4) (for granite top installations only) Self-Drilling Screws (X12) Ø20” Crystal Fire Burner CF-20 Refer to Crystal Fire Manual for items included with crystal fire burners. -
Page 5: Assembly Instructions
Assembly Instructions Un-packaging Do not discard any packaging until assembly is complete and unit is tested. Keep all included manuals in a safe place for future reference. Warning: Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. Do not remove protective cardboard packaging until you have placed the fire pit in its desired final location. -
Page 6: Contents Gas Connections
4.a. Supercast Top Placement Caution: Top is heavy, two people are required to lift and set into place. Refer to this step for grey table bases with Supercast Tops: (BC-20-WO, BD-20-WO) • Remove burner cover before lifting the top to avoid damage to the cover. -
Page 7: Position Your Tank
4.b. Granite Top Installation Refer to this step for tables with granite tops: (BC-20-AB, BC-20-BG, BD-20-BG) • Locate Top Attachment Brackets (4) and self-drilling screws (12) included in the manual bag. • Screw one attachment bracket to the top of each leg, oriented so the open channel is towards the center of the base. -
Page 8: Igniter Installation
Gas Connections Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. • Ensure valve is in the OFF position before making any gas connections. •... -
Page 9: Burner Installation
Burner Installation IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 10: Propane Tank Installation
Drawer Operation and Propane Tank Installation • Pull the handle attached to the access drawer to slide access drawer out from table. Pull drawer out until it stops along the slider track, as shown below. • Tilt propane tank and lower into drawer from the side. ... -
Page 11: Fire Media Installation
Fire Media Installation Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA Burner Cover Installation DO NOT OPERATE CRYSTAL FIRE BURNER WITH BURNER COVER IN PLACE •... -
Page 12: Operating Instructions
Operating Instructions Before operating your fire table, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire Manual for information on proper leak checking and other critical safety information. With the valve on the fire pit in the OFF position, open the valve on the propane tank or natural gas supply. - Page 13 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
- Page 16 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form/ to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
