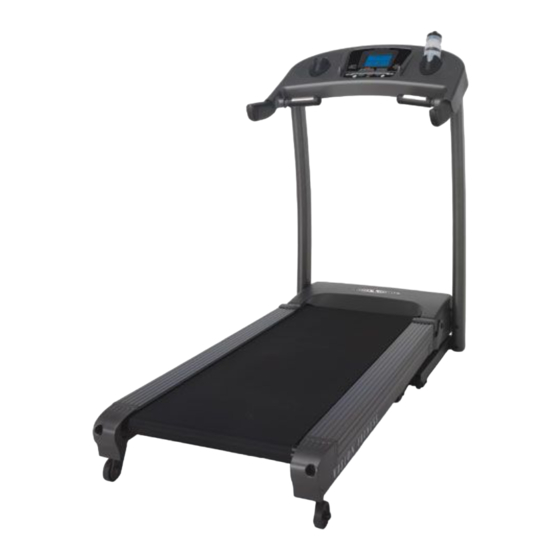

Vision Fitness T1450 Engineering Manual
Hide thumbs Also See for T1450:

Advertisement

Quick Links

T1450
ENGINEERING GUIDE
S T A N D A R D C O N S O L E F O R :
(TM239)
1
TREADMILL.ENG.TM239.REV1
Date of last revision: 10.06

Advertisement

loading
Need help?

Need help?

Do you have a question about the T1450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision Fitness T1450

  • Page 1 T1450 ENGINEERING GUIDE S T A N D A R D C O N S O L E F O R : (TM239) TREADMILL.ENG.TM239.REV1 Date of last revision: 10.06...
  • Page 2 T1450 (TM239): Engineering Guide ENGINEERING MODE The user must hold down for 5 seconds after powering up the treadmill to “ELEVATION UP” “SPEED DOWN” enter the engineering menus. The P6 menu appears with the software version in the upper window. Press “STOP”...
  • Page 3: Quick Keys

    T1450 (TM239): Engineering Guide ENG2: DISPLAY TEST MODE Function ENTER All LEDs light up SPEED UP Turns on individual LEDs in all the displays in a clockwise motion and the dots in the dot matrix move up in different colors...
  • Page 4: Display Description

    T1450 (TM239): Engineering Guide ENG 5: SPEED SENSOR MODE The PWM value is displayed in the middle window. The Elevation A/D is displayed in the left window. The Dot Matrix displays a flashing row of lights between 2 constant rows of lights. As the arrow is pressed the “SPEED UP”...
  • Page 5 T1450 (TM239): Engineering Guide USER ENGINEERING MODE Your treadmill offers a User Engineering Mode that can access certain data and help to troubleshoot your treadmill. User Engineering Mode is designed for you to access functions that will not affect important treadmill settings. To access this...
  • Page 6: Auto Calibration

    T1450 (TM239): Engineering Guide AUTO-CALIBRATION DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION! Auto-calibration is not represented by a Px designation. "AUTO" appears in the center window. When you enter the function, "AUTO" begins flashing. To begin auto-calibration, press .
