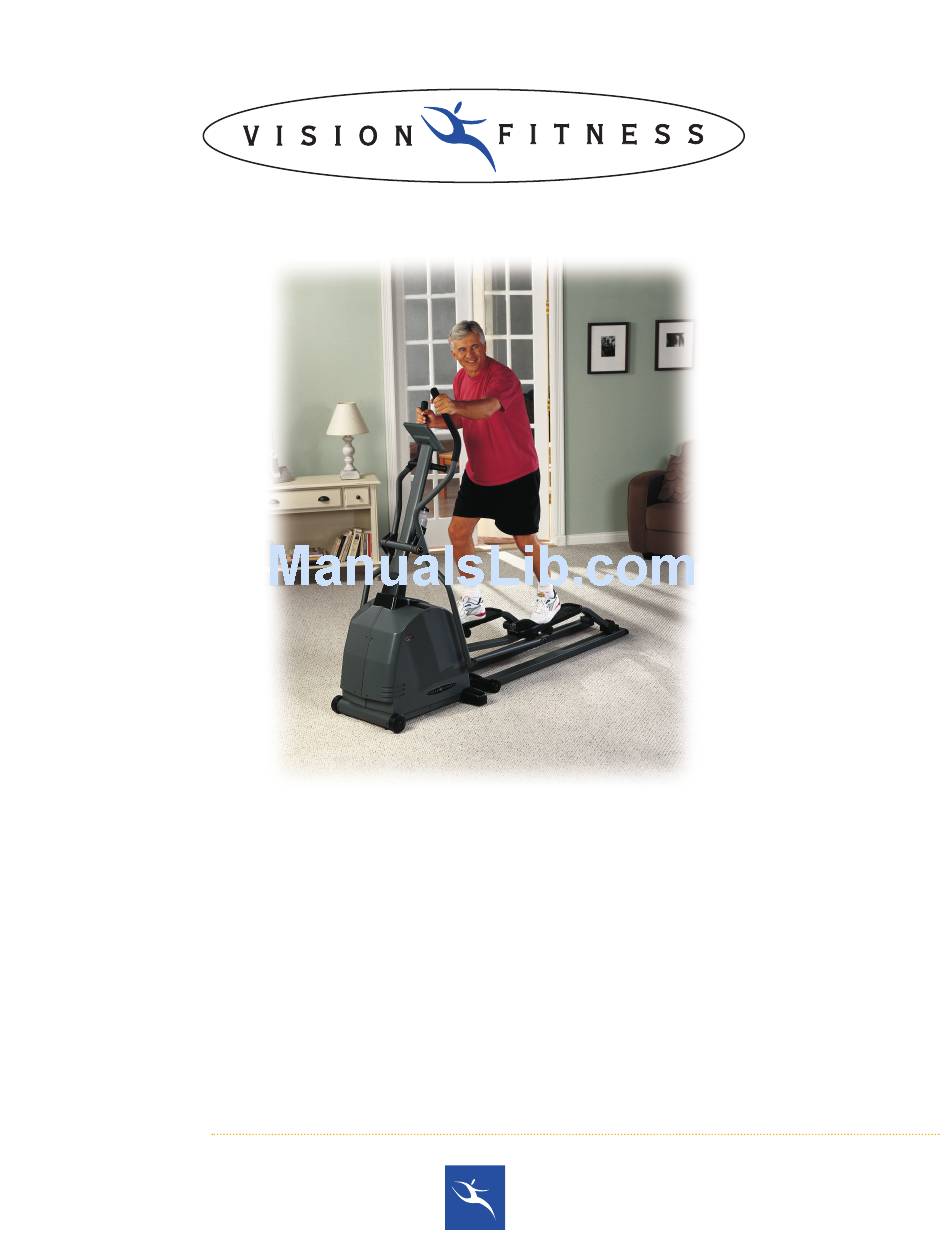

- Page 1 A s s e m b l y G u i d e X 6 0 0 0 D A & X 6 2 0 0 H R T / D A D U A L - A C T I O N E L L I P T I C A L T R A I N E R S...
- Page 2 X 6 0 0 0 D A dual-action elliptical trainers To avoid possible damage to this Elliptical Trainer, please follow these assembly steps in the correct order. Before proceeding though, find your new Elliptical Trainer’s serial number, located on the front foot axle tube, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 Rear Folding Axle, Qty: 1 • Stabilizer w/ Rubber Cover, Qty: 2 Toe Pieces, Qty: 2 • Rear Wheels, Qty: 2 Tension Control Knob, Qty: 1 (Model X6000DA only) Console, Qty: 1 • Power Supply, Qty: 1 (X6200HRT/DA only) • 13 Nut Cap, Qty: 2 •...
- Page 4 M16 Washer M8 Washer M5 x 25 Bolt Quantity: 2 Quantity: 2 Quantity: 1 M8 x 60 Bolt (X6000DA only) Quantity: 2 BLACK BAG M8 x 25 Washer M16 Wavy Washer Quantity: 2 Quantity: 2 M8 x 36 Bolt Quantity: 2...
- Page 5 ORANGE BAG STEP • Install the left and right stabilizers with the four bolts (M8 x 16 Blue 5 Allen wrench. • Cover both stabilizers with the included rubber covers. • Insert the rear folding axle shaft into the rear tube. BLUE BAG STEP •...
- Page 6 (M8 x 80 ) and four M8 NyLock nuts. Tighten with the 13 wrench. • X6000DA only: Install the foot toe pieces to the front pedal arms with two bolts (M8 x 45 ) using the Blue Allen wrench.
- Page 7 STEP GREEN BAG STEP • X6000DA only: Unfold the RPM sensor wire, located in the frame console mast bracket. Remove any kinks. • All models: Slide the rubber console mast cover onto the bottom of console X6000DA mast, and slide it up as far as it will go.
- Page 8 621-D East Lake Street • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2001 Vision Fitness. All Rights Reserved. 4.01 Part #Z60EP08-AG1801PRD AG18.01PRD U.S. Patent No. 6,190,289 REV3 ), using the Blue 5 ) through the side, ) from the front.
